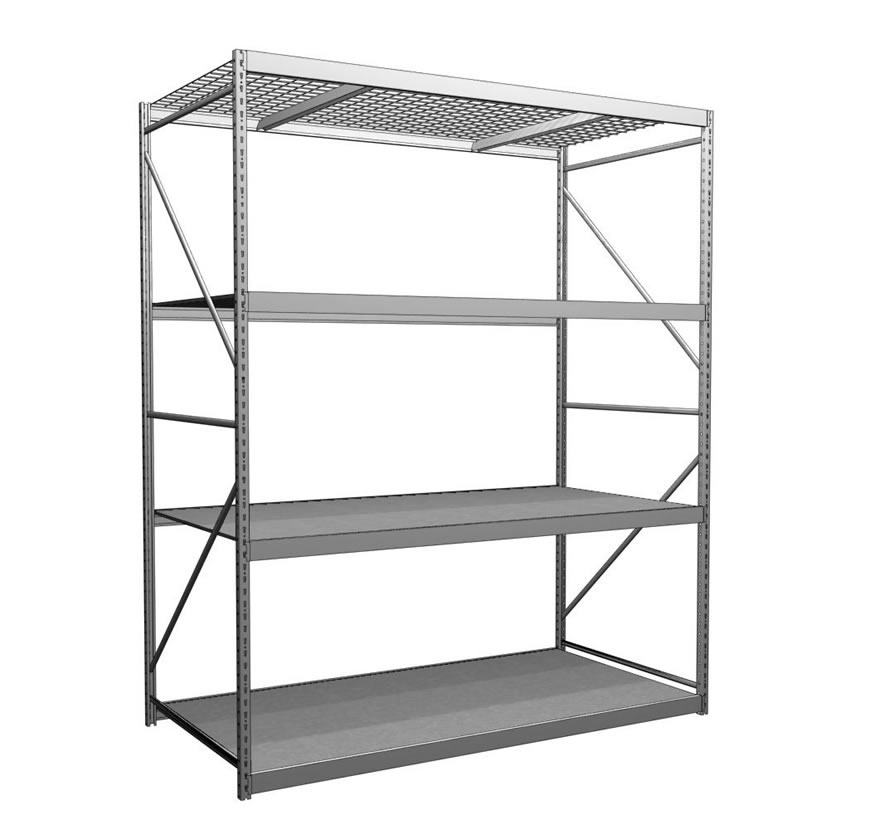

Widespan

Part Number: WS

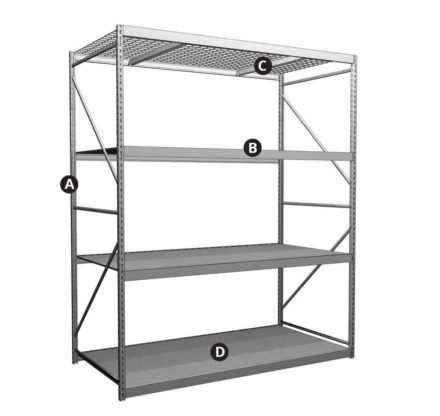

Widespan includes four basic components: Uprite Frames, Beams, Shelf Supports, and Shelves. Widespan features a clear opening between posts and Shelves adjustable 2″ on center.





Widespan

Part Number: WS

Widespan includes four basic components: Uprite Frames, Beams, Shelf Supports, and Shelves. Widespan features a clear opening between posts and Shelves adjustable 2″ on center.





Product Details

  • Shelves adjustable 2″ on center
  • No crossbracing required
  • Welded Uprite Frame



SIZE INFORMATION

  • Clear opening between posts: Nominal shelf width plus 1/2”
  • Overall length: (Nominal section width plus 1/2”) times the number of sections, plus 1 3/4” for each post in the run
  • Overall depth: 2 1/4” greater than the nominal depth of the unit
  • Vertical clearance between shelves with a Regular Duty Beam: 3 1/4” less than the center-to-center shelf spacing
  • Vertical clearance between shelves with a Heavy Duty Beam: 4 3/4” less than the center-to-center shelf spacing



COMPONENTS

  • Uprite Frames
  • Beams
  • Shelf Supports
  • Shelves



WARNING: Widespan Beams are intended to be used with Widespan Shelf Supports. If Shelf Supports are not installed then the beams MUST utilize one of two Widespan Multi-Function Beam Locking Clip, WS1291 or WS9111, depending on the beam location. Failure to do this could allow the Beam to become disengaged causing product damage or personal injury.



PALLET LOADED WIDESPAN CONSIDERATIONS

  • Forklifts must NOT be used, only a hand loader/stacker is safe to use
  • Order “RE” Reinforced Uprite Frames when planning to use hand loader/stacker
  • Beam locking hardware required when using hand loader/stacker
  • Shelf supports are required for all applications to stabilize beam. If not used then beam locking clip is required
  • Aisle side Uprite posts must be anchored to floor
  • Total weight of palletized goods MUST NOT exceed one half of evenly distributed Beam capacity
  • Allow at least 3” clearance between pallet and Uprite Frame, at least 4” clearance between pallets
  • Pallets should overhang both Beams by at least 2”, otherwise Particleboard or Wiregrid Shelves must be used

How to Order

Widespan One-Piece Uprite Frame

Product Details

  • One-piece Uprite Frames for units 48” – 120”
  • Uprite post slotted on face, allows shelf adjustment 2” on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6” on center on face of Uprite also aid beam placement
  • Top Caps included on each Uprite
  • One Frame required for each section, plus one at end of each run
  • To provide increased protection under harsh shipping conditions add “SPC” to part number for additional packaging
  • Floor Anchors, Floor Protectors, or Back to Back Connectors may be ordered separately
  • Evenly distributed load of 10,000 lbs per Uprite Frame at 48″ max. Beam spacing, vertically



REINFORCED UPRITE FRAME

  • “RE” Frame available in 72” – 120”H and all depths (lower Frame only on 132” – 192”)
  • For use with hand loader/stacker
  • Reduces chance of Frame damage
  • Channel welded inside each post in lower 48”
  • Welded foot plate for anchoring, 1/2” hole



widespan reinforced uprite frame

Save

View product details

Product Options and Numbers

Example Part #:   WSU   18    048   RE   SPC   PLT



Widespan Uprite : WSU

Depth: 18”, 24”, 30”, 36”, 42”, 48”

Height: 048”, 060”, 072”, 084”, 096”, 120”

Reinforced Uprite for Hand Loader/ Stacker Applications: RE, Leave blank if not applicable

Additional Packaging: SPC, Leave blank if not applicable

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT -Platinum

Widespan Two-Piece Uprite Frame

Product Details

  • Two-piece Uprite Frames for units over 120” (Uprite Connectors included)
  • Uprite post slotted on face, allows shelf adjustment 2” on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6” on center on face of Uprite also aid beam placement
  • Top Caps included on each Uprite
  • One Frame required for each section, plus one at end of each run
  • To provide increased protection under harsh shipping conditions add “SPC” to part number for additional packaging
  • Floor Anchors, Floor Protectors, or Back to Back Connectors may be ordered separately
  • Evenly distributed load of 10,000 lbs per Uprite Frame at 48″ max. Beam spacing, vertically



REINFORCED UPRITE FRAME

  • “RE” Frame available in 72” – 120”H and all depths (lower Frame only on 132” – 192”)
  • For use with hand loader/stacker
  • Reduces chance of Frame damage
  • Channel welded inside each post in lower 48”
  • Welded foot plate for anchoring, 1/2” hole



widespan reinforced uprite frame

Save

View product details

Product Options and Numbers

Example Part #:   WSU   18    144   RE   SPC   U   PLT



Widespan Uprite : WSU

Depth: 18”, 24”, 30”, 36”, 42”, 48”

Height: 132”, 144”, 156”, 168”, 192”

Reinforced Uprite for Hand Loader/ Stacker Applications: RE, Leave blank if not applicable

Additional Packaging: SPC, Leave blank if not applicable

Unit: U

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT -Platinum

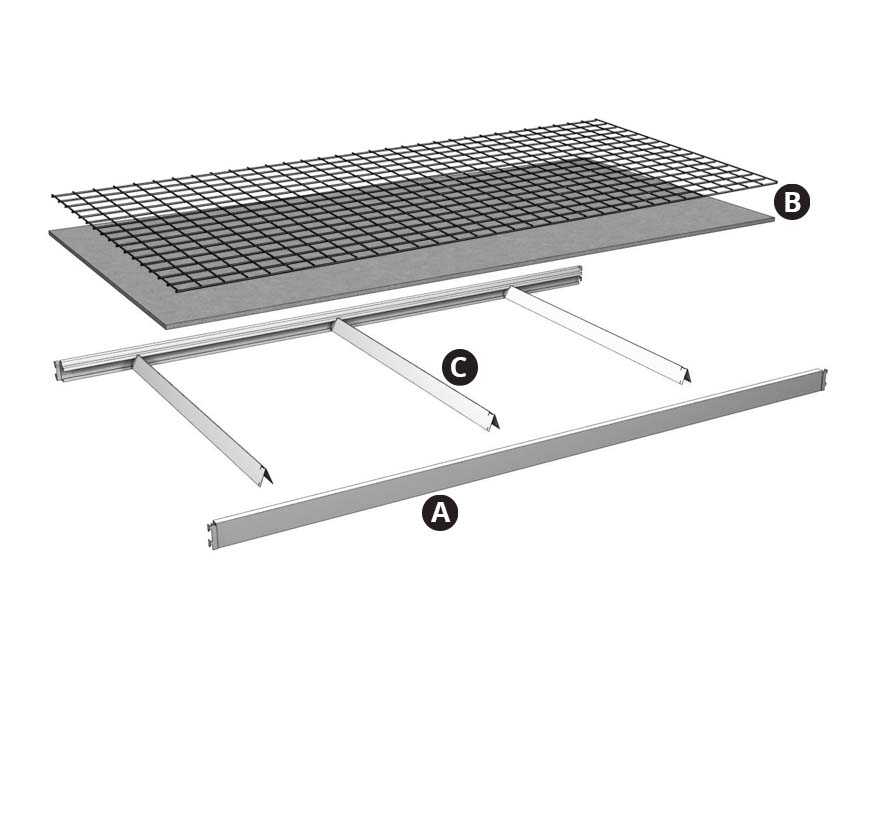

Widespan Shelf Assembly

Product Details

  • Available in two types: Wire Grid and Particleboard
  • Available in Regular and Heavy Duty
  • Load capacity per pair of Beams with appropriate Shelf Supports Evenly distributed load:
    • Regular Duty: 1,600-3,000 lbs
    • Heavy Duty: 3,000 lbs max



INCLUDES

  • 2 Widespan Beams
  • 1 Widespan Shelf: Particleboard or Wire Grid
  • Number of Shelf Supports required for customer’s application (See load chart)
 WIDESPAN SHELF CAPACITY (Uniformly Distributed Load, lbs)
Section Depth  Section Width
(Beam Length)
# of Regular Duty Shelf Supports With Regular Duty Beams # of Heavy Duty Shelf Supports with Heavy Duty Beams
2 3 4
Up to 36″ D     48″ 1,600 2,400 3,000 3,000
60″ 1,600 2,400 2,400 3,000
72″ 1,600 2,000 2,400 3,000
84″ 1,600 1,800 2,000 3,000
96″ 1,600 1,600 1,600 3,000
42″ D

48″ 1,370 2,055 2,740 3,000
60″ 1,370 2,055 2,400 3,000
72″ 1,370 2,000 2,200 3,000
84″ 1,370 1,800 1,600 3,000
96″ 1,370 1,600 1,600 3,000
Up to 48″ D
48″ 1,200 1,800 2,400 3,000
60″ 1,200 1,800 2,400 3,000
72″ 1,200 1,800 2,000 3,000
84″ 1,200 1,700 1,800 3,000
96″ 1,200 1,600 1,600 3,000



View product details

Product Options and Numbers

Example Part #:   WS   SA   24   96   2   RD   PLT   PLT   N/A



Widespan Shelf Assembly: WS

Shelf Style: SA, WA

Section Depth: 18″, 24”, 30”, 36”, 42”, 48”

Section Width: 48″, 60”, 72”, 84”, 96

Number of Shelf Supports:  2, 3, 4 (see below for load chart)

Beam & Shelf Support Style:  RD, HD

Beam Standard Finish:  PLT, Optional Catalog Colors

Shelf Support Standard Finish:  PLT, Optional Catalog Colors

Shelf Standard Finish:  N/A, S04, ZNC

Suffix Key
SA – Particleboard Shelf
WA – Wire Grid Shelf
RD – Regular Duty
HD – Heavy Duty
PLT – Platinum
N/A – No Finish
S04 – Seal Coated
ZNC – Zinc Wire Grid

Widespan Shelf Support

Product Details

  • Available in both Heavy Duty and Regular Duty
  • Rotates into place inside Beam body
  • Number of Supports required varies based on required load
View product details

Product Options and Numbers

Example Part #:   WSSS   18    –   PLT



Widespan Shelf Support : WSSS

Uprite Frame Depth: 18”, 24”, 30”, 36”, 42”, 48”

Optional Heavy Duty Beam: HD, Leave blank if not applicable

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
HD -Heavy Duty Beam
PLT -Platinum

Widespan Beam

Product Details

  • Available in both Heavy Duty and Regular Duty
  • Integral Beam connectors
  • Tilt-in design, no fasteners or locking clips required when used with Shelf Support (WSSS)
  • Minimum of four beams required per section: one each top, bottom, front and back of section
  • Requires Shelf Supports to tie Beams together
  • Minimum one Shelf Support on 48”W and 60”W Beams
  • Minimum two on 72”W, 84”W and 96”W, or must use Locking Clips

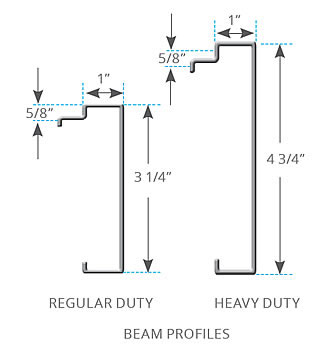

Widespan Beam Profiles

Save

View product details

Product Options and Numbers

Example Part #:   WSB   48   –   PLT



Widespan Beam: WSB

Section Width: 48”, 60”, 72”, 84”, 96”

Optional Heavy Duty Beam: HD, Leave blank if not applicable

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
HD -Heavy Duty Beam
PLT -Platinum
