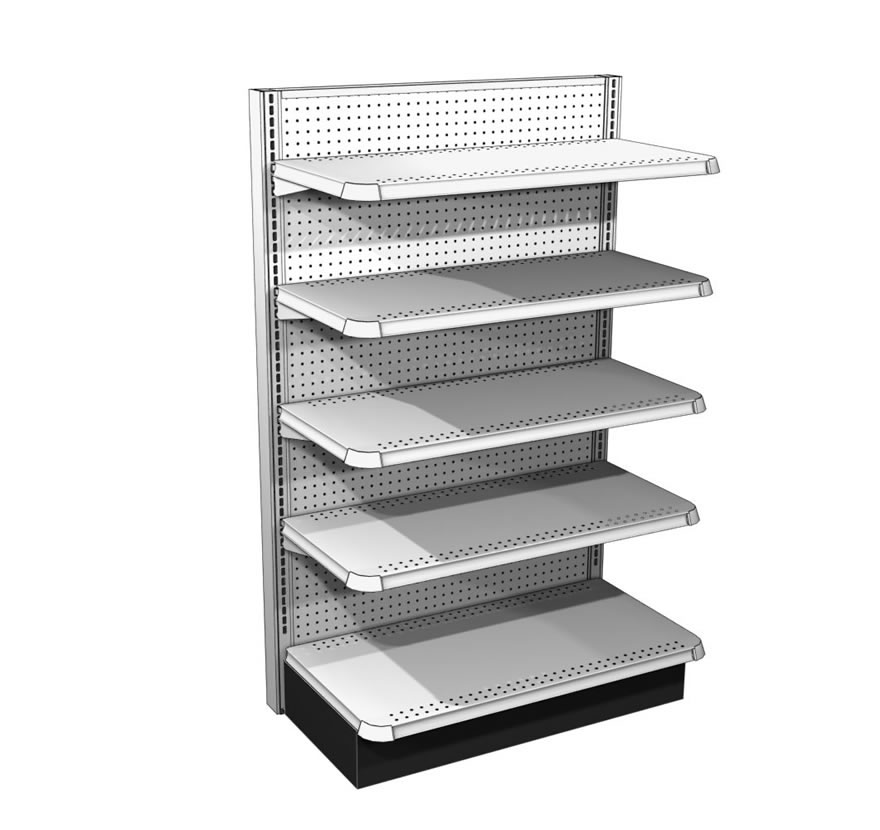

Contoured End Display

Contoured End Display is a freestanding end display similar to the Wall End Display. It features Shelves and Decks with rounded edges, giving your display a softer look.

Contoured End Display

Contoured End Display is a freestanding end display similar to the Wall End Display. It features Shelves and Decks with rounded edges, giving your display a softer look.

Gondola End Caps Contoured End Display Lozier
  • Gondola End Caps Contoured End Display Lozier
  • Gondola End Caps Contoured End Display Gallery11 Lozier
  • Gondola End Caps Contoured End Display Gallery Lozier

Roll over image to zoom in.

Contact to Order
Download PDF Print Email Brochure Fixture CAD Blocks

Product Details

Load Rating

  • 600 lbs evenly distributed per deck (13″ – 19″ D)
  • 800 lbs evenly distributed per deck (22 – 25″ D)



  • Same as Wall End Display except includes Contoured End Decks and Contoured Base End Trims.
  • Contoured Shelves also available (ordered separately)
  • Order Gap Filler to close off the bottom rear when unit is wider than the island width.
  • Actual width of unit equals nominal width plus 2″
  • Accepts Accessory Panels and connectors
  • Stabilizers required and ordered separately for Non-Compliant height to depth Contoured End Displays (See Product Safety information for Height to Depth Chart)
  • Contour decks and shelves with only one round corner available for two section displays.

How to Order

QTY.
A. Uprite 2
B. Base Bracket (Standard or Heavy Duty) 2
C. Contoured End Deck 1
D. Closed Base Front 1
E. Top Rail 1
F. Center Rail (2 per section 78H-120H) 1 or 2
G. Bottom Rail 1
H. Splicer Rail (Sections 78H-120H) Use 2 top rails for splicer on 2′ and 30″ wide sections. 1
I. Back Material (1 or 2 per side) See Back Chart
J. Contoured Base End Trim (Pair) 1
K. Uprite End Trim 2
Contoured End Displays

ORDERING INSTRUCTIONS FOR CONTOURED END DISPLAYS



QTY.
A. Uprite (Standard or Heavy Duty) 2
B. Base Bracket (06 or Low Base Height)) 2
C. Closed Base Front (06 or Low Base Height) 1
D. Contoured Base End Trim (06 or low base height (Pair-LH/RH) 1
E. Contour End Deck 1
F. Hardboard Back and Rail Set 2-Sided 1
G. Uprite End Trim 2
    CED SIZES
Depth  Height
48″ 54″ 60″ 66″ 72″ 78″ 84″ 90″ 96″
13″ N/A N/A N/A N/A N/A N/A N/A
16″
 N/A N/A N/A N/A
19″ N/A
22″
25″

Uprites

Product Details

  • 3/16” thick face channel
  • 1” slotted on center for maximum flexibility
  • Use for Wall and Island Sections
  • Steel welded construction
  • Includes side flanges to retain Back material, leveling leg for uneven floors
  • Includes Top Caps on Uprites 36”-66”H



uprite diagram

View product details

Product Options and Numbers

Example Part #:   U   42    PLT



Uprite: U, UH

U Height: 30”, 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

UH Height: 72”, 78”, 84”, 90”, 96”, 108”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
U – Uprite
UH – Heavy Duty Uprite

Spring Locking Base Bracket

Product Details

  • Features 2” conduit hole for greater electrical access
  • Includes leveling legs for uneven flooring
  • Install straight in using integral spring latch
  • 28″ deep and 31″ deep base brackets are only Heavy Duty.  There are no Standard Duty 28″ deep or 31″ deep base brackets.



NOTE
Actual Bracket length is 3″ less than nominal Deck depth. Order CHR Base Brackets when using Open Base Fronts. (This is done automatically when section/end part numbers are ordered with OBF’s.)

View product details

Product Options and Numbers

Example Part #:   BB  19   06   S   PTD



Base Bracket: BB (Standard Duty), BBH (Heavy Duty)

Deck Depth BB: 13″, 16″, 19”, 22”, 25”, 28”, 31”

Deck Depth BBH: 16″, 19”, 22”, 25”

Base Height: 06, LB

Spring Locking Base Bracket: S

Standard Finish: PTD, Optional CHR

* BB28 and BB31 are rated for Heavy Duty

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
PTD – Painted Random
CHR – Charcoal Black

Closed Base Front

Product Details

  • 3’ and 4’ Fronts have an electrical knockout
  • Snaps in place beneath Deck to cover gap between Deck and floor
  • Fits flush with floor regardless of leveling adjustments
View product details

Product Options and Numbers

Example Part #:   CBF   4   06   CHR



Close Base Front: CBF

Section Width: 2’, 30”, 3’, 4’

Base Height: 06, LB

Standard Finish: CHR

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
CHR – Charcoal Black

Contoured End Decks

Product Details

  • Features rounded corners
  • 1.235″ Tag Molding formed on three sides
  • Optional Aluminum Tag Molding wraps continuously around all three sides (matches M13 profile)
  • Will not accommodate Wire Fronts
  • Evenly distributed load of 600 lbs per Deck
  • Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)



View product details

Product Options and Numbers

Example Part #:   CED   4   19   MP  34K

CED: Contour End Deck

Round Corner: L (Left hand), R (Right hand) Blank (Both)

Width: 2′, 30″, 3′, 4′

Depth: 13″, 16″, 19″, 22″, 25″

Aluminum Tag Molding: MP Painted, MS Satin, N No molding

Standard Body Finish: PLT Optional Catalog Colors

Standard Molding Finish: Painted PLT Optional Catalog Colors, Satin SAT

PLT Body PLT Molding = Multiple Finish Code 34K. Contact Product Management for other Painted Molding Multiple Finish Codes

Suffix Key
MS – Satin Molding
MP – Painted Molding
N – No Molding
PLT – Platinum
SAT – Satin
34K – PLT Body PLT Molding

Contoured End Shelves

Product Details

  • Features rounded corners
  • 1.235″ Tag Molding formed on three sides
  • Optional Aluminum Tag Molding wraps continuously around all three sides (matches M13 profile)
  • Will not accommodate Wire Fronts
  • Evenly distributed load of 300 lbs per Shelf
  • Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)



View product details

Product Options and Numbers

Example Part #:   CE   3   22   N  PLT

CED: Contour End Shelf

Round Corner: L (Left hand), R (Right hand) Blank (Both)

Width: 2′, 30″, 3′, 4′

Depth: 10″, 13″, 15″, 16″, 17″, 19″, 22″

Aluminum Tag Molding: MP Painted, MS Satin, N No molding

Standard Body Finish: PLT Optional Catalog Colors

Standard Molding Finish: Painted PLT Optional Catalog Colors, Satin SAT

Suffix Key
MS – Satin Molding
N – No Molding
MP – Painted Molding
PLT – Platinum

Hardboard Back and Rail Set 2-Sided

Product Details

  • Set includes all rails and backs for a typical Island Section using hardboard backs.
  • 1 hardboard back per side up to 72″H
  • 2 hardboard backs per side 78″H – 120″H (See Back Chart for sizes)
View product details

Product Options and Numbers

INCLUDES:

A.  Top Rail

B.  Center Rail(s)

C.  Splicer Rail (if applicable) (Use 2 top rails for splicer on 2′ and 30″ wide sections)

D.  Bottom Rail

E.  Hardboard Backs

Hardboard Backs - Island - 2-Piece - with Letters

HARDBOARD BACK AND RAIL SET 2-SIDED

Width: 24″, 30″. 36″, 48″

Uprite Height: 36″, 42″, 48″, 54″, 60″, 66″, 72″, 78″, 84″, 90″, 96″, 102″, 108″, 114″, 120″

Back Finish Type Side A:  Painted, Unpainted

Back Style Side A:  Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish Type Side B:  Painted, Unpainted

Back Style Side B:  Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish Side B:  Martek or Peg PLT  Optional Catalog Colors, Martek Econo  N/A, Peg Woodgrain or Woodgrain  IA1

Rail Finish: PLT Optional Catalog Colors



Suffix Key
N/A – Unfinished
PLT – Platinum
IA1 – Oak Melamine

Uprite and Extension Uprite End Trim

Product Details

  • One-piece trim (Two-pieces if 102”-144”H) snaps onto first and last Uprite or Extension Uprite in a run
  • Can be used on both sides of Extension Uprites where Extension Backs are not used
View product details

Product Options and Numbers

Example Part #:   UET   48    PLT



Uprite/Extension Uprite End Trim: UET

Height: 6″, 12″, 18”, 24”, 30” 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Wall End Display End Top Rail

Product Details

  • Wall End Display End Top Rail is part of Wall End Display Stabilizer, and can be ordered separately
View product details

Product Options and Numbers

Example Part #:   WEDER   48     PLT

Wall End Display End Top Rail: WEDER

Width: 24″, 30″, 36″, 48″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Wall End Display Gondola Top Rail

Product Details

  • Wall End Display Gondola Top Rail is part of Wall End Display Stabilizer, and can be ordered separately
View product details

Product Options and Numbers

Example Part #:   WEDGR   48     PLT

Wall End Display Gondola Top Rail: WEDGR

Width: 36″, 48″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
