Contoured End Shelves

Part Number: CES

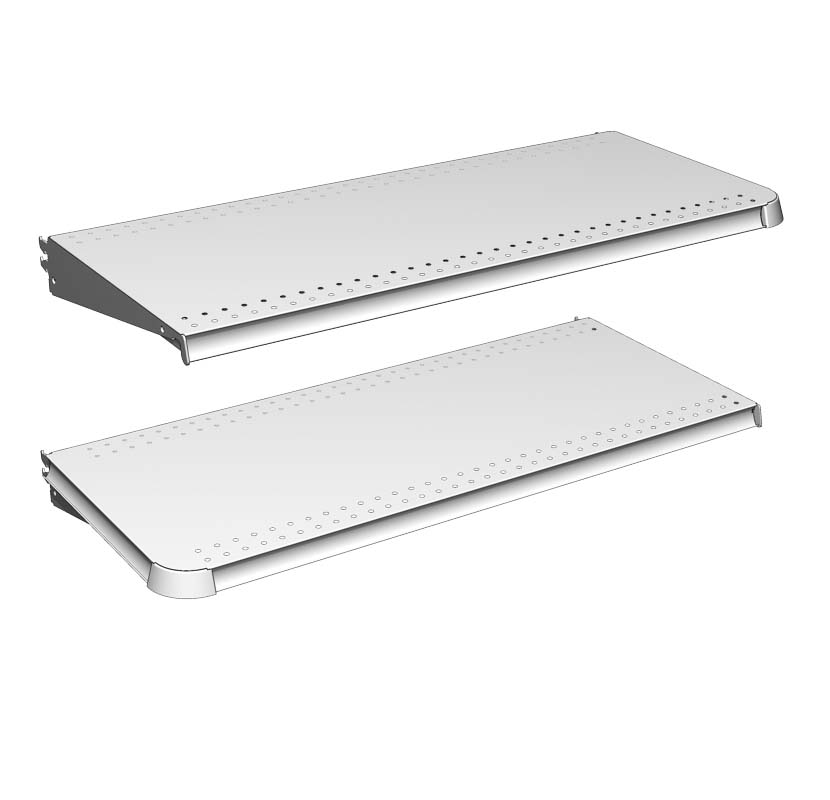

Order Contoured End Shelves with other Contoured End Display components. The Standard Shelf features rounded corners on both corners and 1.235″ Tag Molding formed on all three sides.  The LH/RH shelves feature a rounded corner on one side and 1.235″ Tag Molding formed on 2 sides.

Contoured End Shelves

Part Number: CES

Order Contoured End Shelves with other Contoured End Display components. The Standard Shelf features rounded corners on both corners and 1.235″ Tag Molding formed on all three sides.  The LH/RH shelves feature a rounded corner on one side and 1.235″ Tag Molding formed on 2 sides.

Gondola End Caps Contoured End Shelves Lozier
  • Gondola End Caps Contoured End Shelves Lozier

Roll over image to zoom in.

Contact to Order
Download PDF Print Email

Product Details

  • Features rounded corners
  • 1.235″ Tag Molding formed on three sides
  • Optional Aluminum Tag Molding wraps continuously around all three sides (matches M13 profile)
  • Will not accommodate Wire Fronts
  • Evenly distributed load of 300 lbs per Shelf
  • Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)



Product Options and Numbers

Example Part #:   CE   3   22   N  PLT

CED: Contour End Shelf

Round Corner: L (Left hand), R (Right hand) Blank (Both)

Width: 2′, 30″, 3′, 4′

Depth: 10″, 13″, 15″, 16″, 17″, 19″, 22″

Aluminum Tag Molding: MP Painted, MS Satin, N No molding

Standard Body Finish: PLT Optional Catalog Colors

Standard Molding Finish: Painted PLT Optional Catalog Colors, Satin SAT

Suffix Key
MS – Satin Molding
N – No Molding
MP – Painted Molding
PLT – Platinum
