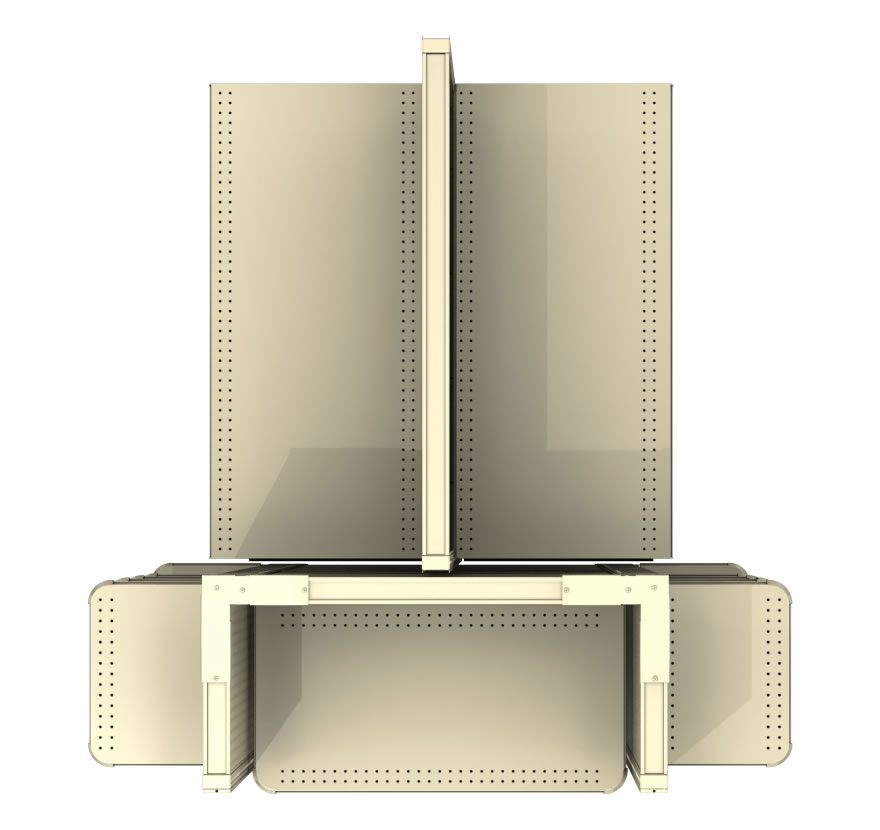

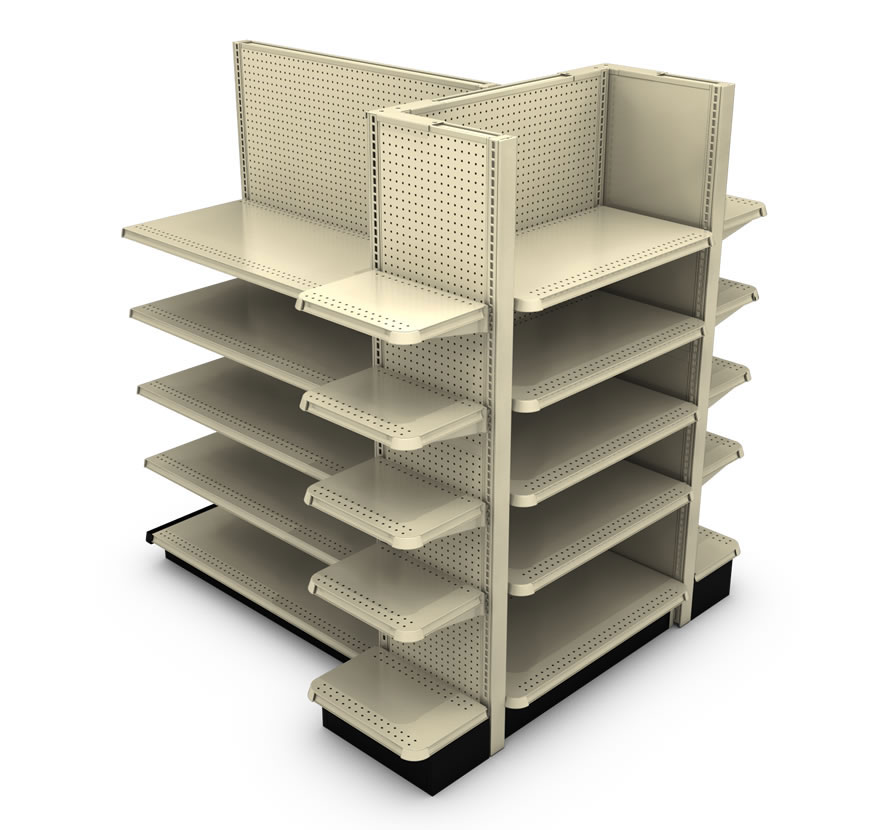

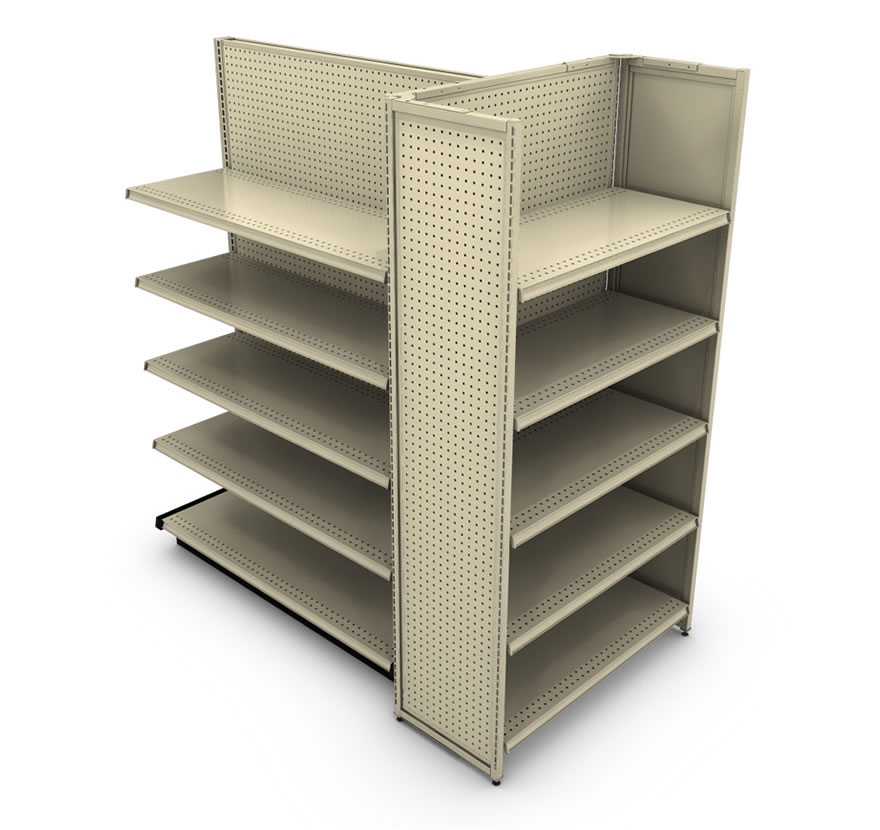

End Cap with End Display Wings

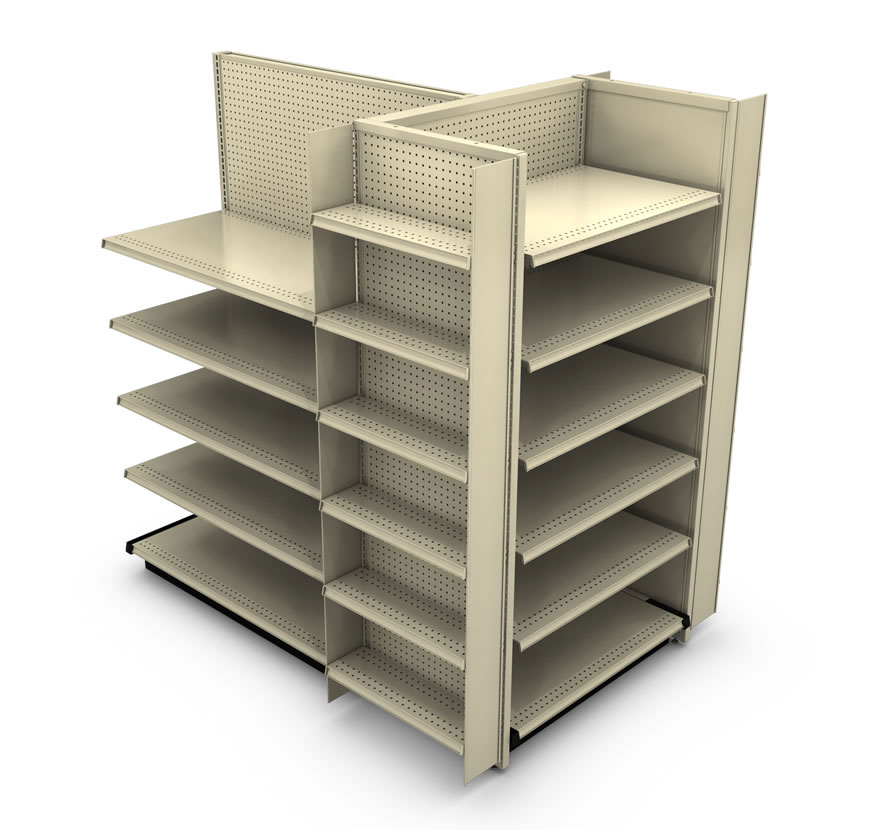

Contoured End Display featuring Contoured End Display Wings

End Cap with End Display Wings

Contoured End Display featuring Contoured End Display Wings

How to Order

This End Cap features a combination of Lozier Products.  See below for details.

Contoured End Display

Product Details

Load Rating

  • 600 lbs evenly distributed per deck (13″ – 19″ D)
  • 800 lbs evenly distributed per deck (22 – 25″ D)



  • Same as Wall End Display except includes Contoured End Decks and Contoured Base End Trims.
  • Contoured Shelves also available (ordered separately)
  • Order Gap Filler to close off the bottom rear when unit is wider than the island width.
  • Actual width of unit equals nominal width plus 2″
  • Accepts Accessory Panels and connectors
  • Stabilizers required and ordered separately for Non-Compliant height to depth Contoured End Displays (See Product Safety information for Height to Depth Chart)
  • Contour decks and shelves with only one round corner available for two section displays.
View product details

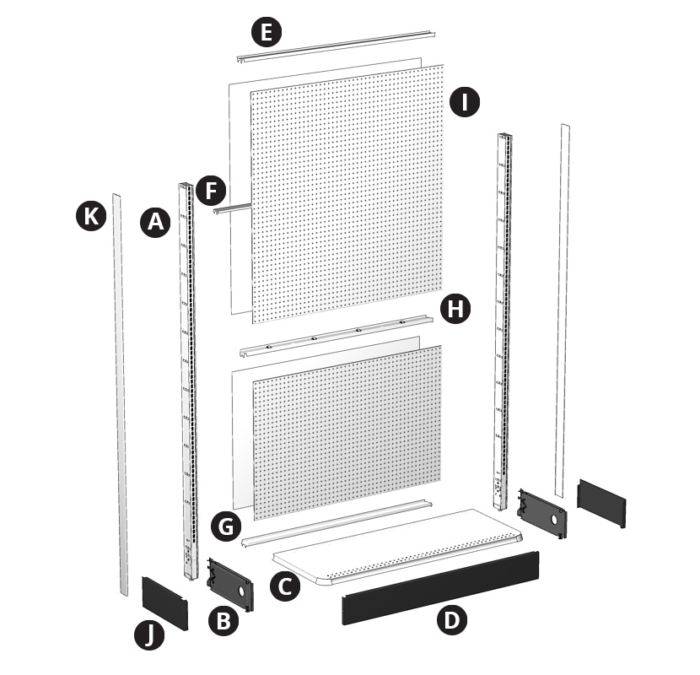

Product Options and Numbers

QTY.
A. Uprite 2
B. Base Bracket (Standard or Heavy Duty) 2
C. Contoured End Deck 1
D. Closed Base Front 1
E. Top Rail 1
F. Center Rail (2 per section 78H-120H) 1 or 2
G. Bottom Rail 1
H. Splicer Rail (Sections 78H-120H) Use 2 top rails for splicer on 2′ and 30″ wide sections. 1
I. Back Material (1 or 2 per side) See Back Chart
J. Contoured Base End Trim (Pair) 1
K. Uprite End Trim 2
Contoured End Displays

ORDERING INSTRUCTIONS FOR CONTOURED END DISPLAYS




QTY.
A. Uprite (Standard or Heavy Duty) 2
B. Base Bracket (06 or Low Base Height)) 2
C. Closed Base Front (06 or Low Base Height) 1
D. Contoured Base End Trim (06 or low base height (Pair-LH/RH) 1
E. Contour End Deck 1
F. Hardboard Back and Rail Set 2-Sided 1
G. Uprite End Trim 2
    CED SIZES
Depth  Height
48″ 54″ 60″ 66″ 72″ 78″ 84″ 90″ 96″
13″ N/A N/A N/A N/A N/A N/A N/A
16″
N/A N/A N/A N/A
19″ N/A
22″
25″

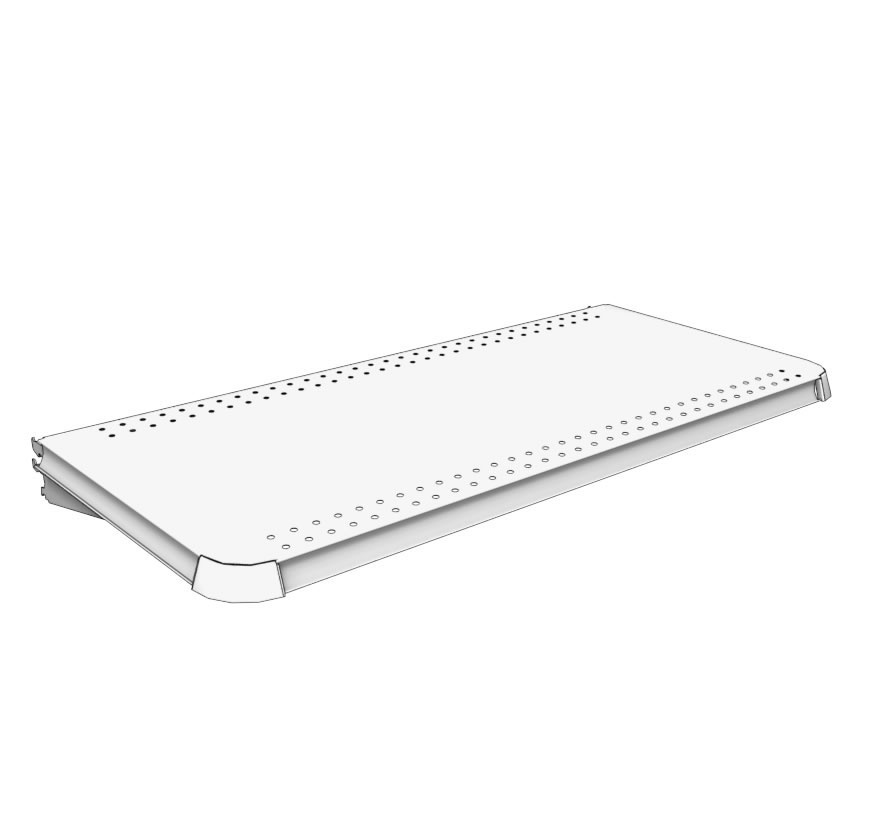

Contoured End Shelves

Product Details

  • Features rounded corners
  • 1.235″ Tag Molding formed on three sides
  • Optional Aluminum Tag Molding wraps continuously around all three sides (matches M13 profile)
  • Will not accommodate Wire Fronts
  • Evenly distributed load of 300 lbs per Shelf
  • Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)



View product details

Product Options and Numbers

Example Part #:   CE   3   22   N  PLT

CED: Contour End Shelf

Round Corner: L (Left hand), R (Right hand) Blank (Both)

Width: 2′, 30″, 3′, 4′

Depth: 10″, 13″, 15″, 16″, 17″, 19″, 22″

Aluminum Tag Molding: MP Painted, MS Satin, N No molding

Standard Body Finish: PLT Optional Catalog Colors

Standard Molding Finish: Painted PLT Optional Catalog Colors, Satin SAT

Suffix Key
MS – Satin Molding
N – No Molding
MP – Painted Molding
PLT – Platinum

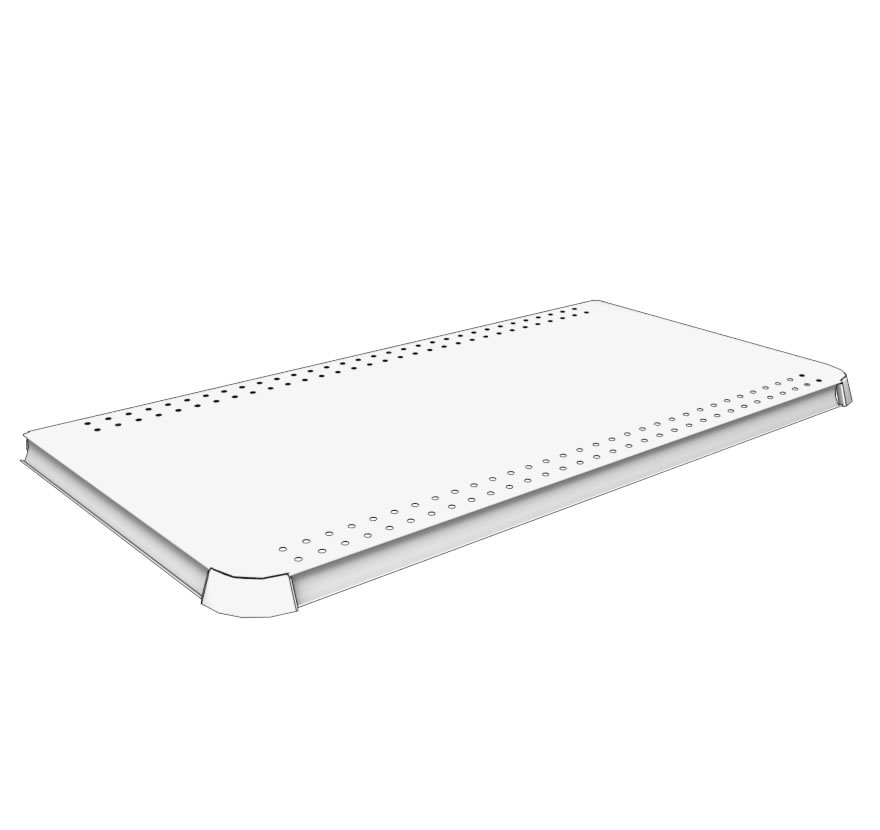

Contoured End Decks

Product Details

  • Features rounded corners
  • 1.235″ Tag Molding formed on three sides
  • Optional Aluminum Tag Molding wraps continuously around all three sides (matches M13 profile)
  • Will not accommodate Wire Fronts
  • Evenly distributed load of 600 lbs per Deck
  • Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)



View product details

Product Options and Numbers

Example Part #:   CED   4   19   MP  34K

CED: Contour End Deck

Round Corner: L (Left hand), R (Right hand) Blank (Both)

Width: 2′, 30″, 3′, 4′

Depth: 13″, 16″, 19″, 22″, 25″

Aluminum Tag Molding: MP Painted, MS Satin, N No molding

Standard Body Finish: PLT Optional Catalog Colors

Standard Molding Finish: Painted PLT Optional Catalog Colors, Satin SAT

PLT Body PLT Molding = Multiple Finish Code 34K. Contact Product Management for other Painted Molding Multiple Finish Codes

Suffix Key
MS – Satin Molding
MP – Painted Molding
N – No Molding
PLT – Platinum
SAT – Satin
34K – PLT Body PLT Molding

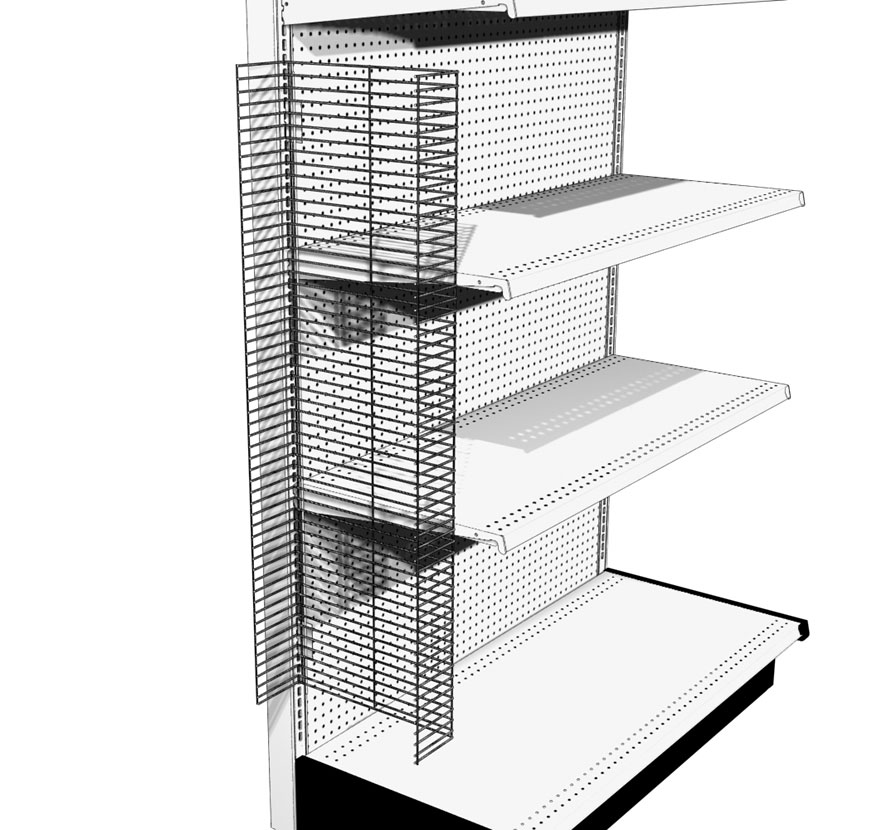

Stabilizer for WED or CED Wings

Product Details

Contact your Sales Rep for ordering Information

View product details

Product Options and Numbers

Part #:   HMA883
