Stepdown

Part Number:

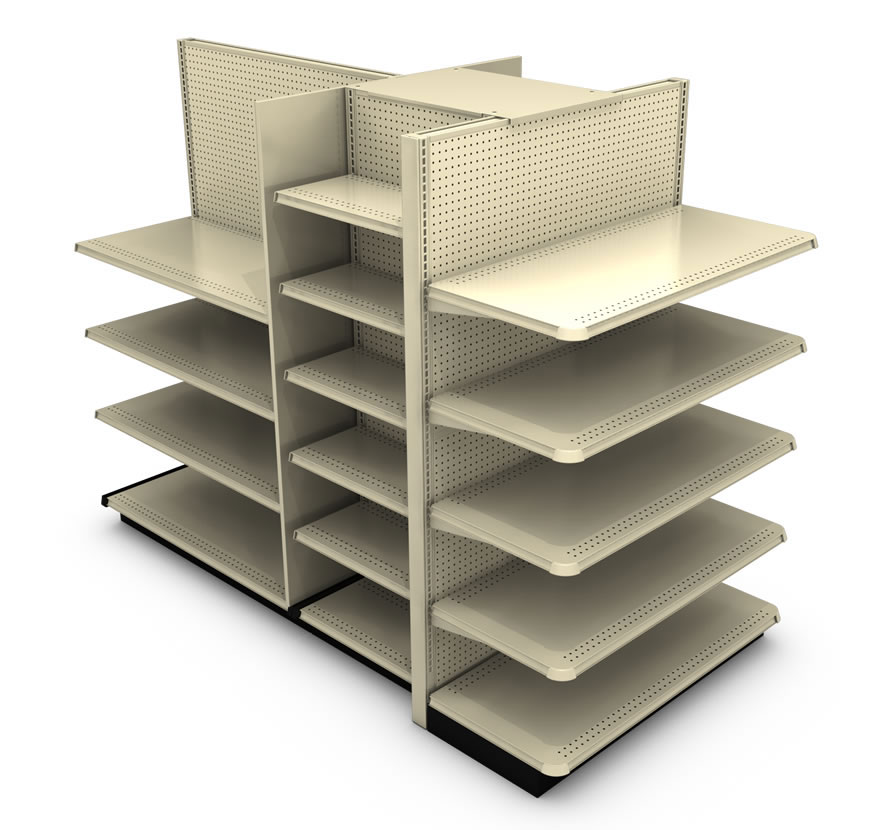

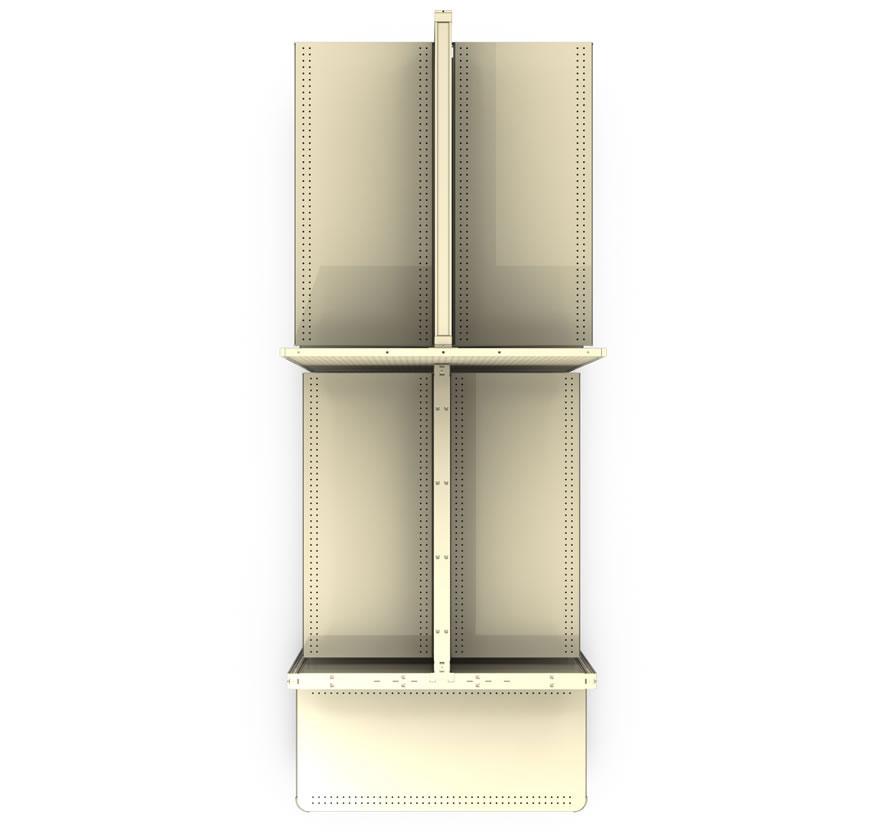

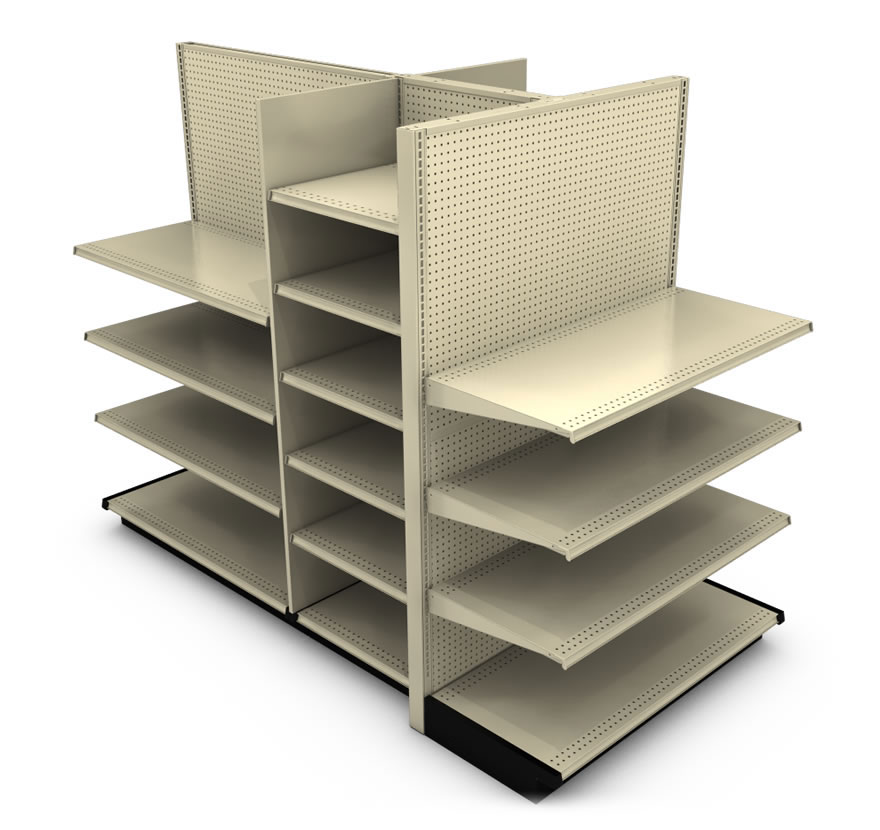

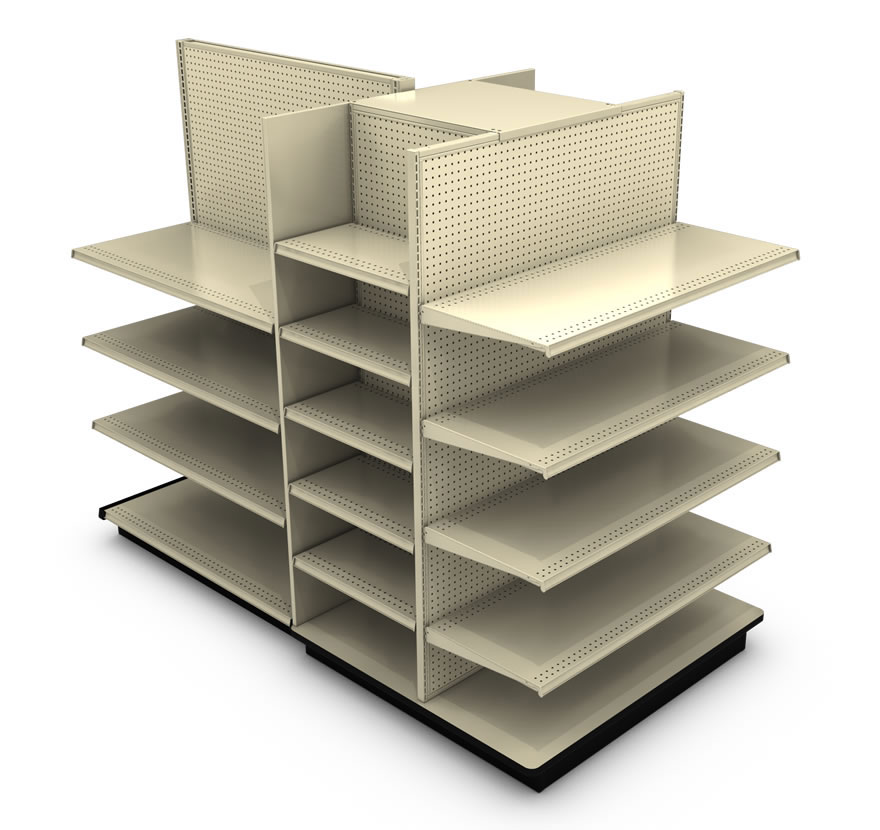

Draw attention to your Gondola run with a Step Down End Cap. This configuration is ideal for seasonal merchandise that needs to move off shelves quickly. Example features a Contoured End Display, using Shelves and Decks with rounded edges to give your display a softer look.

Stepdown

Part Number:

Draw attention to your Gondola run with a Step Down End Cap. This configuration is ideal for seasonal merchandise that needs to move off shelves quickly. Example features a Contoured End Display, using Shelves and Decks with rounded edges to give your display a softer look.

How to Order

This End Cap features a combination of Lozier Products.  See below for details.

Contoured End Display

Product Details

  • Same as Wall End Display, except uses Contoured End Decks, Contoured End Shelves, and Contoured Base Bracket End Trims
  • Order Shelves separately
  • Order Gap Filler separately when unit is wider than Island
  • Actual width of unit equals nominal width plus 2″
  • Base End Trim and Closed Base Front available in CHR only



TO ORDER OTHER BACK STYLES

  • Delete the Peg Front and/or Marteck Rear Back(s) and replace with the desired Back(s)
  • If Slotwall Backs desired, order required Rails

TO ORDER DECKS WITH ALUMINUM MOLDING

  • Delete Standard Deck and add Deck with Molding
View product details

Product Options and Numbers

Example Part #:   CED   4   60   22   06   S   P   M   PLT   PLT   PLT



Contoured End Display: CED

Unit Width: 2′, 30″, 3′, 4′

Uprite Height: 48″, 54″, 60″, 66″, 72″, 78″, 84″, 90″, 96″

Base Deck Depth: 13″, 16″, 19″, 22″, 25″

Base Height: 06, LB

Spring Locking Base Bracket: S

Front Back Style: P

Rear Back Style: M

Uprites and Uprite Trim Standard Finish: PLT, Optional Catalog Colors

Back and Rail Standard Finish:  PLT, Optional Catalog Colors

Deck Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
LB – Low Base (6″H)
06 – 06 Base (8″H)
P – Pegboard Back
M – Marteck Back
PLT – Platinum
    CED SIZES
Depth  Height
48″ 54″ 60″ 66″ 72″ 78″ 84″ 90″ 96″
13″ N/A N/A N/A N/A N/A N/A N/A
16″
N/A N/A N/A N/A
19″ N/A
22″
25″

Island Section

Product Details

INCLUDES

  • 1 Uprite
  • 2 Base Brackets
  • 2 Base Decks
  • 2 Closed Base Fronts
  • 1 Top Rail
  • 1 Center Rail (2 on 96-144”H)
  • 1 Bottom Rail
  • 1 Splicer Rail (78”-144”H)
  • Back Material



DIMENSIONS

Island Gondola Dimensions



BACK OPTIONS

Pegboard
Pegboard
Marteck
Marteck
Peg Mirror
Peg Mirror
Peg Woodgrain
Peg Woodgrain
Woodgrain
Woodgrain
Slotwall Inserts
Slotwall w/ Inserts
Slotwall
Slotwall
Econo Marteck
Econo Marteck

Save

Save

View product details

Product Options and Numbers

Example Part #:   IS   4   54   19   19   06   S   T   CBF   CHR   PLT   PLT   P   PLT   M   PLT   5   N   PLT   S   N   PLT



Island Section: IS

Section Width:  2’, 3’, 4′

Height: 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 108”, 120”

Base Deck Depth, Side A: 13”, 16’, 19”, 20”, 22”, 25”, 28”, 31”

Base Deck Depth, Side B:  13”, 16’, 19”, 20”, 22”, 25”, 28”, 31”

Base Type: 06, LB

Spring Locking Base Bracket: S, HD (Includes HD Base Bracket and HD Uprite)

Rail Type: T, Omit for regular rails

Base Front: CBF, OBF

Base Front Color: CHR

Uprite Color: PLT, Optional Catalog Colors

Back Rail Color: PLT, Optional Catalog Colors

Back Material, Side A:  P, M, S, SI, ME, W, PW, PM, NBR

Back Color, Side A: PLT, Optional Catalog Colors

Back Material, Side B:  P, M, S, SI, ME, W, PW, PM, NBR

Back Color, Side B: PLT, Optional Catalog Colors

Deck, Side A: S, HDSD

Deck Molding, Side A: N, M13S, M55S, M35S, MR1S

Deck Color, Side B: PLT, Optional Catalog Colors

Deck, Side B: S, HDSD

Deck Molding, Side B: N, M13S, M55S, M35S, MR1S

Deck Color, Side B: PLT, Optional Catalog Colors

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
T – Telescopic Rails
CBF – Closed Base Front
OBF – Open Base Front
CHR – Charcoal Black
PLT – Platinum
S – Standard Deck
HD – Heavy Duty
HDSD – Heavy Duty Deck
Back Options
P – Pegboard
M – Marteck
S – Slotwall
SI – Slotwall with Inserts
ME – Econo Marteck
W – Woodgrain
PW – Peg Woodgrain
PM – Peg Mirror
NBR – No Backs or Rails
Moldings
N – No Molding
M13S – M13 Satin Molding
M55S – M55 Satin Molding
M35S – M35 Satin Molding
MR1S – MR1 Satin Molding

Full Height Merchandise Panel

Product Details

  • Full Height version of Flush Merchandising Panel (accommodates up to a 9″ difference)
  • Panel extends past the Base End Trim and rests on the floor with leveling legs
  • Compatible with all Gondola Back options except Open Backs
  • Not compatible with End Deck

Installation Instructions

View product details

Product Options and Numbers

Example Part #:   FHMP   60   36   06   P   M   PLT   PLT   PLT

Full Height Merchandise Panel: FHMP

Uprite Height: 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”

Width: 24”, 30”, 36”, 48”

Base Type: 06, LB

Exterior Panel Style: P, M, P2, M2, S, SI, WG, SG, LG, MG

Interior Panel Style (if required): M, M2, Omit if P2 or M2 Exterior Panel

Exterior Panel Standard Finish: PLT, Optional Catalog Colors, Optional Catalog Laminates for Slotwall only

Aluminum Insert (if required): ALU (SI only)

Interior Panel Standard Finish (if required): PLT, Optional Catalog Colors, Omit if P2 or M2 Exterior Panel

Frame Standard Finish: PLT, Optional Catalog Colors

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
P – Pegboard Back
M – Marteck Back
P2 – Single Pegboard Back, painted two sides
M2 – Single Marteck Back, painted two sides
S – Slotwall Back
SI – Slotwall Back with Inserts
WG – 3×3 Wire Grid Back
SG – Slot Grid Back
LG – Louver Grid Back
MG – Multi-Grid Back
PLT – Platinum
ALU – Aluminum

Wall End Display Gondola Top Rail

Product Details

  • Wall End Display Gondola Top Rail is part of Wall End Display Stabilizer, and can be ordered separately
View product details

Product Options and Numbers

Example Part #:   WEDGR   48     PLT

Wall End Display Gondola Top Rail: WEDGR

Width: 36″, 48″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Wall End Display End Top Rail

Product Details

  • Wall End Display End Top Rail is part of Wall End Display Stabilizer, and can be ordered separately
View product details

Product Options and Numbers

Example Part #:   WEDER   48     PLT

Wall End Display End Top Rail: WEDER

Width: 24″, 30″, 36″, 48″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

TL Shelf

Product Details

  • Two position tilt-in Shelf with extended bracket
  • Angular adjustment: flat or 17° downslope
  • Molding accommodates a 1.235″ tag
  • 1/4″ perforations for clip-on accessories
  • Can order with Aluminum Tag Moldings installed or can order Molding for Shelf separately
View product details

Product Options and Numbers

Example Part #:   TL   4   19   N   PLT



TL Shelf: TL

Width:  2’, 30″, 3’, 4′

Depth: 7”, 10”, 13″, 15″, 16″, 17″, 19”, 20″, 22″, 25″, 28″, 31″

Molding: N, M13S, M35S

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
N – No Molding
M13S – M13 Satin Molding
M35S – M35 Satin Molding
PLT – Platinum
 Shelf Depth    Downslope
Flat  17°
7″ 300 lbs 300 lbs
10″ – 25″ 500 lbs 250 lbs
28″ & 31″ 400 lbs 200 lbs

Lbs. evenly distributed

DL Shelf

Product Details

  • Three position, drop-in shelf with extended bracket
  • Angular adjustment: flat, 17° or 30° downslope
  • 1/4″ perforations for clip-on accessories
  • Can order with Aluminum Tag Moldings or can order Molding for shelf separately
View product details

Product Options and Numbers

Example Part #:   DL   4   19   N   PLT



DL Shelf: DL

Width:  2’, 30″, 3’, 4′

Depth: 7”, 10”, 13″, 15″, 16″, 17″, 19”, 20″, 22″, 25″, 28″, 31″

Molding: N, M13S, M35S

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
N – No Molding
M13S – M13 Satin Molding
M35S – M35 Satin Molding
PLT – Platinum
 Shelf Depth    Downslope
Flat  17° 30°
7″ 300 lbs 300 lbs 125 lbs
10″ – 19″
500 lbs 250 lbs 250 lbs
20″ – 25″ 500 lbs 250 lbs 125 lbs
28″ & 31″ 400 lbs 200 lbs 100 lbs

Lbs. evenly distributed.
