No Base Wall End Display

WEDNB

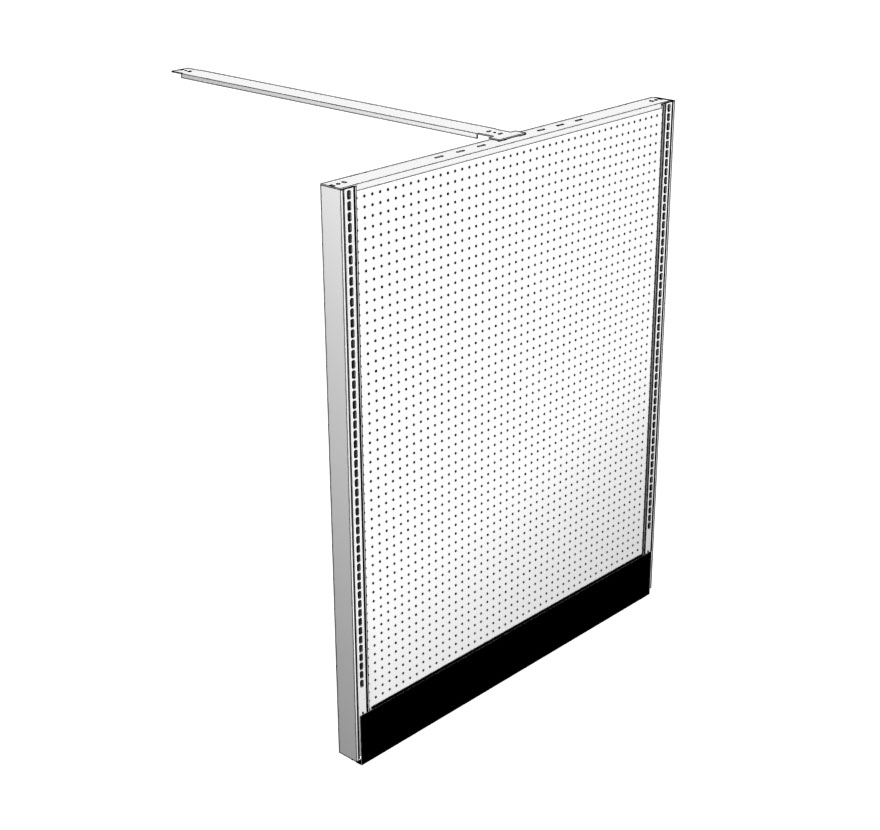

The No Base Wall End Display is a wall end display without any base components. This End Cap style is ideal for finishing a Gondola run with a bulk display.

No Base Wall End Display

WEDNB

The No Base Wall End Display is a wall end display without any base components. This End Cap style is ideal for finishing a Gondola run with a bulk display.

Product Details

  • Wall End Display without a base deck
  • Attaches to a Lozier Island of equal height
  • Includes required Upper and Lower Stabilizer to attach to adjoining island section
  • Lower stabilizer available in CHR only
  • Includes all display components
  • Includes Hardboard Back Panels
  • Order rear Gap Filler separately when unit is wider than island
  • Order Shelves separately
  • Compatible with 06 and low base island
  • Will accept Slotwall Backs, however, different rail combination is required.  Contact your Lozier Salesperson



End Cap Width Minimum Base Deck Depth Maximum Base Deck Depth
3′ 13/13 19/19
4′ 13/13 25/25
6′ (two 3′ Sections) 25/25 31/31



NOTE

  • All No Base Wall End Displays that are intended for use with Shelves, Peg Hooks, or Slotwall Accessories must include a floor display to direct traffic away from protrusions. Extension Uprites cannot be used on this Display.
  • No Base Wall End Displays can be centered on Gondolas with many different combinations of unequal Base Deck depths. Contact your Lozier salesperson for allowable combinations.

MAXIMUM LOAD RATING 12,000 IN LBS

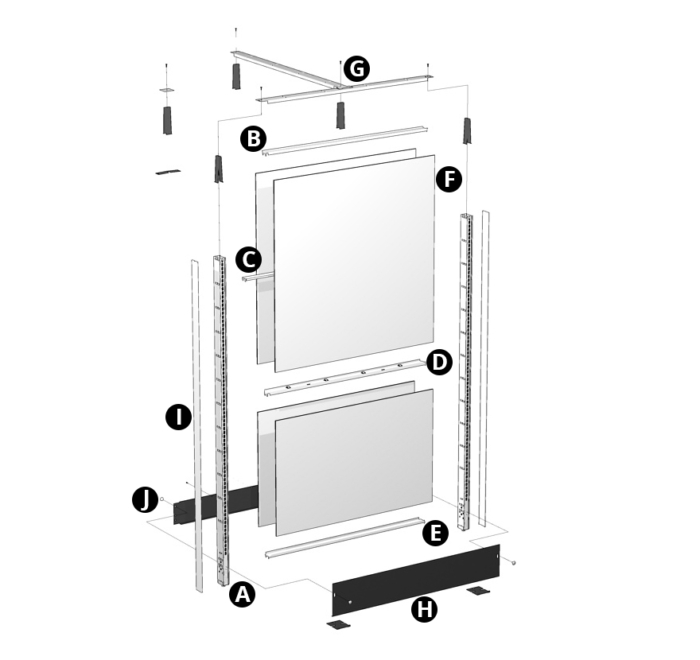

How to Order

QTY.
A. Uprite 2
B. Top Rail 1
C. Center Rail (2 per section 78H-120H) 1 or 2
D. Splicer Rail (Sections 78H-120H) Use 2 top rails for splicer on 2′ and 30″ wide sections. 1
E. Bottom Rail 1
F. Back Material (1 or 2 per side) 1 or 2
G. No Base Wall End Display Connector 1
H. Wall End Display Stabilizer (includes and ordered separately End Rail and Gondola Rail) 1
I. Uprite End Trim 2
No Base Wall End Display

ORDERING INSTRUCTIONS FOR NO BASE WALL END DISPLAY




 QTY.
A. Uprite (Standard or Heavy Duty) 2
B. WEDNB_ (No Base Lower Stabilizer) 1
C. Wall End Display End Top Rail 1
D. Wall End Display Gondola Top Rail 1
E. Hardboard Back and Rail Set 2-Sided 1
F. Uprite End Trim 2
G. Gap Filler 1

Uprites

Product Details

  • 3/16” thick face channel
  • 1” slotted on center for maximum flexibility
  • Use for Wall and Island Sections
  • Steel welded construction
  • Includes side flanges to retain Back material, leveling leg for uneven floors
  • Includes Top Caps on Uprites 36”-66”H



uprite diagram

View product details

Product Options and Numbers

Example Part #:   U   42    PLT



Uprite: UUH

U Height: 30”, 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

UH Height: 72”, 78”, 84”, 90”, 96”, 108”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
U – Uprite
UH – Heavy Duty Uprite

No Base Wall End Display Lower Stabilizer

Product Details

  • Connects No Base End Cap to Gondola Base Brackets
  • Provides Kickplate at bottom of display
View product details

Product Options and Numbers

Example Part #:   WEDNB   48    CHR



Wall End Display No Base: WEDNB

Width: 36″, 48″

Standard Finish: CHR, Optional Catalog Colors

Wall End Display End Top Rail

Product Details

  • Wall End Display End Top Rail is part of Wall End Display Stabilizer, and can be ordered separately
View product details

Product Options and Numbers

Example Part #:   WEDER   48     PLT

Wall End Display End Top Rail: WEDER

Width: 24″, 30″, 36″, 48″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Wall End Display Gondola Top Rail

Product Details

  • Wall End Display Gondola Top Rail is part of Wall End Display Stabilizer, and can be ordered separately
View product details

Product Options and Numbers

Example Part #:   WEDGR   48     PLT

Wall End Display Gondola Top Rail: WEDGR

Width: 36″, 48″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Hardboard Back and Rail Set 2-Sided

Product Details

  • Set includes all rails and backs for a typical Island Section using hardboard backs.
  • 1 hardboard back per side up to 72″H
  • 2 hardboard backs per side 78″H – 120″H (See Back Chart for sizes)
View product details

Product Options and Numbers

INCLUDES:

A.  Top Rail

B.  Center Rail(s)

C.  Splicer Rail (if applicable) (Use 2 top rails for splicer on 2′ and 30″ wide sections)

D.  Bottom Rail

E.  Hardboard Backs

Hardboard Backs - Island - 2-Piece - with Letters

HARDBOARD BACK AND RAIL SET 2-SIDED

Width: 24″, 30″. 36″, 48″

Uprite Height: 36″, 42″, 48″, 54″, 60″, 66″, 72″, 78″, 84″, 90″, 96″, 102″, 108″, 114″, 120″

Back Finish Type Side A:  Painted, Unpainted

Back Style Side A:  Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish Type Side B:  Painted, Unpainted

Back Style Side B:  Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish Side B:  Martek or Peg PLT  Optional Catalog Colors, Martek Econo  N/A, Peg Woodgrain or Woodgrain  IA1

Rail Finish: PLT Optional Catalog Colors



Suffix Key
N/A – Unfinished
PLT – Platinum
IA1 – Oak Melamine

Uprite and Extension Uprite End Trim

Product Details

  • One-piece trim (Two-pieces if 102”-144”H) snaps onto first and last Uprite or Extension Uprite in a run
  • Can be used on both sides of Extension Uprites where Extension Backs are not used
View product details

Product Options and Numbers

Example Part #:   UET   48    PLT



Uprite/Extension Uprite End Trim: UET

Height: 6″, 12″, 18”, 24”, 30” 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Gap Filler

Product Details

  • Use to fill the gap between the Bottom Rail and floor on rear side of the Wall Shelving
  • Compatible with either 06 Base or Low Base
View product details

Product Options and Numbers

Example Part #:   GF   4   CHR



Gap Filler: GF

Section Width: 2’, 30”, 3’, 4’

Standard Finish: CHR

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
CHR – Charcoal Black
