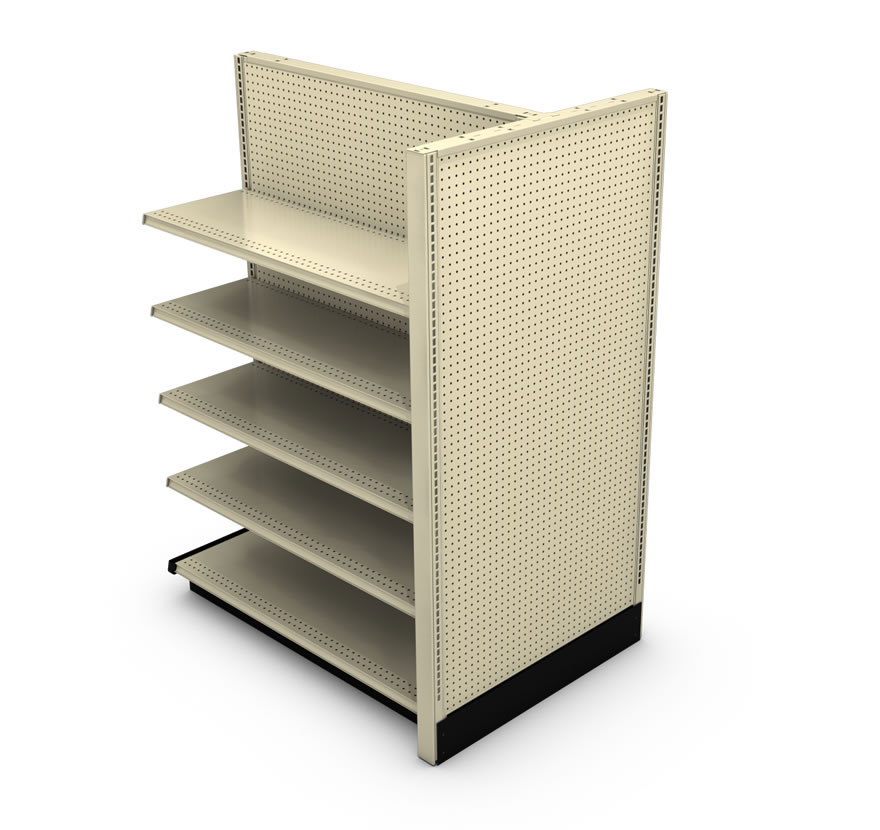

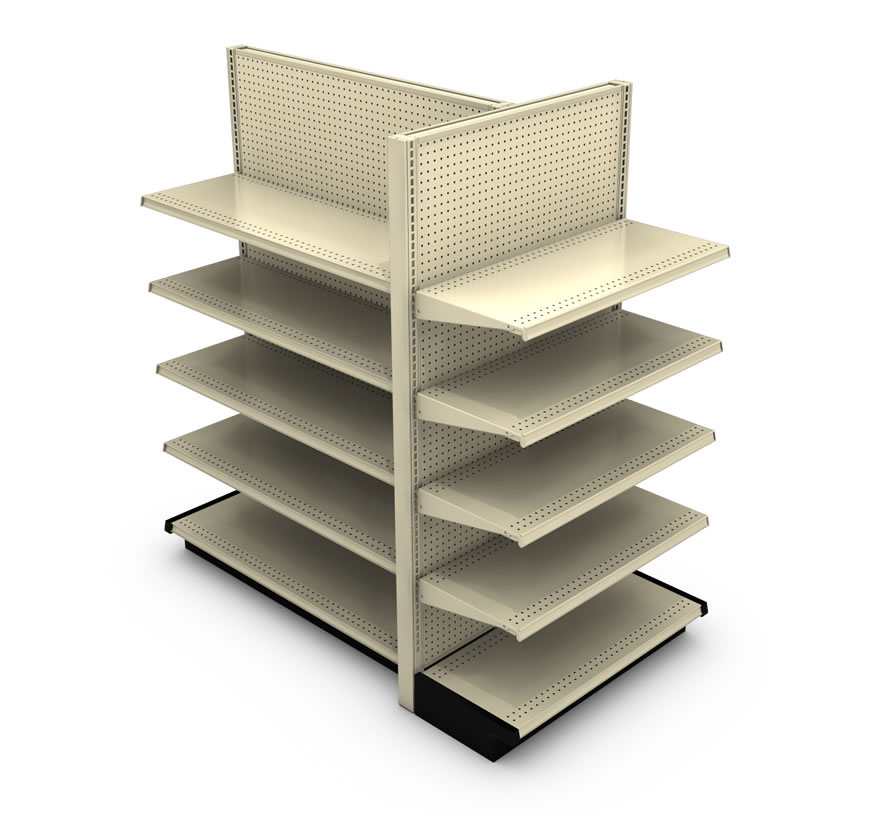

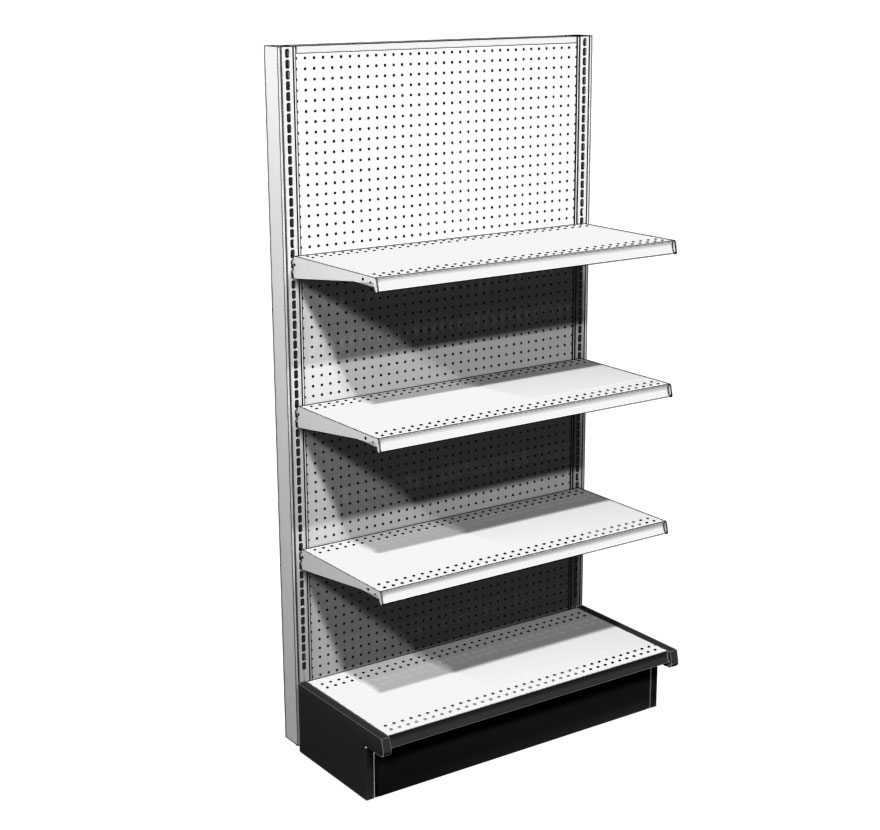

Wall End Displays

Wall End Display creates a promotional opportunity at the end of an Island run. Customize your display with various Back styles and accessories.

Wall End Displays

Wall End Display creates a promotional opportunity at the end of an Island run. Customize your display with various Back styles and accessories.

Product Details

Load Rating

  • 600 lbs evenly distributed per deck (13″ – 19″ D)
  • 800 lbs evenly distributed per deck (22 – 25″ D)



  • Freestanding End Display
  • Pegboard Front Panel and Martek Back Panel, other Back Panel styles available
  • Order Shelves separately

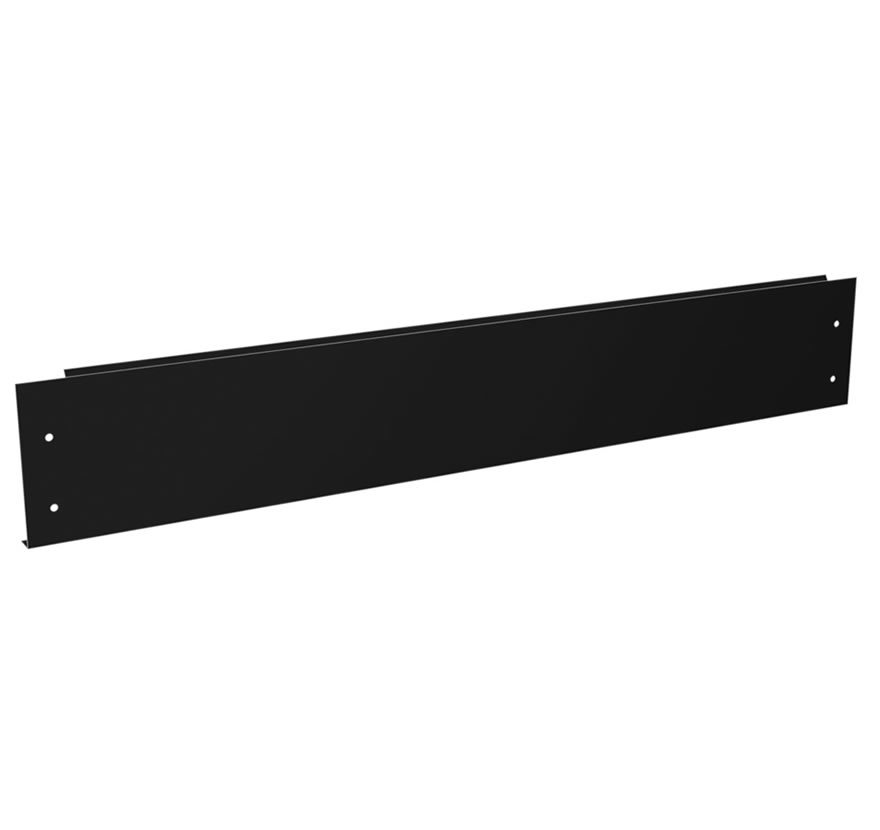

  • Order Gap Filler to close off the bottom rear when unit is wider than the island width.
  • Actual width of unit equals nominal width plus 2″
  • Accepts Accessory Panels and connectors
  • Stabilizers required and ordered separately for Non-Compliant height to depth Wall End Displays (See Product Safety information for Height to Depth Chart)

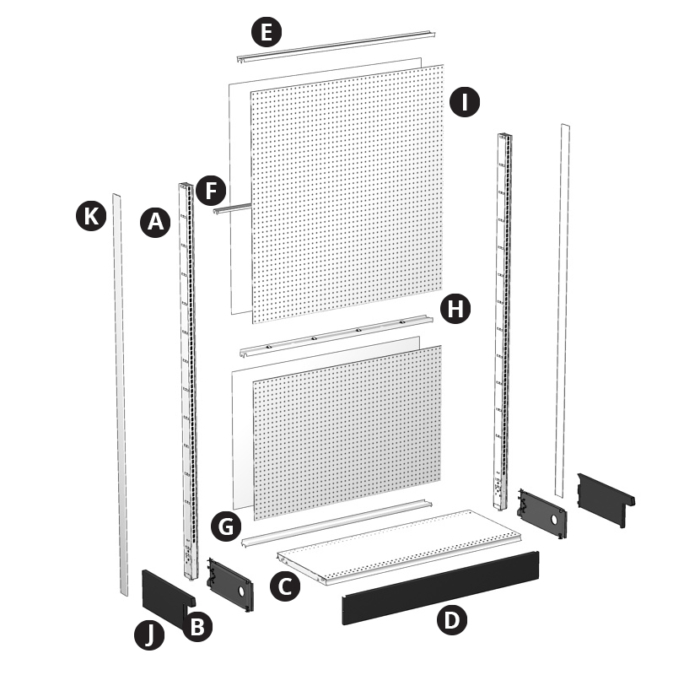

How to Order

QTY.
A. Uprite 2
B. Base Bracket (Standard or Heavy Duty) 2
C. Deck (Standard or Heavy Duty) 1
D. Base Front (Open or Closed) 1
E. Top Rail 1
F. Center Rail (2 per section 78H-120H) 1 or 2
G. Bottom Rail 1
H. Splicer Rail (Sections 78H-120H) Use 2 top rails for splicer on 2′ and 30″ wide sections. 1
I. Back Material (1 or 2 per side) See Back Chart
J. Base End Trim (Pair) 1
K. Uprite End Trim 2
Wall End Display

ORDERING INSTRUCTIONS FOR ISLAND SECTIONS 1/4″ BACK MATERIAL




 QTY.
A. Uprite (Standard or Heavy Duty) 2
B. Base Set (Standard or Heavy Duty) 1
C. Hardboard Back and Rail Set 2-Sided 1
D. Uprite End Trim 2
    WED SIZES
Depth  Height
48″ 54″ 60″ 66″ 72″ 78″ 84″ 90″ 96″
13″ N/A N/A N/A N/A N/A N/A N/A
16″
N/A N/A N/A N/A
19″ N/A
22″
25″

Uprites

Product Details

  • 3/16” thick face channel
  • 1” slotted on center for maximum flexibility
  • Use for Wall and Island Sections
  • Steel welded construction
  • Includes side flanges to retain Back material, leveling leg for uneven floors
  • Includes Top Caps on Uprites 36”-66”H

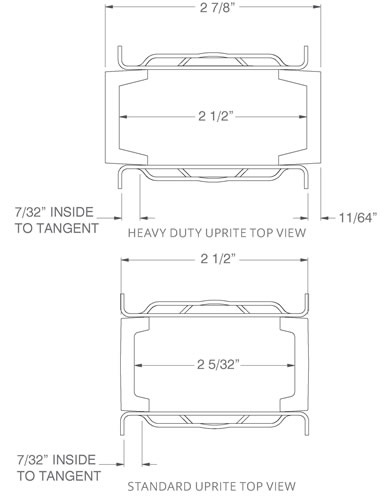

uprite diagram

View product details

Product Options and Numbers

Example Part #:   U   42    PLT



Uprite: UUH

U Height: 30”, 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

UH Height: 72”, 78”, 84”, 90”, 96”, 108”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
U – Uprite
UH – Heavy Duty Uprite

Hardboard Back and Rail Set 2-Sided

Product Details

  • Set includes all rails and backs for a typical Island Section using hardboard backs.
  • 1 hardboard back per side up to 72″H
  • 2 hardboard backs per side 78″H – 120″H (See Back Chart for sizes)
View product details

Product Options and Numbers

INCLUDES:

A.  Top Rail

B.  Center Rail(s)

C.  Splicer Rail (if applicable) (Use 2 top rails for splicer on 2′ and 30″ wide sections)

D.  Bottom Rail

E.  Hardboard Backs

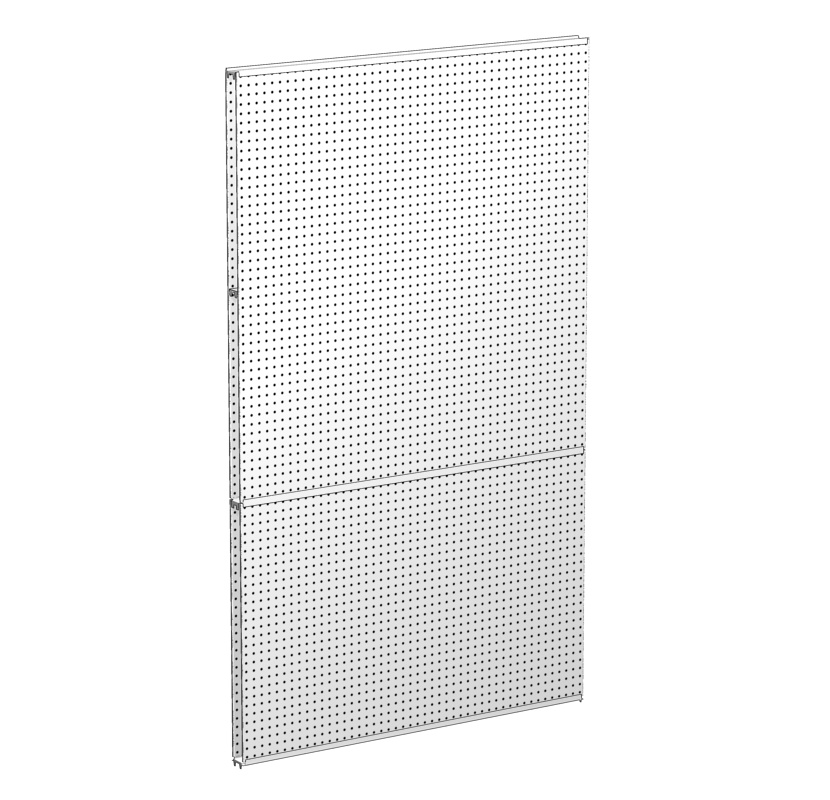

Hardboard Backs - Island - 2-Piece - with Letters

HARDBOARD BACK AND RAIL SET 2-SIDED

Width: 24″, 30″. 36″, 48″

Uprite Height: 36″, 42″, 48″, 54″, 60″, 66″, 72″, 78″, 84″, 90″, 96″, 102″, 108″, 114″, 120″

Back Finish Type Side A:  Painted, Unpainted

Back Style Side A:  Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish Type Side B:  Painted, Unpainted

Back Style Side B:  Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish Side B:  Martek or Peg PLT  Optional Catalog Colors, Martek Econo  N/A, Peg Woodgrain or Woodgrain  IA1

Rail Finish: PLT Optional Catalog Colors



Suffix Key
N/A – Unfinished
PLT – Platinum
IA1 – Oak Melamine

Base Set

Product Details

  • 06 or Low Base height
  • Standard or Heavy Duty
  • Starter and Add-On

Order 1 for each side of the gondola section (Starter or Add-On)





View product details

Product Options and Numbers

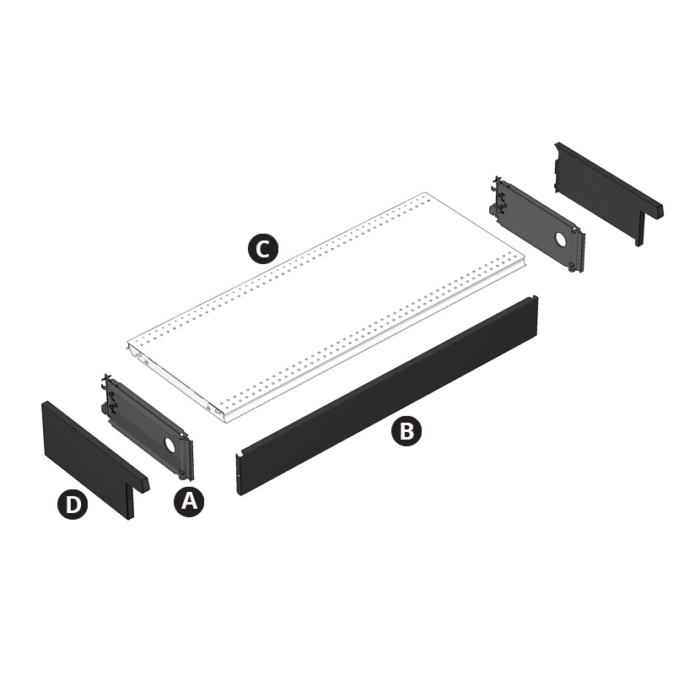

INCLUDES:

A.  Base Bracket(s) (Standard or Heavy Duty)

B.  Base Front (Open or Closed)

C.  S-Series Deck (Standard Duty-Optional Reinforced)

D.  Base End Trim











BASE SET

Type: Add On, Starter

Base Bracket Style: Heavy Duty, Standard Duty

Width: 2′, 30″, 3′, 4′

Depth: 13″, 16″, 19″, 22″, 25″, 28″, 31″

Deck Style: Heavy Duty, S-Style, S-Style Reinforced

Molding Type: M13 Painted, M13 Satin,M35 Painted, M35 Satin,M55 Painted,M55 Satin,No Molding, MR1 Painted, MR1 Satin

Base Height: 06 Base, Low Base

Base Front Style: Closed, Open

Base Finish: CHR

Deck Finish: PLT Optional Catalog Colors

Deck Top Finish: LAX Optional Catalog Laminates (Laminated Decks Only-Requires MR1 Molding)

Molding Finish: Omit No Molidng, SAT, PLT Painted Optional Catalog Colors

STARTER

Base Set - Starter - with Letters

ADD-ON

Base Set - Add-On - with Letters
Suffix Key
CHR – Charcoal Black
LAX – Platinum Laminate
PLT – Platinum
SAT – Satin Molding
M13 – M13 Tag Molding
M35 – M35 Tag Molding
M55 – M55 Tag Molding

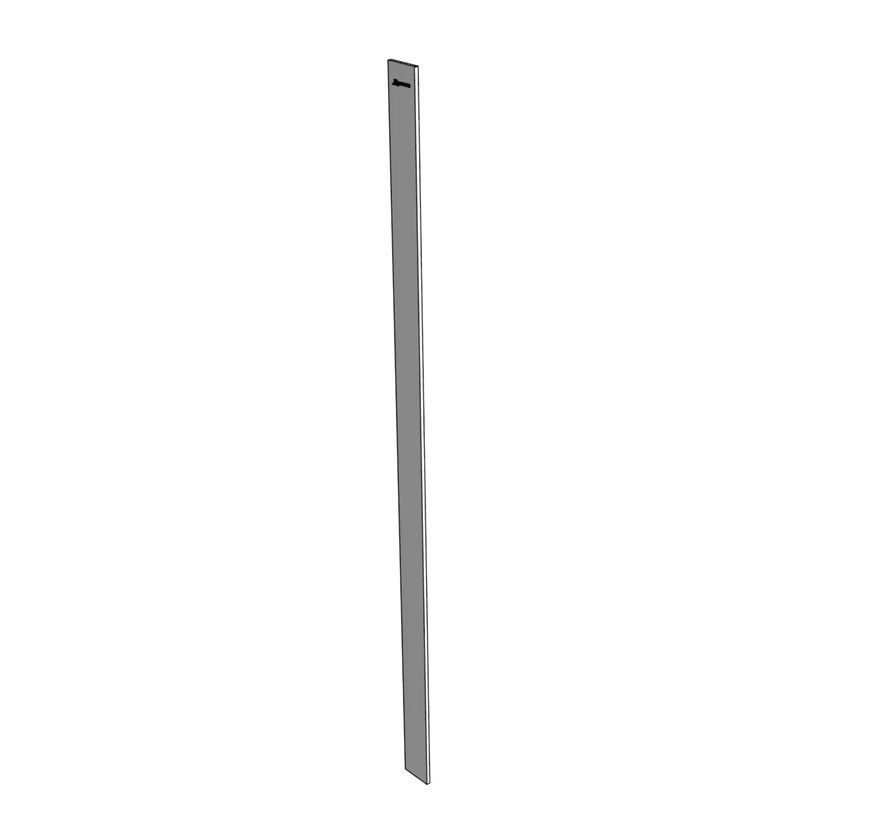

Uprite and Extension Uprite End Trim

Product Details

  • One-piece trim (Two-pieces if 102”-144”H) snaps onto first and last Uprite or Extension Uprite in a run
  • Can be used on both sides of Extension Uprites where Extension Backs are not used
View product details

Product Options and Numbers

Example Part #:   UET   48    PLT



Uprite/Extension Uprite End Trim: UET

Height: 6″, 12″, 18”, 24”, 30” 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Wall End Display Stabilizer

Product Details

  • Anchors freestanding 2′, 30″, 3′, or 4’W Wall End Display to 3′ or 4′ Island Sections
  • Accommodates up to 9″ offset (3″ increments)
  • Required when a Wall End Display or Contoured End Display has an unacceptable freestanding
    height-to-depth ratio (Levelers exceed 6:1)
  • Wall End and Gondola End Section Top Rail not required
  • Stabilizes top of WEDNB (No Base End Cap)

WEDS INCLUDES (ordered separately)

  • Wall End Display End Top Rail (WEDER)
  • Wall End Display Gondola Top Rail (WEDGR)
View product details

Product Options and Numbers
