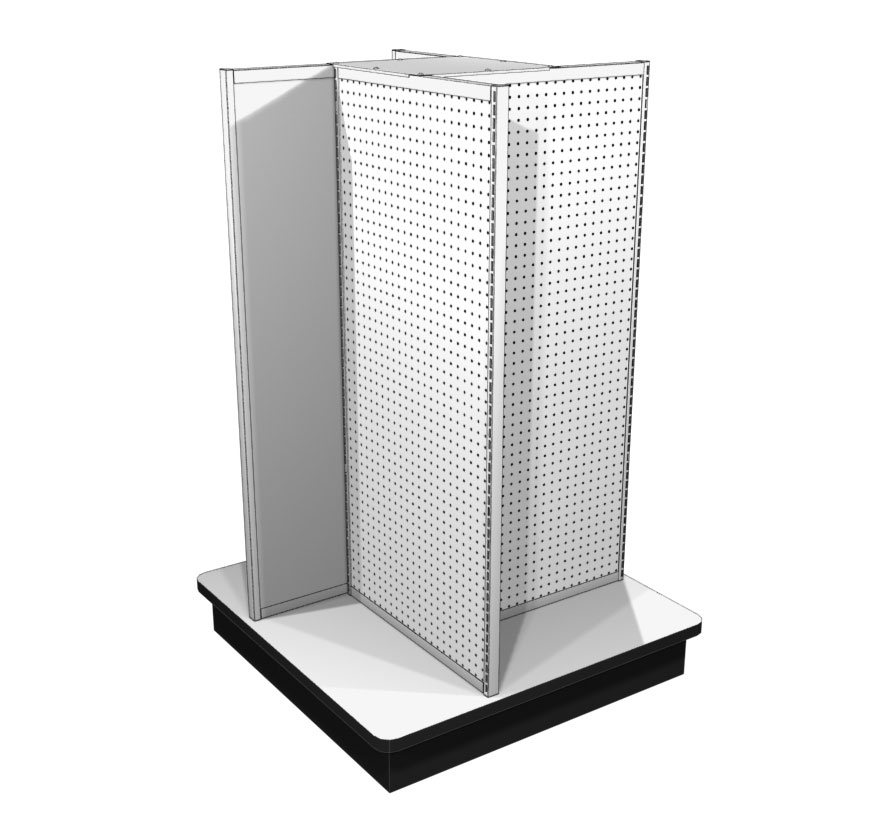

Roll over image to zoom in.
Product Details
-
- Wood Base with Pallet Jack Access
- Wood Base edged with black T-Molding
- Slotted Steel Frames accept all Lozier Shelves and Accessories
- Evenly distributed load of 300 lbs per Panel, 1,000 lbs total unit load capacity
- Order Shelves separately, see size chart below
| Offset Panel (Y/N) |
Panel Width |
Base Dimensions |
Max. Shelf Depth |
| Y |
24″ |
38″ x 38″ |
10″ |
| Y |
30″ |
47″ x 47″ |
13″ |
| Y |
36″ |
56″ x 56″ |
16″ |
Product Options and Numbers
- Order four respective width Panels for base size shown on chart (available heights 54″ or 60″)
- Order one Base per unit (includes top cover)
Four Way Display Panel
Example Part #: FWDP5424PM.29T
Four Way Display Panel: FWDP
Height: 54″, 60″
Panel Width: 24″, 30″, 36″
Ext Panel: P (Peg), M (Mtk), PW (Peg Woodgrain, W (Woodgrain)
Int Panel: M (Mtk), W (Woodgrain)
Standard Finish: 29T, 53T, 53U
Contact Product Management for other finish combinations.
Four-Way Pallet Jack Base
Example Part #: FWDBP47.2MR
Four Way Dispay Base Pallet Jack: FWDBP
Size (Sq.): 38″, 47″, 56″
Standard Finish: 2MR, 2MS
Contact Product Management for other finish combinations.
| Suffix Key |
| PLT |
– Platinum |
| LAX |
– Platinum Laminate |
| MA1 |
– Platinum Melamine |
| VB2 |
– Black T-Molding |
| CHR |
– Charcoal Black |
| 2MR |
– LAX Top, PLT Top Cover, VB2 Molding, CHR Base |
| 2MS |
– MA1 Top, PLT Top Cover, VB2 Molding, CHR Base |
| 29T |
– PLT Exterior, PLT Interior, PLT Frame |
| 53T |
– IA1 Exterior, IA1 Interior, PLT Frame |
| 53U |
– IA1 Exterior, PLT Interior, PLT Frame |
| IA1 |
– Oak Melamine |
