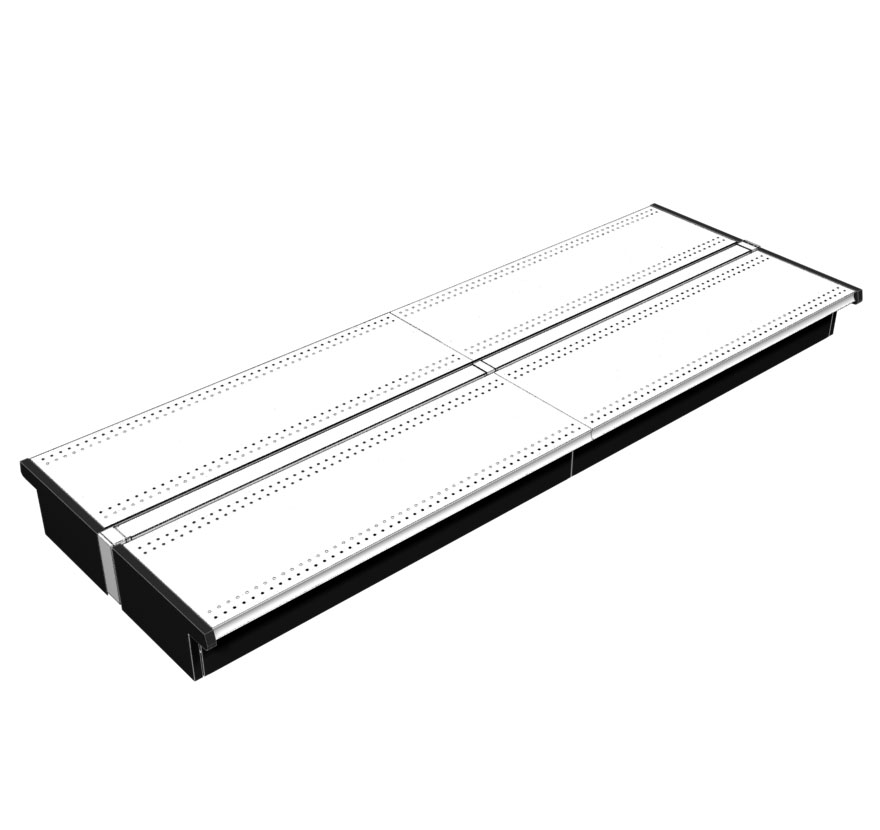

Steel Display Deck

Use the Steel Display Deck to create mass displays and uniform fixture appearance. Optional Removable Uprite to convert the Deck to a Light Duty Gondola.

Steel Display Deck

Use the Steel Display Deck to create mass displays and uniform fixture appearance. Optional Removable Uprite to convert the Deck to a Light Duty Gondola.

Freestanding Retail Shelving Single Section Steel Display Deck Lozier
  • Freestanding Retail Shelving Single Section Steel Display Deck Lozier
  • Freestanding Retail Shelving Steel Display Deck Lozier

Roll over image to zoom in.

Contact to Order
Download PDF Print Email Fixture CAD Blocks

Product Details

  • Provides mass display capability and uniform fixture appearance

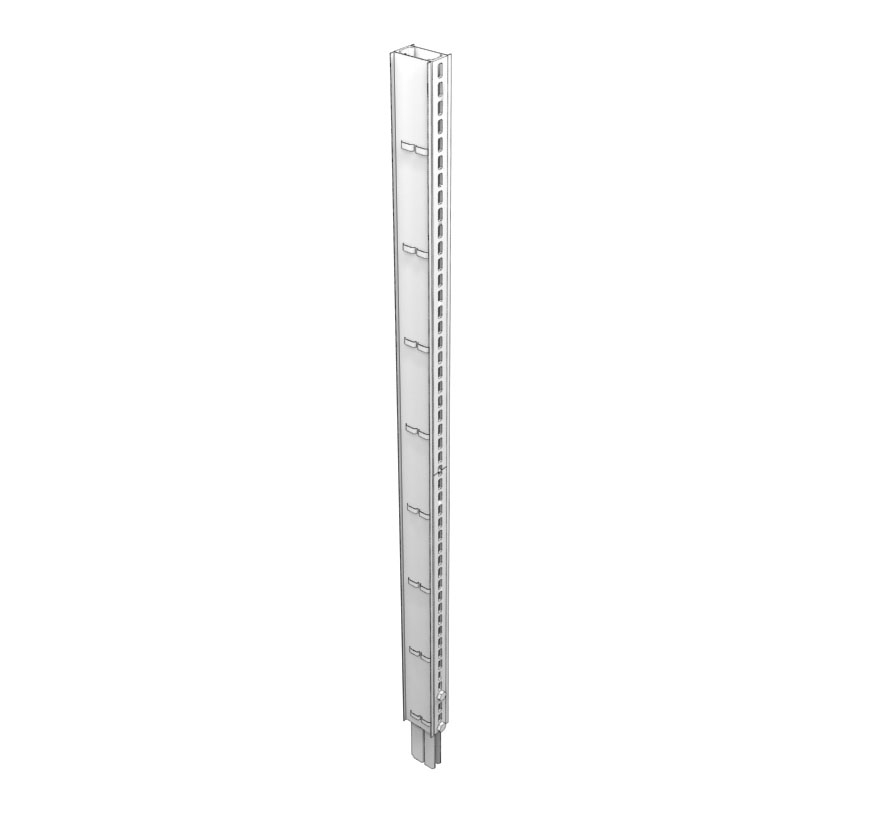

  • Use optional Removable Uprite to convert the Deck to a Light Duty Gondola (Use standard height Uprite End Trim)
  • Overall depth of 35″ has 16″/16″ Base Deck
  • Overall depth of 47″ has 22″/22″ Base Deck

NOTE: Requires Steel Display Deck End to finish the run

Assembly Includes (Sold Separately):

  • 2 Base Decks
  • 2 Base Brackets (06 Base or Low Base)
  • 2 Closed Base Fronts (06 Base or Low Base)
  • 1 Open Back Spanner
  • 1 Steel Display deck Uprite (06 Base or Low Base)

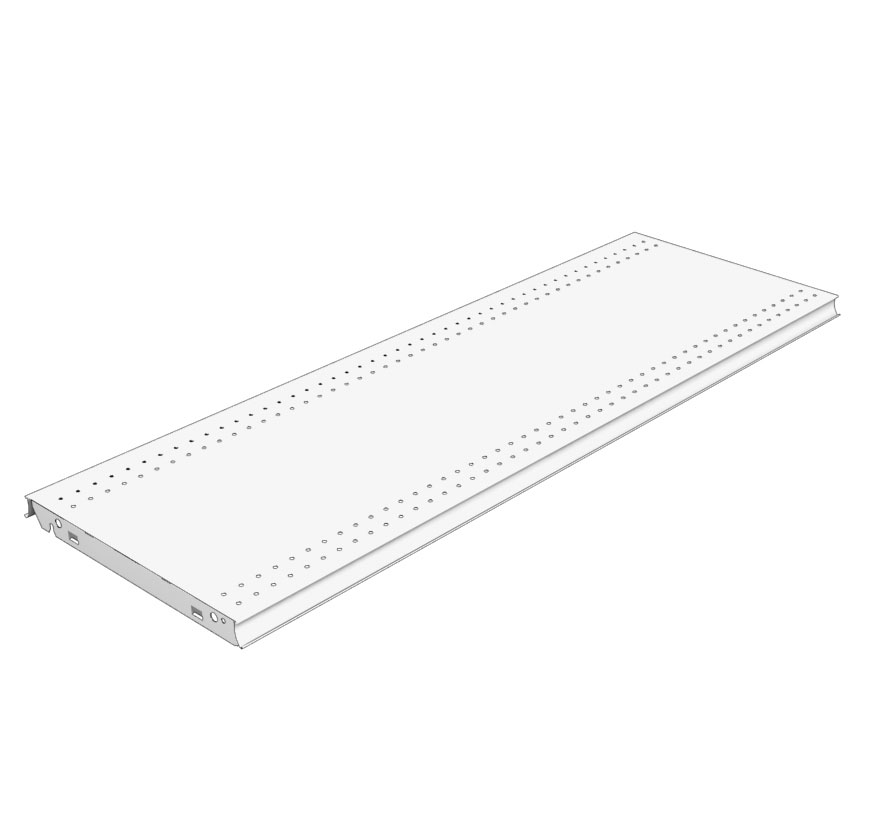

SD Deck

Product Details

  • Standard Deck style for Island and Wall runs
  • Molding accommodates a 1.235” tag
  • 1/4” perforations for clip-on accessories
  • Can order with Aluminum Tag Moldings installed or can order Molding for Deck separately
  • Evenly distributed load of 600 lbs (13″-19″D) and 800 lbs (22″-31″D)
View product details

Product Options and Numbers

Example Part #:   SD   4   16   N   PLT



SD Deck: SD

Width:  2’, 30″, 3’, 4′

Base Depth: 13″, 16″, 19”, 22″, 25″, 28″, 31″

Molding: N, M13P, M35P, M55P, M13S, M35S, M55S

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
N – No Molding
M13P – M13P Painted Molding
M35P – M35P Painted Molding
M55P – M55P Painted Molding
M13S – M13 Satin Molding
M35S – M35 Satin Molding
M55S – M55 Satin Molding
PLT – Platinum

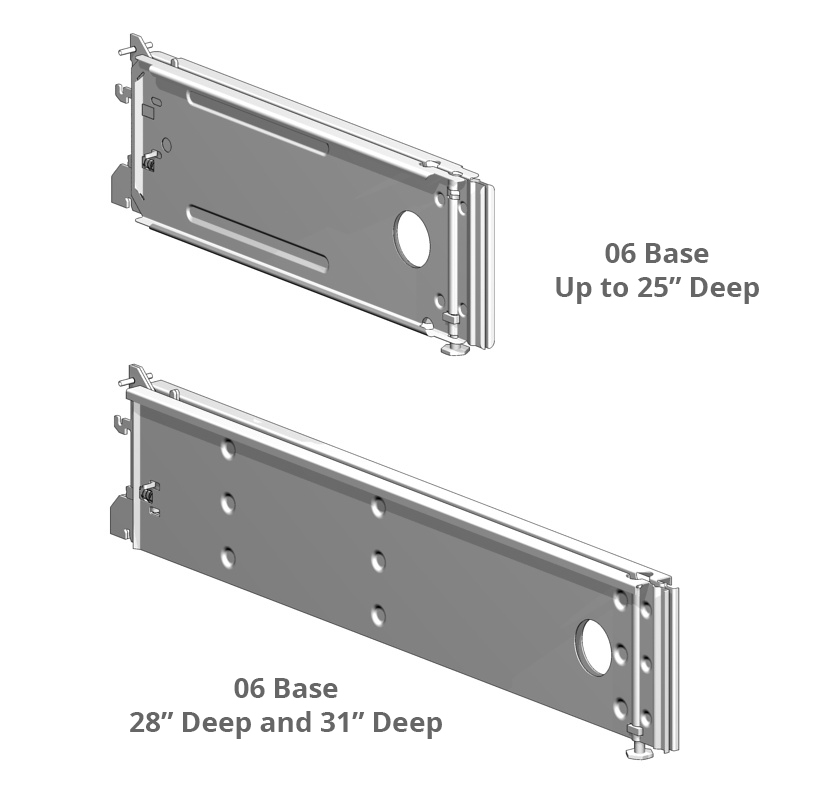

Spring Locking Base Bracket

Product Details

  • Features 2” conduit hole for greater electrical access
  • Includes leveling legs for uneven flooring
  • Install straight in using integral spring latch
  • 28″ deep and 31″ deep base brackets are only Heavy Duty.  There are no Standard Duty 28″ deep or 31″ deep base brackets.



NOTE
Actual Bracket length is 3″ less than nominal Deck depth. Order CHR Base Brackets when using Open Base Fronts. (This is done automatically when section/end part numbers are ordered with OBF’s.)

View product details

Product Options and Numbers

Example Part #:   BB  19   06   S   PTD



Base Bracket: BB (Standard Duty), BBH (Heavy Duty)

Deck Depth BB: 13″, 16″, 19”, 22”, 25”, 28”, 31”

Deck Depth BBH: 16″, 19”, 22”, 25”

Base Height: 06, LB

Spring Locking Base Bracket: S

Standard Finish: PTD, Optional CHR

* BB28 and BB31 are rated for Heavy Duty

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
PTD – Painted Random
CHR – Charcoal Black

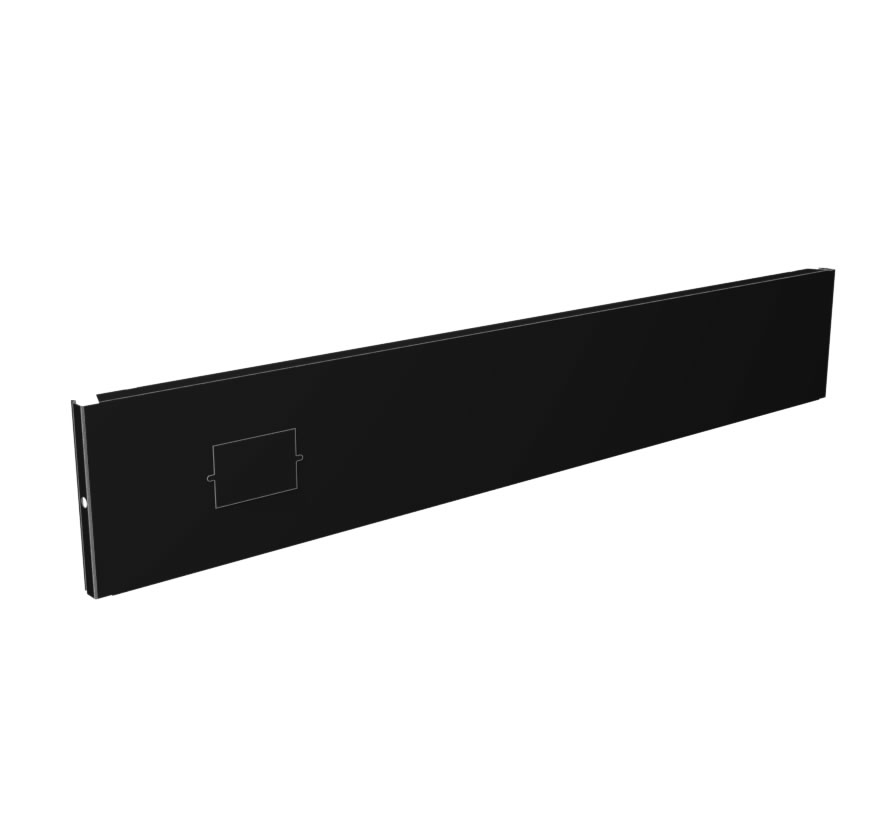

Closed Base Front

Product Details

  • 3’ and 4’ Fronts have an electrical knockout
  • Snaps in place beneath Deck to cover gap between Deck and floor
  • Fits flush with floor regardless of leveling adjustments
View product details

Product Options and Numbers

Example Part #:   CBF   4   06   CHR



Close Base Front: CBF

Section Width: 2’, 30”, 3’, 4’

Base Height: 06, LB

Standard Finish: CHR

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
CHR – Charcoal Black

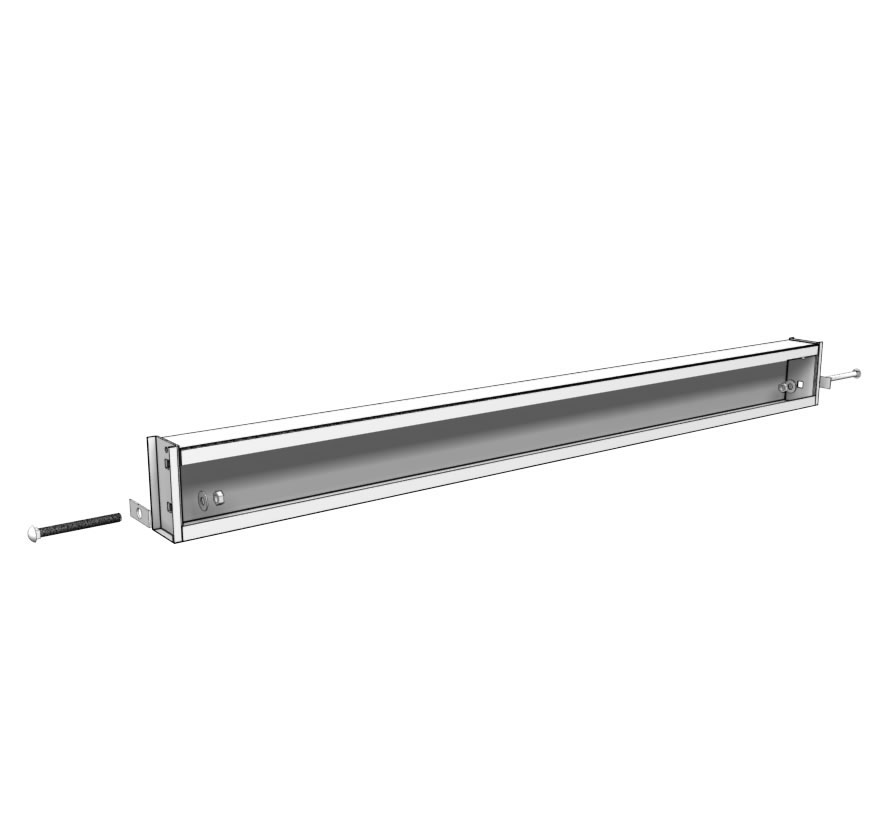

Open Back Spanner with Hardware

Product Details

View product details

Product Options and Numbers

Example Part #:  OBS3   PLT



3′ Open Back Spanner: OBS3

4′ Open Back Spanner: OBS4

Standard Finish: PLT, Optional Catalog Colors



Suffix Key
PLT – Platinum

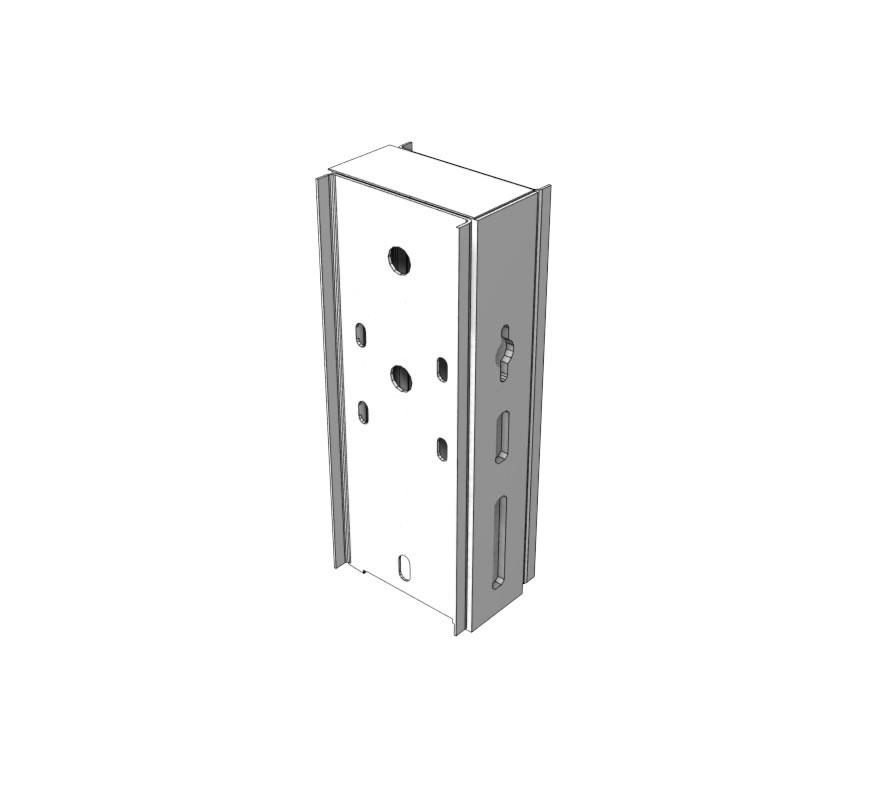

Steel Display Deck Uprite

Product Details

View product details

Product Options and Numbers

Example Part #:   SDDU   06   PLT



Steel Display Uprite: SDDU

Base Type: 06, LB

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
06 – 06 Base (8″H)
LB – Low Base (6″H)
PLT – Platinum
