Wire Back Retainer Extension Assembly

Our versatile Wire Grid Backs offer display solutions that are flexible, low-maintenance and durable. Choose from four Wire Back options: 3×3 Grid, Slot Grid, Multi Grid, and Louver Grid.

Wire Back Retainer Extension Assembly

Our versatile Wire Grid Backs offer display solutions that are flexible, low-maintenance and durable. Choose from four Wire Back options: 3×3 Grid, Slot Grid, Multi Grid, and Louver Grid.

Product Details

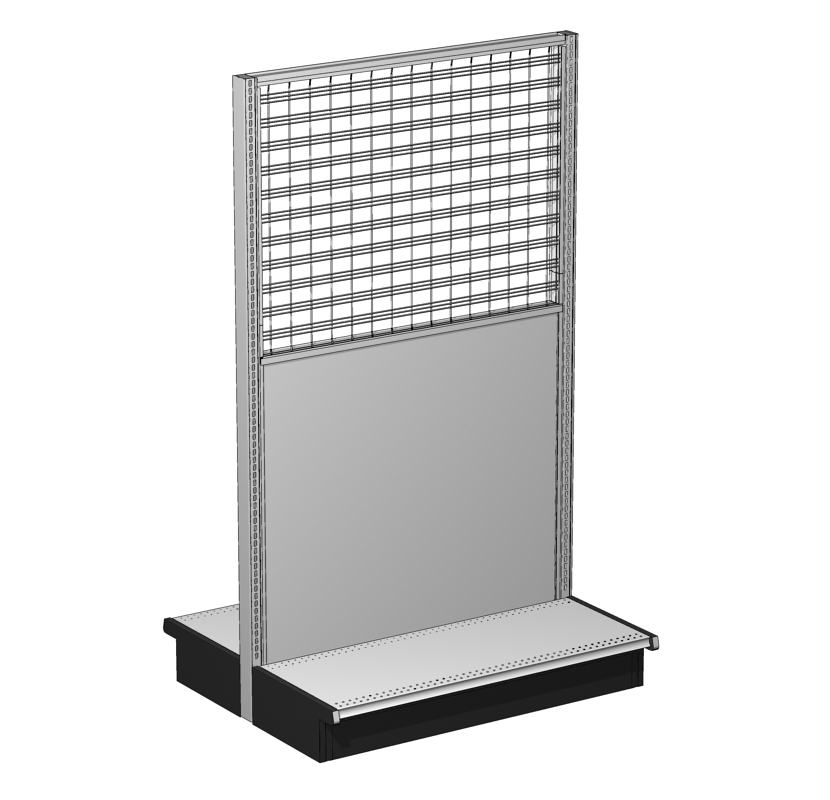

  • Use to extend grid or combinations of grid and hardboard on top of wall or island sections
  • Can be installed in wall or island sections will taller one-piece uprites and lower hardboard backs or in extension sections that utilize uprite extensions.
  • Maximum height when installed in extension uprites is 48″.



INCLUDES (Ordered Separately)

A.  Vertical Retainers

B.  Horizontal Retainers

C.  Top Rails (2 per Section)

D.  Grid Back(s)

NOTE: Extension Uprites not shown and ordered separately

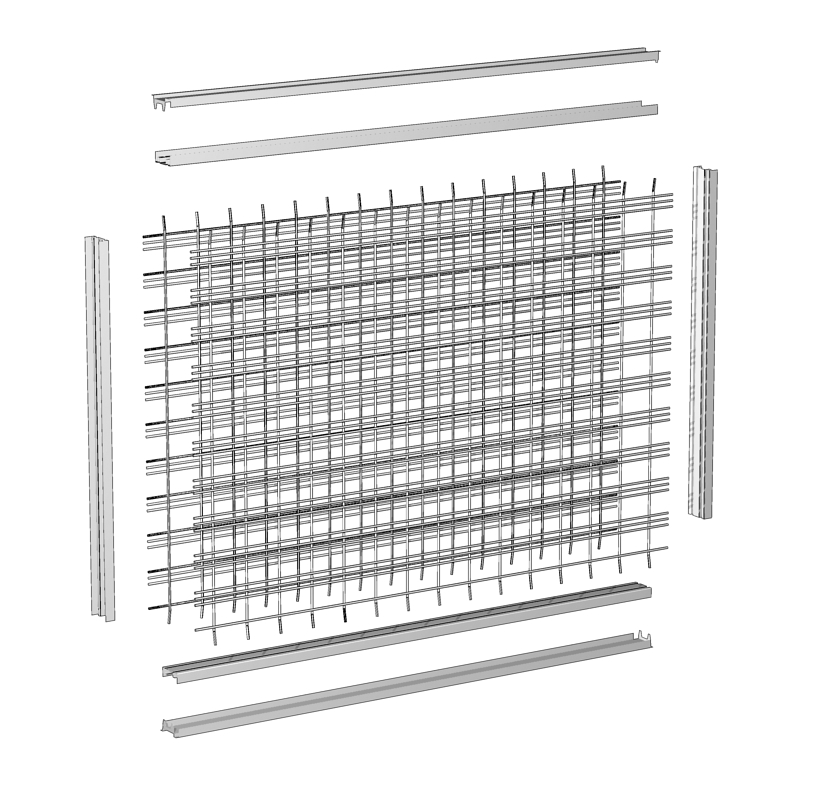

Wire Back Extension Assembly

















WIRE BACK OPTIONS

3x3 Wiregrid Detail
WG = 3×3 Wire Grid

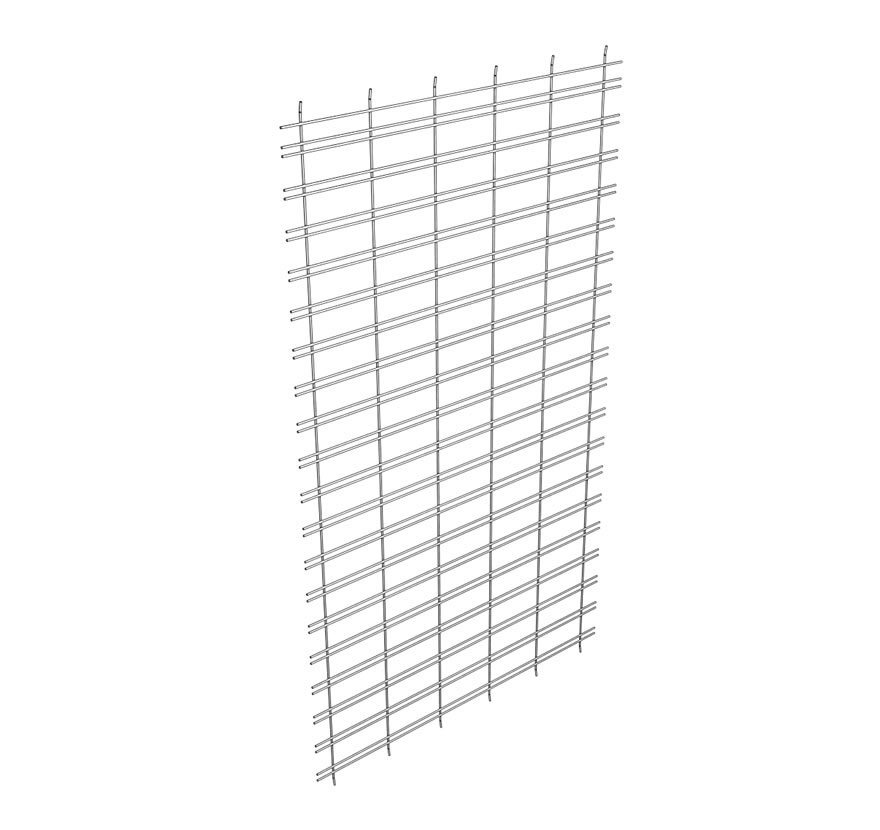

Slotgrid Detail
SG = Slot Grid

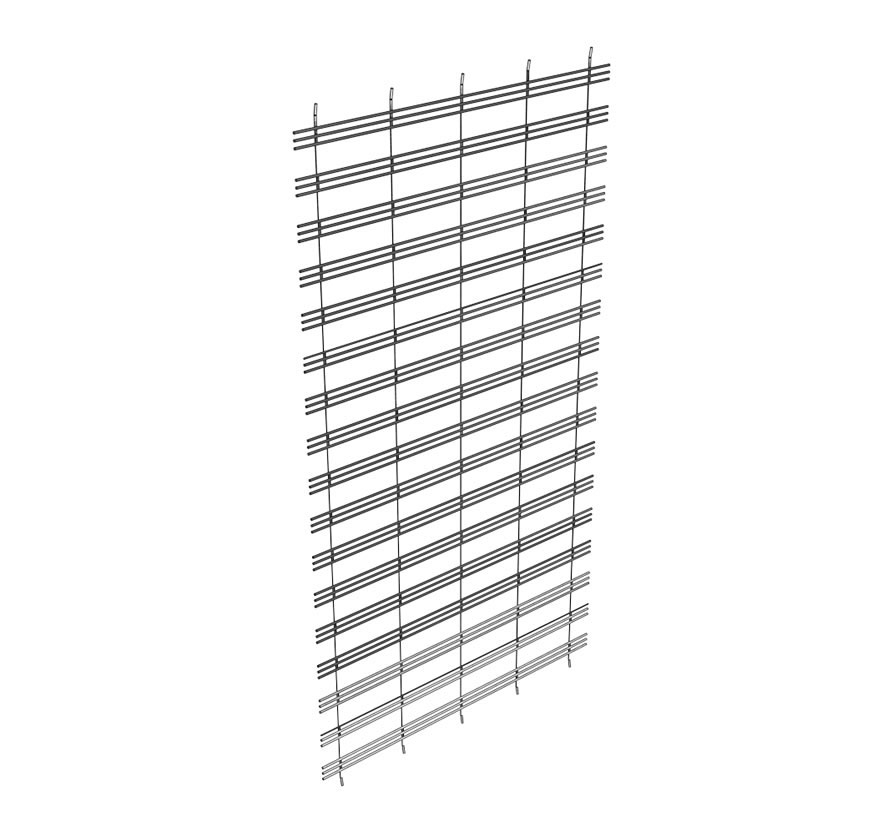

Multigrid Detail
MG = Multi-Grid
LouverGrid Detail
LG = Louver Grid



















WIRE RETAINER OPTIONS

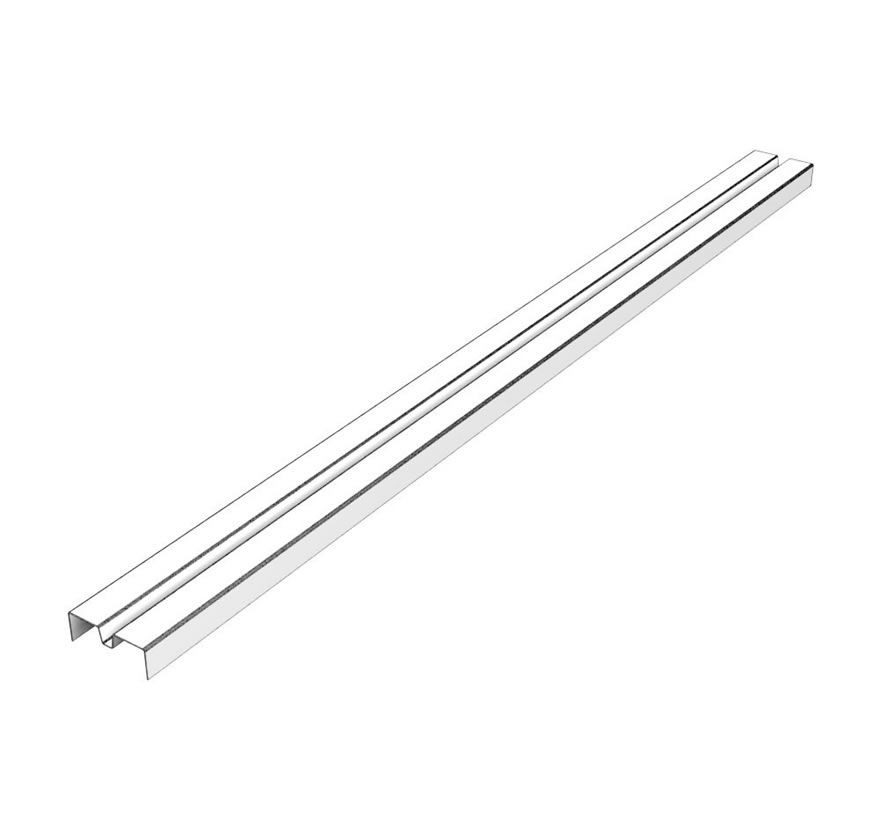

Single Back Wire Grid Assembly Retainer Lozier



Wire-Grid-Assembly-Retainers---Single
S = Single Back
Wire-Grid-Assembly-Retainers---Double
D = Double Back
Wire-Grid-Assembly-Retainers---Triple
T = Triple Back














Save

How to Order

Suffix Key
S – Single Centered Back
D – Double Back
T – Triple Back
WG – 3×3 Wire Grid Back
SG – Slot Grid Back
LG – Louver Grid Back
MG – Mulit-Grid Back

WIRE GRID BACK EXTENSION CHART

Island or Wall Section Height Section Width Single Centered Back Grid Flush Both Sides Grid Flush Both Sides Mtk Ptd 2 Sides Center
6″ 2′ Qty 2 RES06 Qty 2 RES24 Qty 2 RED06 Qty 2 RED24 Qty 2 RET06 Qty 2 RET24
6″ 30″ Qty 2 RES06 Qty 2 RES30 Qty 2 RED06 Qty 2 RED24 Qty 2 RET06 Qty 2 RET30
6″ 3′ Qty 2 RES06 Qty 2 RES36 Qty 2 RED06 Qty 2 RED24 Qty 2 RET06 Qty 2 RET36
6″ 4′ Qty 2 RES06 Qty 2 RES48 Qty 2 RED06 Qty 2 RED24 Qty 2 RET06 Qty 2 RET48
12″ 2′ Qty 2 RES12 Qty 2 RES24 Qty 2 RED12 Qty 2 RED24 Qty 2 RET12 Qty 2 RET24
12″ 30″ Qty 2 RES12 Qty 2 RES30 Qty 2 RED12 Qty 2 RED24 Qty 2 RET12 Qty 2 RET30
12″ 3′ Qty 2 RES12 Qty 2 RES36 Qty 2 RED12 Qty 2 RED24 Qty 2 RET12 Qty 2 RET36
12″ 4′ Qty 2 RES12 Qty 2 RES48 Qty 2 RED12 Qty 2 RED24 Qty 2 RET12 Qty 2 RET48
18″ 2′ Qty 2 RES18 Qty 2 RES24 Qty 2 RED18 Qty 2 RED24 Qty 2 RET18 Qty 2 RET24
18″ 30″ Qty 2 RES18 Qty 2 RES30 Qty 2 RED18 Qty 2 RED24 Qty 2 RET18 Qty 2 RET30
18″ 3′ Qty 2 RES18 Qty 2 RES36 Qty 2 RED18 Qty 2 RED24 Qty 2 RET18 Qty 2 RET36
18″ 4′ Qty 2 RES18 Qty 2 RES48 Qty 2 RED18 Qty 2 RED24 Qty 2 RET18 Qty 2 RET48
24″ 2′ Qty 4 RES24 Qty 4 RED24 Qty 4 RET24
24″ 30″ Qty 2 RES24 Qty 2 RES30 Qty 2 RED24 Qty 2 RED24 Qty 2 RET24 Qty 2 RET30
24″ 3′ Qty 2 RES24 Qty 2 RES36 Qty 2 RED24 Qty 2 RED24 Qty 2 RET24 Qty 2 RET36
24″ 4′ Qty 2 RES24 Qty 2 RES48 Qty 2 RED24 Qty 2 RED24 Qty 2 RET24 Qty 2 RET48
30″ 2′ Qty 2 RES30 Qty 2 RES24 Qty 2 RED30 Qty 2 RED24 Qty 2 RET30 Qty 2 RET24
30″ 30″ Qty 2 RES30 Qty 2 RES30 Qty 2 RED30 Qty 2 RED24 Qty 2 RET30 Qty 2 RET30
30″ 3′ Qty 2 RES30 Qty 2 RES36 Qty 2 RED30 Qty 2 RED24 Qty 2 RET24 Qty 2 RET36
30″ 4′ Qty 2 RES30 Qty 2 RES48 Qty 2 RED30 Qty 2 RED24 Qty 2 RET24 Qty 2 RET48
36″ 2′ Qty 2 RES36 Qty 2 RES24 Qty 2 RED36 Qty 2 RED24 Qty 2 RET36 Qty 2 RET24
36″ 30″ Qty 2 RES36 Qty 2 RES30 Qty 2 RED36 Qty 2 RED30 Qty 2 RET36 Qty 2 RET30
36″ 3′ Qty 4 RES36 Qty 4 RED36 Qty 4 RET36
36″ 4′ Qty 2 RES36 Qty 2 RES48 Qty 2 RED36 Qty 2 RED48 Qty 2 RES36 Qty 2 RES48
42″ 2′ Qty 2 RES42 Qty 2 RES24 Qty 2 RED42 Qty 2 RED24 Qty 2 RET42 Qty 2 RET24
42″ 30″ Qty 2 RES42 Qty 2 RES30 Qty 2 RED42 Qty 2 RED30 Qty 2 RET42 Qty 2 RET30
42″ 3′ Qty 2 RES42 Qty 2 RES36 Qty 2 RED42 Qty 2 RED36 Qty 2 RET42 Qty 2 RET36
42″ 4′ Qty 2 RES42 Qty 2 RES48 Qty 2 RED42 Qty 2 RED48 Qty 2 RET42 Qty 2 RET48
48″ 2′ Qty 2 RES48 Qty 2 RES24 Qty 2 RED48 Qty 2 RED24 Qty 2 RET48 Qty 2 RET24
48″ 30″ Qty 2 RES48 Qty 2 RES30 Qty 2 RED48 Qty 2 RED30 Qty 2 RET48 Qty 2 RET30
48″ 3′ Qty 2 RES48 Qty 2 RES36 Qty 2 RED48 Qty 2 RED36 Qty 2 RET48 Qty 2 RET36
48″ 4′ Qty 4 RES48 Qty 4 RED48 Qty 4 RET48

WIRE GRID BACK EXTENSION CHART

Section Height Section Width WG 3×3 Slotgrid Multigrid Louvergrid MTK 1 Side MTK 2 Side
6″ 2′ RBE206WG RBE206SG RBE206MG RBE206LG RBE206M RBE206M2
6″ 30″ RBE3006WG RBE3006SG RBE3006MG RBE3006LG RBE3006M RBE3006M2
6″ 3′ RBE306WG RBE306SG RBE306MG RBE306LG RBE306M RBE306M2
6″ 4′ RBE406WG RBE406SG RBE406MG RBE406LG RBE406M RBE406M2
12″ 2′ RBE212WG RBE212SG RBE212MG RBE212LG RBE212M RBE212M2
12″ 30″ RBE3012WG RBE3012SG RBE3012MG RBE3012LG RBE3012M RBE3012M2
12″ 3′ RBE312WG RBE312SG RBE312MG RBE312LG RBE312M RBE312M2
12″ 4′ RBE412WG RBE412SG RBE412MG RBE412LG RBE412M RBE412M2
18″ 2′ RBE218WG RBE218SG RBE218MG RBE218LG RBE218M RBE218M2
18″ 30″ RBE3018WG RBE3018SG RBE3018MG RBE3018LG RBE3018M RBE3018M2
18″ 3′ RBE318WG RBE318SG RBE318MG RBE318LG RBE318M RBE318M2
18″ 4′ RBE418WG RBE418SG RBE418MG RBE418LG RBE418M RBE418M2
24″ 2′ RBE224WG RBE224SG RBE224MG RBE224LG RBE224M RBE224M2
24″ 30″ RBE3024WG RBE3024SG RBE3024MG RBE3024LG RBE3024M RBE3024M2
24″ 3′ RBE324WG RBE324SG RBE324MG RBE324LG RBE324M RBE324M2
24″ 4′ RBE424WG RBE424SG RBE424MG RBE424LG RBE424M RBE424M2
30″ 2′ RBE230WG RBE230SG RBE230MG RBE230LG RBE230M RBE230M2
30″ 30″ RBE3030WG RBE3030SG RBE3030MG RBE3030LG RBE3030M RBE3030M2
30″ 3′ RBE330WG RBE330SG RBE330MG RBE330G RBE330M RBE330M2
30″ 4′ RBE430WG RBE430SG RBE430MG RBE430LG RBE430M RBE430M2
36″ 2′ RBE236WG RBE236SG RBE236MG RBE236LG RBE236M RBE236M2
36″ 30″ RBE3036WG RBE3036SG RBE3036MG RBE3036LG RBE3036M RBE3036M2
36″ 3′ RBE336WG RBE336SG RBE336MG RBE336LG RBE336M RBE336M2
36″ 4′ RBE436WG RBE436SG RBE436MG RBE436LG RBE436M RBE436M2
42″ 2′ RBE242WG RBE242SG RBE242MG RBE242LG RBE242M RBE242M2
42″ 30″ RBE3042WG RBE3042SG RBE3042MG RBE3042LG RBE3042M RBE3042M2
42″ 3′ RBE342WG RBE342SG RBE342MG RBE342LG RBE342M RBE342M2
42″ 4′ RBE442WG RBE442SG RBE442MG RBE442LG RBE442M RBE442M2
48″ 2′ RBE248WG RBE248SG RBE248MG RBE248LG RBE248M RBE248M2
48″ 30″ RBE3048WG RBE3048SG RBE3048MG RBE3048LG RBE3048M RBE3048M2
48″ 3′ RBE348WG RBE348SG RBE348MG RBE348LG RBE348M RBE348M2
48″ 4′ RBE448WG RBE448SG RBE448MG RBE448LG RBE448M RBE448M2

Top Rail

Product Details

  • All Island and Wall Sections require one Top, Center and Bottom Rail
  • 2’ and 30” sections use two Top Rails to make a Splicer Rail
  • Electrical knockouts included on all Rails
View product details

Product Options and Numbers

Example Part #:   R   4   T   PLT



Rails: R

Width: 2’, 30”, 3’, 4’

Top Rail: T

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum Color

Wire Grid Assembly Retainers

Product Details

  • Wire Backs require perimeter retainers to adapt them for use in standard Lozier Uprites
  • For the most efficient length configuration, order lengths per the Wire Back Assembly
  • Order two RE_ to be used in the horizontal application
  • Order a minimum two RE_ to be used in the vertical application
  • For sections taller than 54”H (RE_48) and up to 96″, order RU_upper retainer to correspond to the overall Back height
  • For Backs taller than 96”H order one Splicer Rail (R_S), two horizontal retainers (RE_), and two vertical retainers (RE_)



Wire-Grid-Assembly-Retainers---Single
S = Single Back
Wire-Grid-Assembly-Retainers---Double
D = Double Back
Wire-Grid-Assembly-Retainers---Triple
T = Triple Back
View product details

Product Options and Numbers

Example Part #:   RE  S   48   PLT



Wire Grid Assembly Retainer: RE, RU

Retainer Style: S, D, T

Height: 06”, 12”, 18”, 24”, 30”, 36”, 42”, 48”

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
RE – Extension Back Retainer
RU – Upper Back Retainer
S – Single Back Retainer
D – Double Back Retainer
T – Triple Back Retainer
PLT – Platinum

Wire Back Retainer Extensions

Product Details

  • Choose the Back style that meets your visual merchandising needs
  • Order RBE_ 6” shorter than Uprite (Example: U72, order RBE466WG. One-piece backs up to 90”H)



3x3 Wiregrid Detail
WG = 3×3 Wire Grid
Slotgrid Detail
SG = Slot Grid
Multigrid Detail
MG = Multi-Grid
LouverGrid Detail
LG = Louver Grid
View product details

Product Options and Numbers

Example Part #:   RBE   4   54   WG   PLT



Wire Back Retainer Extension: RBE

Width: 2’, 30”, 3’, 4’

Height: 06”, 12”, 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”

Back Style: WG, SG, LG, MG, P, M, ME, P2, M2

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
WG – 3 x 3 Wire Grid Back
SG – Slot Grid Back
LG – Louver Grid Back
MG – Multi-Grid Back
P – Pegboard Back
M – Marteck Back
ME – Econo Marteck Back
P2 – Single Pegboard Back, painted two sides
M2 – Single Marteck Back, painted both sides
PLT  – Platinum
Need Something Different? Let’s Talk.

Work with our design and engineering teams to create fixtures that meet your needs. We have access to a wide variety of materials, colors and capabilities to bring your vision to life.

Learn more

Lozier is here to help.

Check out the Services section for all the services Lozier has to offer.  Have an idea you want to explore? Our design and engineering teams are ready to help.

Learn more
