Wall Section (1/4″ Backs)

Wall Section (1/4″ Backs)

Wall Section - Assembled
  • Wall Section - Assembled

Roll over image to zoom in.

Contact to Order
Download PDF Print Email

Product Details

Standard Duty- Load Rating

  • Low Base -15,000 inch lbs unbalanced
  • 06 Base- 12,000 inch lbs unbalanced

Heavy Duty- Load Rating

  • Low Base -18,000 inch lbs unbalanced
  • 06 Base- 20,000 inch lbs unbalanced



DIMENSIONS

Wall Section- Color

How to Order

STARTER QTY. ADD-ON QTY.
A. Uprite 2 1
B. Base Bracket (Standard or Heavy Duty) 2 1
C. Deck (Standard or Heavy Duty) 1 1
D. Base Front (Open or Closed) 1 1
E. Top Rail 1 1
F. Center Rail (2 per section 96H-120H) 1 or 2 1 or 2
G. Bottom Rail 1 1
H. Splicer Rail (Sections 78H-120H) Use 2 top rails for splicer on 2′ and 30″ wide sections. 1 1
I. Back Material (1 or 2 per side) See Back Chart See Back Chart
J. Base End Trim (Pair) 1 0
K. Uprite End Trim 2 0

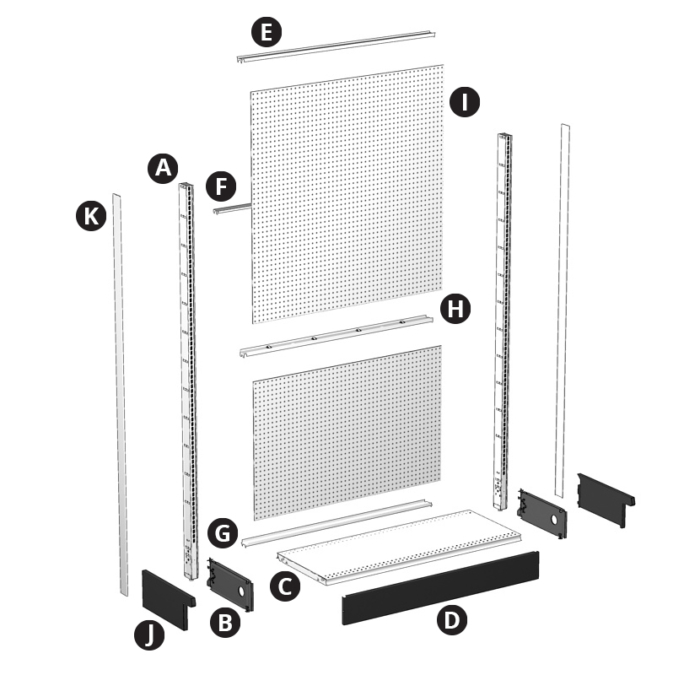

STARTER

Wall Section - Starter - with Letters

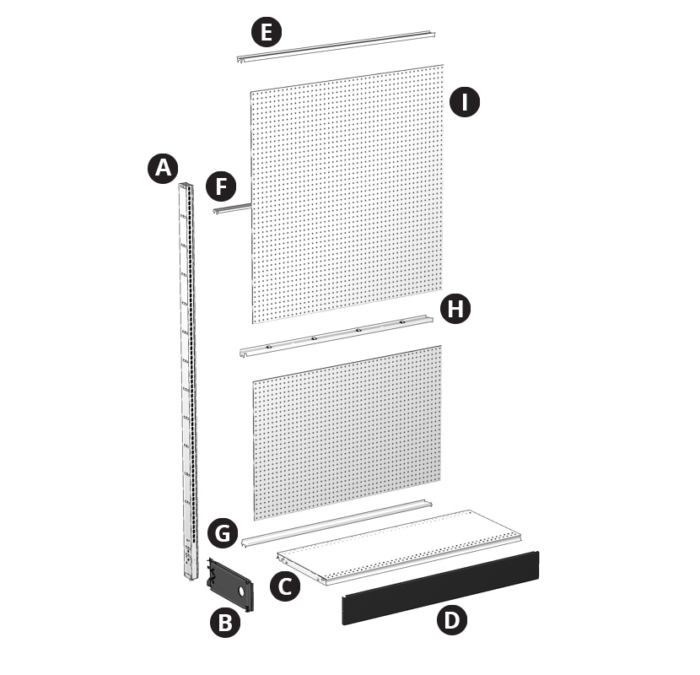

ADD-ON

Wall Section - Add-On - with Letters

ORDERING INSTRUCTIONS FOR ISLAND SECTIONS 1/4″ BACK MATERIAL



STARTER QTY. ADD-ON QTY.
A. Uprite (Standard or Heavy Duty) 2 1
B. Base Set (Standard or Heavy Duty) 1 1
C. Hardboard Back and Rail Set 1-Sided 1 1
D. Uprite End Trim 2 0

Uprite

Product Details

  • 3/16” thick face channel
  • 1” slotted on center for maximum flexibility
  • Use for Wall and Island Sections
  • Steel welded construction
  • Includes side flanges to retain Back material, leveling leg for uneven floors
  • Includes Top Caps on Uprites 36”-66”H

uprite diagram

View product details

Product Options and Numbers

Example Part #:   U   42    PLT



Uprite: U, UH

U Height: 30”, 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

UH Height: 72”, 78”, 84”, 90”, 96”, 108”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
U – Uprite
UH – Heavy Duty Uprite

Hardboard Back and Rail Set 1-Sided

Product Details

  • Set includes all rails and backs for a typical Wall Section using hardboard backs.
  • 1 hardboard back per side up to 72″H
  • 2 hardboard backs per side 78″H – 120″H (See Back Chart for sizes)
View product details

Product Options and Numbers

INCLUDES:

A.  Top Rail

B.  Center Rail(s)

C.  Splicer Rail (if applicable)

D.  Bottom Rail

E.  Hardboard Backs

HARDBOARD BACK AND RAIL SET 1-SIDED

Width: 24″, 30″. 36″, 48″

Uprite Height: 36″, 42″, 48″, 54″, 60″, 66″, 72″, 78″, 84″, 90″, 96″, 102″, 108″, 114″, 120″

Back Finish Type: Painted, Unpainted

Back Style: Martek, Martek Econo, Peg, Peg Woodgrain, Woodgrain

Back Finish: Martek or Peg PLT Optional Catalog Colors, Martek Econo N/A, Peg Woodgrain or Woodgrain IA1

Rail Finish: PLT Optional Catalog Colors

Suffix Key
N/A – Unfinished
PLT – Platinum
IA1 – Oak Melamine

Base Set

Product Details

  • 06 or Low Base height
  • Standard or Heavy Duty
  • Starter and Add-On

Order 1 for each side of the gondola section (Starter or Add-On)





View product details

Product Options and Numbers

INCLUDES:

A.  Base Bracket(s) (Standard or Heavy Duty)

B.  Base Front (Open or Closed)

C.  S-Series Deck (Standard Duty-Optional Reinforced)

D.  Base End Trim











BASE SET

Type: Add On, Starter

Base Bracket Style: Heavy Duty, Standard Duty

Width: 2′, 30″, 3′, 4′

Depth: 13″, 16″, 19″, 22″, 25″, 28″, 31″

Deck Style: Heavy Duty, S-Style, S-Style Reinforced

Molding Type: M13 Painted, M13 Satin,M35 Painted, M35 Satin,M55 Painted,M55 Satin,No Molding, MR1 Painted, MR1 Satin

Base Height: 06 Base, Low Base

Base Front Style: Closed, Open

Base Finish: CHR

Deck Finish: PLT Optional Catalog Colors

Deck Top Finish: LAX Optional Catalog Laminates (Laminated Decks Only-Requires MR1 Molding)

Molding Finish: Omit No Molidng, SAT, PLT Painted Optional Catalog Colors

STARTER

Base Set - Starter - with Letters

ADD-ON

Base Set - Add-On - with Letters
Suffix Key
CHR – Charcoal Black
LAX – Platinum Laminate
PLT – Platinum
SAT – Satin Molding
M13 – M13 Tag Molding
M35 – M35 Tag Molding
M55 – M55 Tag Molding

Uprite and Extension Uprite End Trim

Product Details

  • One-piece trim (Two-pieces if 102”-144”H) snaps onto first and last Uprite or Extension Uprite in a run
  • Can be used on both sides of Extension Uprites where Extension Backs are not used
View product details

Product Options and Numbers

Example Part #:   UET   48    PLT



Uprite/Extension Uprite End Trim: UET

Height: 6″, 12″, 18”, 24”, 30” 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
