Multi-Function Shelf Assemblies

Multi-Function Shelf Assemblies

Product Details

  • Available in two types: Regular Duty and Heavy Duty
  • Two Shelf styles available: Particleboard or Wire Grid
  • If Shelf Supports are not used, Beam Locking Clips (WS1291 or WS9111) are required
  • Regular Duty: 1,600 – 3,000 lbs evenly distributed
  • Heavy Duty: 3,000 lbs max evenly distributed



Multi Function Beam Profile

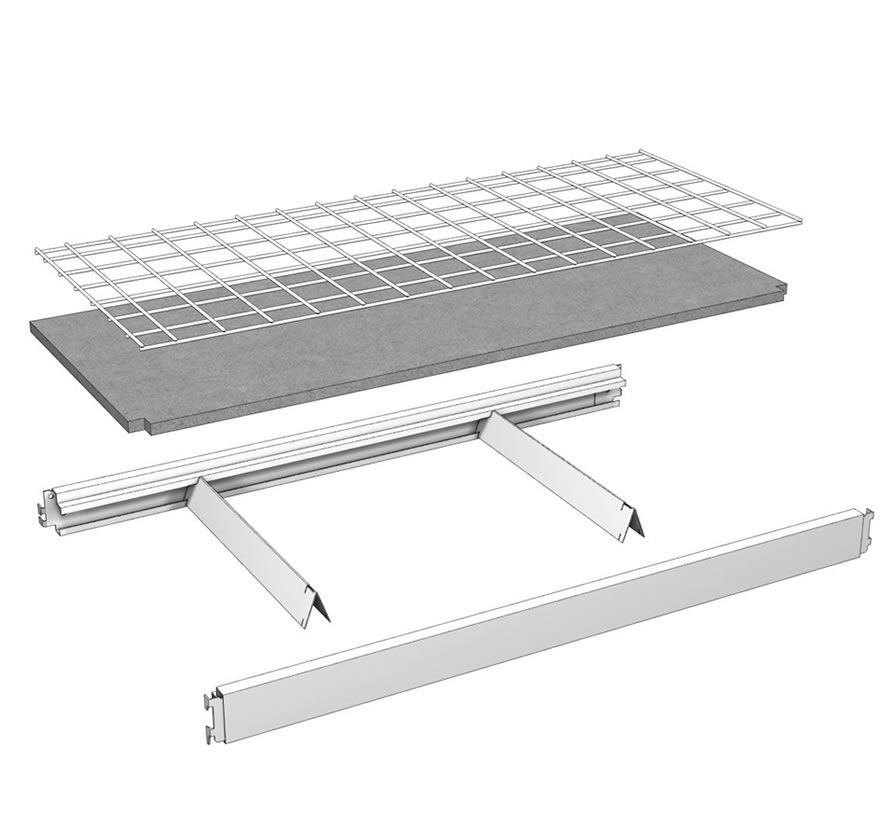

INCLUDES

  • 1 Multi-Function Front Beam
  • 1 Multi-Function Back Beam
  • 1 Multi-Function Shelf, Particleboard or Wire Grid
  • Number of Shelf Supports required for customer application

Product Options and Numbers

Multi-Function Shelf Assembly



Shelf Type: Particleboard Shelf, Wiregrid Shelf

Depth: 13″, 16″, 19″, 22″, 25″, 28″, 31″

Width: 36″, 48″, 72″, 84″, 96″

Number of Shelf Supports: 2, 3, 4

Style: Regular Duty, Heavy Duty

Beam Standard Finish: PLT, Optional Catalog Colors

Shelf Support Standard Finish: PLT, Optional Catalog Colors

Shelf Standard Finish: Particle Board= N/A or S04 Wire Grid = ZNC

Suffix Key
PLT – Platinum
N/A – No Finish
S04 – Seal Coated
ZNC – Zinc Wire Grid
Multi-Function Shelf Capacity (Evenly Distributed Load in Lbs)
Shelf Depth Section Width
(Beam Length)
Number of Regular Duty Shelf Supports with Regular Duty Beams
Number of Heavy Duty Shelf Supports with Heavy Duty Beams
Up to 31″ Deep 2 3 4 2 3
36″ 1,600 2,400 3,000 3,000
48 1,600 2,400 3,000 3,000
72″ 1,600 2,000 2,400 3,000
84″ 1,600 1,800 2,000 3,000
96″ 1,600 1,600 1,600 3,000
