Multi-Function Uprite Assemblies

Multi-Function Uprite Assemblies

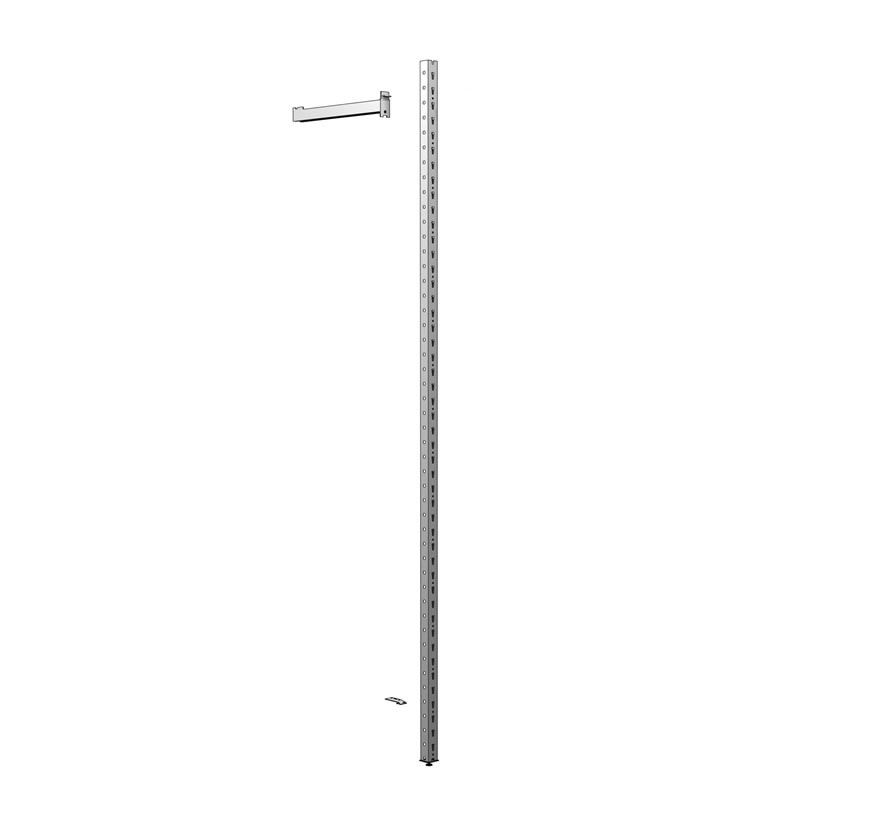

Multi-Function Uprite Assembly
  • Multi-Function Uprite Assembly

Roll over image to zoom in.

Contact to Order
Download PDF Print Email

Product Details

COMPONENTS:

  • Multi-Function Uprite
  • Uprite Brace
  • Uprite/Deck Connector (MF1151)

CAPACITY:

  • Standard Duty MF Post and Gondola Uprite combined – 4,000 lbs max.
  • Reinforced MF Post and Gondola Uprite combined – 5,000 lbs max.

How to Order

Multi-Function Uprite Assembly



Height: 72″, 78″, 84″, 90″, 96″

Depth: 13″, 16″, 19″, 22″, 25″, 28″, 31″

Style: Standard, Reinforced (Reinforced required above 84H)

Uprite and Brace Standard Finish: PLT, Optional Catalog Colors

Deck Connector Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Multi-Function Uprite

Product Details

  • Post face slotted, allows shelf adjustment 2” on center
  • Top Caps included on each Uprite
  • Top Beam can be installed flush with top of Uprite
  • Capacities based on use with Lozier Display Uprite
  • Extra Top Caps can be ordered
  • Standard Duty MF Post and Gondola Uprite combined – 4,000 lbs max
  • Reinforced MF Post and Gondola Uprite combined – 5,000 lbs max
  • Beam locking hardware doesn’t work in top slot







View product details

Product Options and Numbers

Example Part #:   MFU   84   PLT



Multi-Function Uprite : MFU

Height: 72″, 78″, 84″, 90″, 96″

Style: Standard (omit), Reinforced RE

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Multi-Function Uprite Brace

Product Details

  • Attaches to post in field without tools or hardware
  • Optional bolt included with each Brace





View product details

Product Options and Numbers

Example Part #:  MFUB   22   PLT



Multi-Function Uprite Brace: MFUB

Depth: 13″, 16″, 19″, 22″, 25″, 28″, 31″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum

Multi-Function Uprite to Deck Connector

Product Details

  • Rotates into back of post and bolts to display Deck
  • Hardware included



View product details

Product Options and Numbers

Example Part #:  MF1151   PLT

Standard Finish: PLT, Optional Catalog Colors



Suffix Key
PLT – Platinum
