Caster T-Leg Island Section

Convert your Island Gondola into a mobile display.

Caster T-Leg Island Section

Convert your Island Gondola into a mobile display.

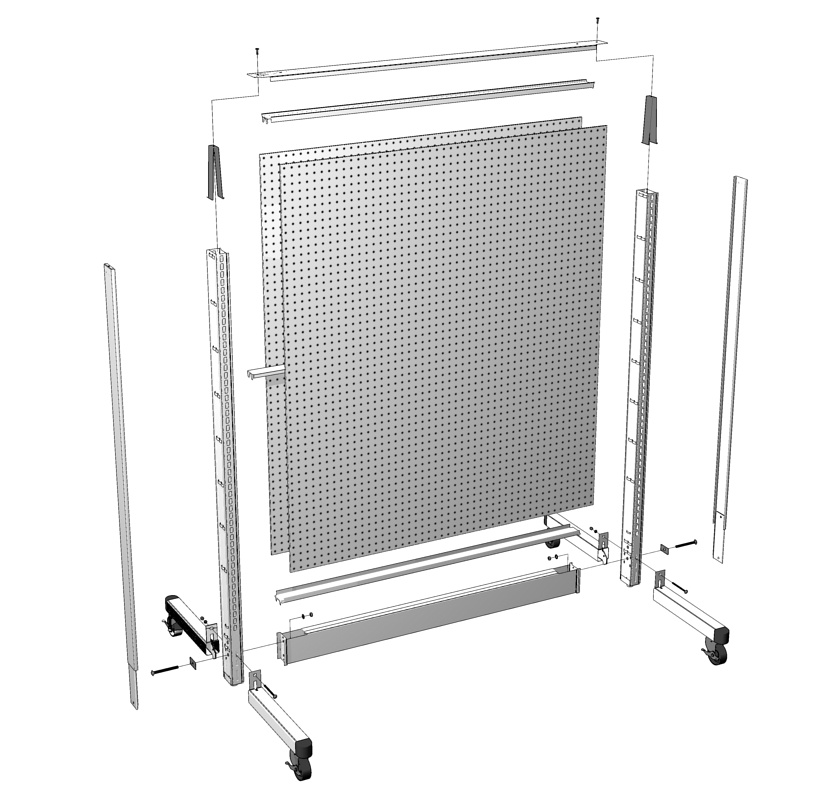

Caster-T-Leg Assembly---Exploded
  • Caster-T-Leg Assembly---Exploded

Roll over image to zoom in.

Contact to Order
Download PDF Print Email Fixture CAD Blocks

NOTE: Subject to Extended Lead Times

Product Details

  • Converts Display Shelving Island into a mobile display
  • Available run lengths up to 12’ long (3’ & 4’ combinations)
  • Consists of 2” sq. Tubular Legs with 3” diameter Caster



COMPONENTS

  • Uprites

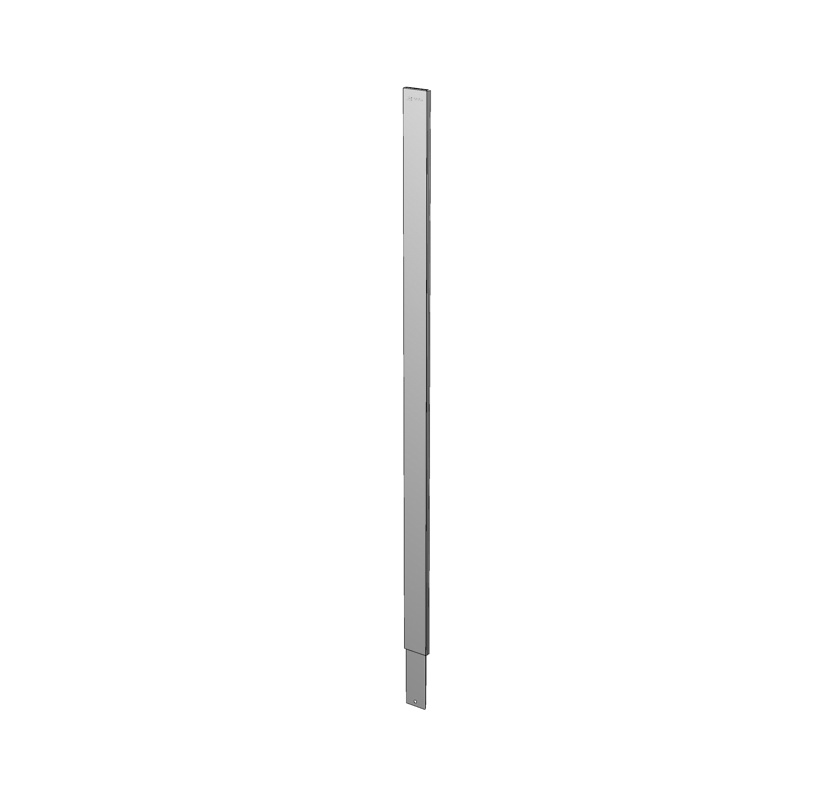

  • T-Leg Uprite End Trims
  • Top Rail
  • Bottom Rail
  • Center Rail
  • Splicer Rail (if applicable)
  • Backs

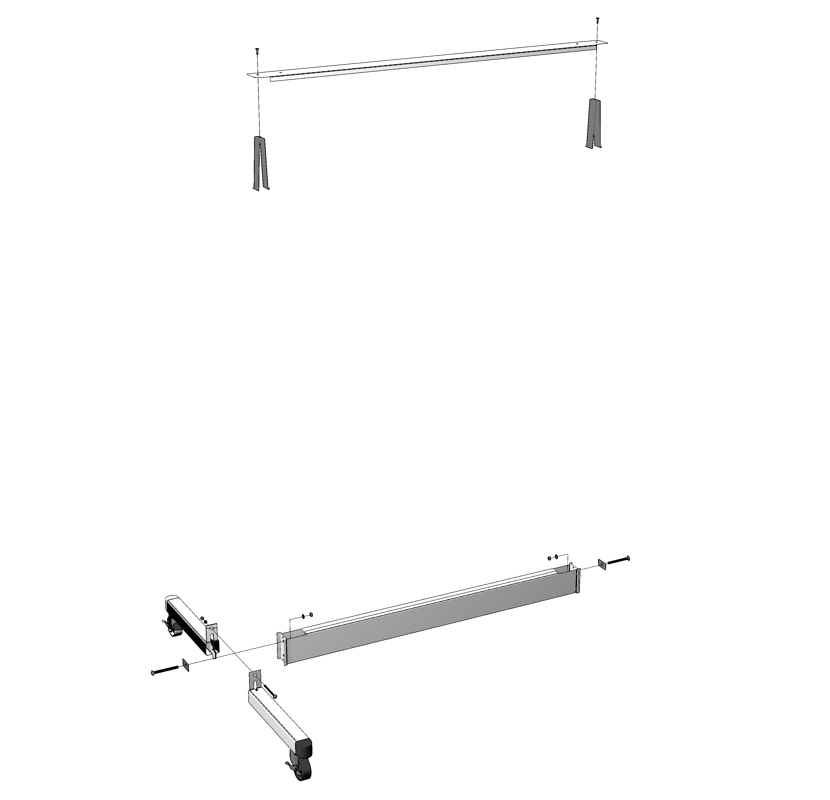

  • Caster T-Leg Base Set (2-sided)



ORDERING INSTRUCTIONS

  • Order desired number of island sections without base brackets, base fronts, decks, uprite end trim or base end trim. (See Gondola System Section)
  • Order 1 Caster T-Leg Base Set (2 sided) for each desired section.
  • Order 1 uprite, two same depth caster T-legs, and two CD412_ end trims to compete the run



 ISLAND
Caster T-Leg Depth
(Both Sides)
 Max. Uprite Height
13″ 78″
16″ 96″
19″ 96″
22″ 96″

How to Order

Island Section (1/4" Backs)

Product Details

Standard Duty- Load Rating

  • Low Base -15,000 inch lbs unbalanced
  • 06 Base- 12,000 inch lbs unbalanced

Heavy Duty- Load Rating

  • Low Base -18,000 inch lbs unbalanced
  • 06 Base- 20,000 inch lbs unbalanced



DIMENSIONS

Island Gondola Dimensions



BACK OPTIONS

Pegboard
Pegboard
Marteck
Marteck
Peg Woodgrain
Peg Woodgrain
Woodgrain
Woodgrain
Econo Marteck
Econo Marteck















Save

Save

View product details

Product Options and Numbers

STARTER QTY. ADD-ON QTY.
A. Uprite 2 1
B. Base Bracket (Standard or Heavy Duty) 4 2

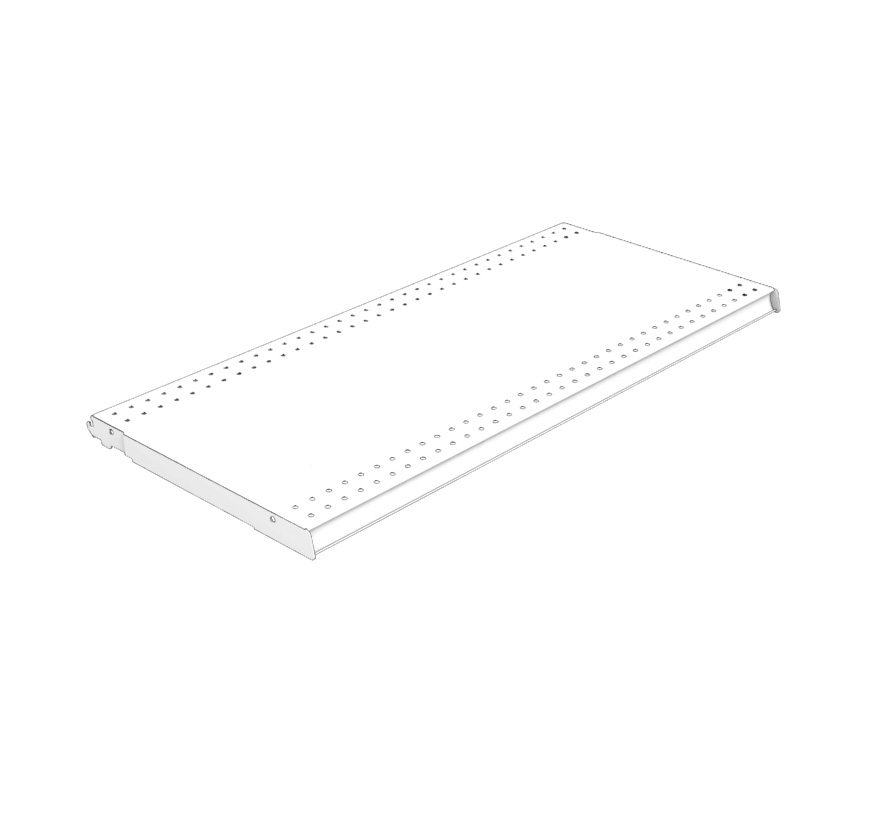

C. Deck (Standard or Heavy Duty) 2 2
D. Base Front (Open or Closed) 2 2
E. Top Rail 1 1
F. Center Rail (2 per section 96H-120H) 1 or 2 1 or 2
G. Bottom Rail 1 1
H. Splicer Rail (Sections 78H-120H) Use 2 top rails for splicer on 2′ and 30″ wide sections. 1 1
I. Back Material (1 or 2 per side) See Back Chart See Back Chart
J. Base End Trim (Pair) 2 0
K. Uprite End Trim 2 0

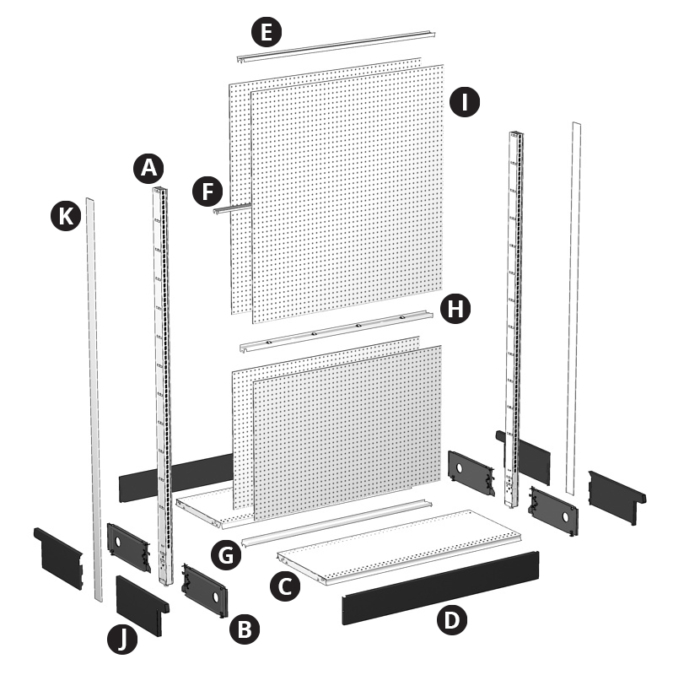

ISLAND SECTION STARTER

Island Section - Starter - with Letters

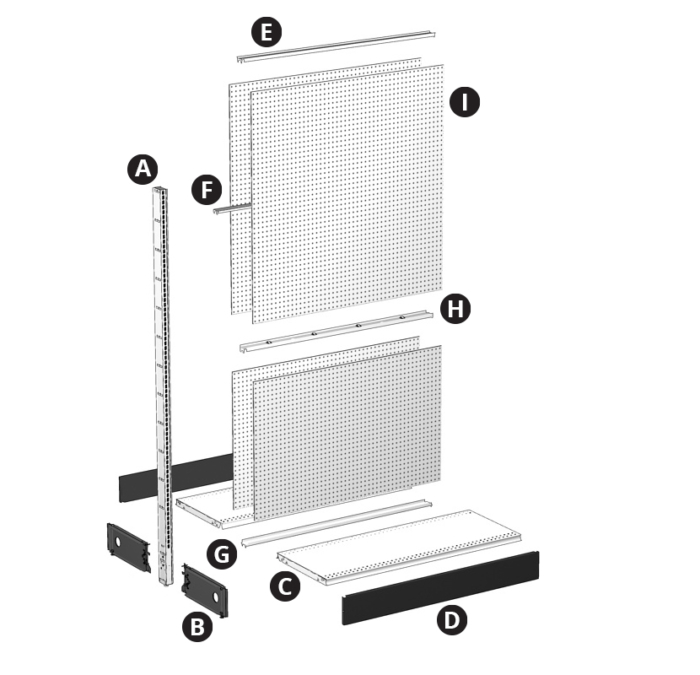

ISLAND SECTION ADD-ON

Island Section - Add-On - with Letters

Island Section (Wiregrid Backs Both Sides)

Product Details

Standard Duty- Load Rating

  • Low Base -15,000 inch lbs unbalanced
  • 06 Base- 12,000 inch lbs unbalanced

Heavy Duty- Load Rating

  • Low Base -18,000 inch lbs unbalanced
  • 06 Base- 20,000 inch lbs unbalanced



  • Grid retainers and Retainer Backs are used to add any combination of single, double, or triple back set to a wall or gondola section.
  • The respective single, double, or triple back retainers are detailed in the Wire Grid Back Retainer Chart.
  • RBE_ style grid or hardboard backs can be used interchangably in any of the grid retainer styles/postions.



DIMENSIONS

Island Gondola Dimensions



WIRE BACK OPTIONS

Slotgrid Detail
SG = Slot Grid
Multigrid Detail
MG = Multi-Grid
LouverGrid Detail
LG = Louver Grid





















WIRE RETAINER OPTIONS

Single Back Wire Grid Assembly Retainer Lozier



Wire-Grid-Assembly-Retainers---Single
S = Single Back
Wire-Grid-Assembly-Retainers---Double
D = Double Back
Wire-Grid-Assembly-Retainers---Triple
T = Triple Back













View product details

Product Options and Numbers

COMPONENTS (ORDER SEPARATELY) STARTER QTY. ADD-ON QTY.
A. Uprite 2 1
B. Base Bracket (Standard or Heavy Duty) 4 2
C. Deck (Standard or Heavy Duty) 2 2
D. Base Front (Open or Closed) 2 2
E. Top Rail 1 1
F. Retainers for Double Backs See Retainer Chart See Retainer Chart
G. Splicer Rail (Sections 102-120H) Use 2 top rails for splicer 2′ and 30″ sections 1 1
H. Grid/Grid backs (1pc to 96H 2pc 102-120H) 2 (See Back Chart) 2 (See Back Chart)
I. Back Retainer Bottom Rail (Heavy Duty 3′ & 4′ Sections) 1 1
J. Base End Trim (Pair) 2 0
K. Uprite End Trim 2 0

STARTER QTY.

ADD-ON QTY.

WIREGRID BACK RETAINER CHART

Island or Wall Section Height Section Width Single Centered Back Grid Flush Both Sides Grid Flush Both Sides Mtk Ptd 2 Sides Center
36 2′ Qty 2 RES30 Qty 2 RES24 Qty 2 RED30 Qty 2 RED24 Qty 2 RET30 Qty 2 RET24
36 30″ Qty 4 RES30 Qty 4 RES30 Qty 4 RET30
36 3′ Qty 3 RES30 Qty 2 RES36 Qty 3 RED30 Qty 2 RED36 Qty 3 RET30 Qty 2 RET36
36 4′ Qty 3 RES30 Qty 2 RES48 Qty 3 RED30 Qty 2 RED48 Qty 3 RET30 Qty 2 RET48
42 2′ Qty 2 RES36 Qty 2 RES24 Qty 2 RED36 Qty 2 RED24 Qty 2 RET36 Qty 2 RET24
42 30″ Qty 2 RES36 Qty 2 RES30 Qty 2 RED36 Qty 2 RED30 Qty 2 RET36 Qty 2 RET30
42 3′ Qty 4 RES36 Qty 4 RED36 Qty 4 RET36
42 4′ Qty 2 RES36 Qty 2 RES48 Qty 2 RED36 Qty 2 RED48 Qty 2 RET36 Qty 2 RET48
48 2′ Qty 2 RES42 Qty 2 RES24 Qty 2 RED42 Qty 2 RED24 Qty 2 RET42 Qty 2 RET24
48 30″ Qty 2 RES42 Qty 2 RES30 Qty 2 RED42 Qty 2 RED30 Qty 2 RET42 Qty 2 RET30
48 3′ Qty 2 RES42 Qty 2 RES36 Qty 2 RED42 Qty 2 RED36 Qty 2 RET42 Qty 2 RET36
48 4′ Qty 2 RES42 Qty 2 RES48 Qty 2 RED42 Qty 2 RED48 Qty 2 RET42 Qty 2 RET48
54 2′ Qty 4 RES48 Qty 4 RED48 Qty 4 RET48
54 30″ Qty 2 RES48 Qty 2 RES30 Qty 2 RED48 Qty 2 RED30 Qty 2 RET48 Qty 2 RET30
54 3′ Qty 2 RES48 Qty 2 RES36 Qty 2 RED48 Qty 2 RED36 Qty 2 RET48 Qty 2 RET36
54 4′ Qty 2 RES48 Qty 2 RES48 Qty 2 RED48 Qty 2 RED48 Qty 2 RET48 Qty 2 RET48
60 2′ Qty 2 RES48 Qty 2 RUS06 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD06 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT06 Qty 2 RET24
60 30″ Qty 2 RES48 Qty 2 RUS06 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD06 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT06 Qty 2 RET30
60 3′ Qty 2 RES48 Qty 2 RUS06 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD06 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT06 Qty 2 RET36
60 4′ Qty 4 RES48 Qty 2 RUS06 Qty 4 RED48 Qty 2 RUD06 Qty 4 RET48 Qty 2 RUT06
66 2′ Qty 2 RES48 Qty 2 RUS12 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD12 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT12 Qty 2 RET24
66 30″ Qty 2 RES48 Qty 2 RUS12 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD12 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT12 Qty 2 RET30
66 3′ Qty 2 RES48 Qty 2 RUS12 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD12 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT12 Qty 2 RET36
66 4′ Qty 4 RES48 Qty 2 RUS12 Qty 4 RED48 Qty 2 RUD12 Qty 4 RET48 Qty 2 RUT12
72 2′ Qty 2 RES48 Qty 2 RUS18 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD18 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT18 Qty 2 RET24
72 30″ Qty 2 RES48 Qty 2 RUS18 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD18 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT18 Qty 2 RET30
72 3′ Qty 2 RES48 Qty 2 RUS18 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD18 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT18 Qty 2 RET36
72 4′ Qty 4 RES48 Qty 2 RUS18 Qty 4 RED48 Qty 2 RUD18 Qty 4 RET48 Qty 2 RUT18
78 2′ Qty 2 RES48 Qty 2 RUS24 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD24 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT24 Qty 2 RET24
78 30″ Qty 2 RES48 Qty 2 RUS24 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD24 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT24 Qty 2 RET30
78 3′ Qty 2 RES48 Qty 2 RUS24 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD24 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT24 Qty 2 RET36
78 4′ Qty 4 RES48 Qty 2 RUS24 Qty 4 RED48 Qty 2 RUD24 Qty 4 RET48 Qty 2 RUT24
84 2′ Qty 2 RES48 Qty 2 RUS30 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD30 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT30 Qty 2 RET24
84 30″ Qty 2 RES48 Qty 2 RUS30 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD30 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT30 Qty 2 RET30
84 3′ Qty 2 RES48 Qty 2 RUS30 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD30 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT30 Qty 2 RET36
84 4′ Qty 4 RES48 Qty 2 RUS30 Qty 4 RED48 Qty 2 RUD30 Qty 4 RET48 Qty 2 RUT30
90 2′ Qty 2 RES48 Qty 2 RUS36 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD36 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT36 Qty 2 RET24
90 30″ Qty 2 RES48 Qty 2 RUS36 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD36 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT36 Qty 2 RET30
90 3′ Qty 2 RES48 Qty 2 RUS36 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD36 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT36 Qty 2 RET36
90 4′ Qty 4 RES48 Qty 2 RUS36 Qty 4 RED48 Qty 2 RUD36 Qty 4 RET48 Qty 2 RUT36
96 2′ Qty 2 RES48 Qty 2 RUS42 Qty 2 RES24 Qty 2 RED48 Qty 2 RUD42 Qty 2 RED24 Qty 2 RET48 Qty 2 RUT42 Qty 2 RET24
96 30″ Qty 2 RES48 Qty 2 RUS42 Qty 2 RES30 Qty 2 RED48 Qty 2 RUD42 Qty 2 RED30 Qty 2 RET48 Qty 2 RUT42 Qty 2 RET30
96 3′ Qty 2 RES48 Qty 2 RUS42 Qty 2 RES36 Qty 2 RED48 Qty 2 RUD42 Qty 2 RED36 Qty 2 RET48 Qty 2 RUT42 Qty 2 RET36
96 4′ Qty 4 RES48 Qty 2 RUS42 Qty 4 RED48 Qty 2 RUD42 Qty 4 RET48 Qty 2 RUT42
102 2′ Qty 4 RES48  Qty 4 RES24 Qty 4 RED48  Qty 4 RED24 Qty 4 RET48  Qty 4 RET24
102 30″ Qty 4 RES48  Qty 4 RES30 Qty 4 RED48  Qty 4 RED30 Qty 4 RET48  Qty 4 RET30
102 3′ Qty 4 RES48  Qty 4 RES36 Qty 4 RED48  Qty 4 RED36 Qty 4 RET48  Qty 4 RET36
102 4′ Qty 8 RES48 Qty 8 RED48 Qty 8 RET48
108 2′ Qty 4 RES48 Qty 2 RUS06 Qty 4 RES24 Qty 4 RED48 Qty 2 RUD06 Qty 4 RED24 Qty 4 RET48 Qty 2 RUT06 Qty 4 RET24
108 30″ Qty 4 RES48 Qty 2 RUS06 Qty 4 RES30 Qty 4 RED48 Qty 2 RUD06 Qty 4 RED30 Qty 4 RET48 Qty 2 RUT06 Qty 4 RET30
108 3′ Qty 4 RES48 Qty 2 RUS06 Qty 4 RES36 Qty 4 RED48 Qty 2 RUD06 Qty 4 RED36 Qty 4 RET48 Qty 2 RUT06 Qty 4 RET36
108 4′ Qty 8 RES48 Qty 2 RUS06 Qty 8 RED48 Qty 2 RUD06 Qty 8 RET48 Qty 2 RUT06
114 2′ Qty 4 RES48 Qty 2 RUS12 Qty 4 RES24 Qty 4 RED48 Qty 2 RUD12 Qty 4 RED24 Qty 4 RET48 Qty 2 RUT12 Qty 4 RET24
114 30″ Qty 4 RES48 Qty 2 RUS12 Qty 4 RES30 Qty 4 RED48 Qty 2 RUD12 Qty 4 RED30 Qty 4 RET48 Qty 2 RUT12 Qty 4 RET30
114 3′ Qty 4 RES48 Qty 2 RUS12 Qty 4 RES36 Qty 4 RED48 Qty 2 RUD12 Qty 4 RED36 Qty 4 RET48 Qty 2 RUT12 Qty 4 RET36
114 4′ Qty 8 RES48 Qty 2 RUS12 Qty 8 RED48 Qty 2 RUD12 Qty 8 RET48 Qty 2 RUT12
120 2′ Qty 4 RES48 Qty 2 RUS18 Qty 4 RES24 Qty 4 RED48 Qty 2 RUD18 Qty 4 RED24 Qty 4 RET48 Qty 2 RUT18 Qty 4 RET24
120 30″ Qty 4 RES48 Qty 2 RUS18 Qty 4 RES30 Qty 4 RED48 Qty 2 RUD18 Qty 4 RED30 Qty 4 RET48 Qty 2 RUT18 Qty 4 RET30
120 3′ Qty 4 RES48 Qty 2 RUS18 Qty 4 RES36 Qty 4 RED48 Qty 2 RUD18 Qty 4 RED36 Qty 4 RET48 Qty 2 RUT18 Qty 4 RET36
120 4′ Qty 8 RES48 Qty 2 RUS18 Qty 8 RED48 Qty 2 RUD18 Qty 8 RET48 Qty 2 RUT18

SECTION BACKS USED WITH GRID RETAINERS

Section Height Section Width Slotgrid Multigrid Louvergrid MTK 1 Side MTK 2 Side
36 2′ RBE230SG RBE230MG RBE230LG RBE230M RBE230M2
36 30″ RBE3030SG RBE3030MG RBE3030LG RBE3030M RBE3030M2
36 3′ RBE330SG RBE330MG RBE330LG RBE330M RBE330M2
36 4′ RBE430SG RBE430MG RBE430LG RBE430M RBE430M2
42 2′ RBE236SG RBE236MG RBE236LG RBE236M RBE236M2
42 30″ RBE3036SG RBE3036MG RBE3036LG RBE3036M RBE3036M2
42 3′ RBE336SG RBE336MG RBE336LG RBE336M RBE336M2
42 4′ RBE436SG RBE436MG RBE436LG RBE436M RBE436M2
48 2′ RBE242SG RBE242MG RBE242LG RBE242M RBE242M2
48 30″ RBE3042SG RBE3042MG RBE3042LG RBE3042M RBE3042M2
48 3′ RBE342SG RBE342MG RBE342LG RBE342M RBE342M2
48 4′ RBE442SG RBE442MG RBE442LG RBE442M RBE442M2
54 2′ RBE248SG RBE248MG RBE248LG RBE248M RBE248M2
54 30″ RBE3048SG RBE3048MG RBE3048LG RBE3048M RBE3048M2
54 3′ RBE348SG RBE348MG RBE348LG RBE348M RBE348M2
54 4′ RBE448SG RBE448MG RBE448LG RBE448M RBE448M2
60 2′ RBE254SG RBE254MG RBE254LG RBE254M RBE254M2
60 30″ RBE3054SG RBE3054MG RBE3054LG RBE3054M RBE3054M2
60 3′ RBE354SG RBE354MG RBE354LG RBE354M RBE354M2
60 4′ RBE454SG RBE454MG RBE454LG RBE454M RBE454M2
66 2′ RBE260SG RBE260MG RBE260LG RBE260M RBE260M2
66 30″ RBE3060SG RBE3060MG RBE3060LG RBE3060M RBE3060M2
66 3′ RBE360SG RBE360MG RBE360LG RBE360M RBE360M2
66 4′ RBE460SG RBE460MG RBE460LG RBE460M RBE460M2
72 2′ RBE266SG RBE266MG RBE266LG RBE266M RBE266M2
72 30″ RBE3066SG RBE3066MG RBE3066LG RBE3066M RBE3066M2
72 3′ RBE366SG RBE366MG RBE366LG RBE366M RBE366M2
72 4′ RBE466SG RBE466MG RBE466LG RBE466M RBE466M2
78 2′ RBE272SG RBE272MG RBE272LG RBE272M RBE272M2
78 30″ RBE3072SG RBE3072MG RBE3072LG RBE3072M RBE3072M2
78 3′ RBE372SG RBE372MG RBE372LG RBE372M RBE372M2
78 4′ RBE472SG RBE472MG RBE472LG RBE472M RBE472M2
84 2′ RBE278SG RBE278MG RBE278LG RBE278M RBE278M2
84 30″ RBE3078SG RBE3078MG RBE3078LG RBE3078M RBE3078M2
84 3′ RBE378SG RBE378MG RBE378LG RBE378M RBE378M2
84 4′ RBE478SG RBE478MG RBE478LG RBE478M RBE478M2
90 2′ RBE284SG RBE284MG RBE284LG RBE284M RBE284M2
90 30″ RBE3084SG RBE3084MG RBE3084LG RBE3084M RBE3084M2
90 3′ RBE384SG RBE384MG RBE384LG RBE384M RBE384M2
90 4′ RBE484SG RBE484MG RBE484LG RBE484M RBE484M2
96 2′ RBE290SG RBE290MG RBE290LG RBE290M RBE290M2
96 30″ RBE3090SG RBE3090MG RBE3090LG RBE3090M RBE3090M2
96 3′ RBE390SG RBE390MG RBE390LG RE390M RE390M2
96 4′ RBE490SG RBE490MG RBE490LG RBE490M RBE490M2
102 2′ Qty 2 RBE248SG Qty 2 RBE248MG Qty 2 RBE248LG Qty 2 RBE248M Qty 2 RBE248M2
102 30″ Qty 2 RBE3048SG Qty 2 RBE3048MG Qty 2 RBE3048LG Qty 2 RBE3048M Qty 2 RBE3048M2
102 3′ Qty 2 RBE348SG Qty 2 RBE348MG Qty 2 RBE348LG Qty 2 RBE348M Qty 2 RBE348M2
102 4′ Qty 2 RBE448SG Qty 2 RBE448MG Qty 2 RBE448LG Qty 2 RBE448M Qty 2 RBE448M2
108 2′ RBE248SG  RBE254SG RBE248MG  RBE254MG RBE248LG  RBE254LG RBE248M RBE254M RBE248M2 RBE254M2
108 30″ RBE3048SG  RBE3054SG RBE3048MG  RBE3054MG RBE3048LG  RBE3054LG RBE3048M RBE3054M RBE3048M2 RBE3054M2
108 3′ RBE348SG  RBE354SG RBE348MG  RBE354MG RBE348LG  RBE354LG RBE348M  RBE354M RBE348M2  RBE354M2
108 4′ RBE448SG  RBE454SG RBE448MG  RBE454MG RBE448LG  RBE454LG RBE448M  RBE454M RBE448M2  RBE454M2
114 2′ RBE248SG  RBE260SG RBE248MG  RBE260MG RBE248LG  RBE260LG RBE248M  RBE260M RBE248M2  RBE260M2
114 30″ RBE3048SG  RBE3060SG RBE3048MG  RBE3060MG RBE3048LG  RBE3060LG RBE3048M RBE3060M RBE3048M2 RBE3060M2
114 3′ RBE348SG  RBE360SG RBE348MG  RBE360MG RBE348LG  RBE360LG RBE348M  RBE360M RBE348M2  RBE360M2
114 4′ RBE448SG  RBE460SG RBE448MG  RBE460MG RBE448LG  RBE460LG RBE448M  RBE460M RBE448M2  RBE460M2
120 2′ RBE248SG  RBE266SG RBE248MG  RBE266MG RBE248LG  RBE266LG RBE248M  RBE266M RBE248M2  RBE266M2
120 30″ RBE3048SG  RBE3066SG RBE3048MG  RBE3066MG RBE3048LG  RBE3066LG RBE3048M  RBE3066M RBE3048M2  RBE3066M2
120 3′ RBE348SG  RBE366SG RBE348MG  RBE366MG RBE348LG  RBE366LG RBE348M  RBE366M RBE348M2  RBE366M2
120 4′ RBE448SG  RBE466SG RBE448MG  RBE466MG RBE448LG  RBE466LG RBE448M  RBE466M RBE448M2  RBE466M2

T-Leg Caster Base Set (2-Sided)

Product Details

  • Converts Display Shelving Island into a mobile display
  • Available run lengths up to 12’ long (3’ & 4’ combinations)
  • 2” sq. Tubular Legs with 3” diameter Caster



COMPONENTS (ORDERED SEPARATELY)

  • 2 Caster T-Legs
  • 1 Lower Spanner
  • 1 Top Stabilizer





View product details

Product Options and Numbers

T-Leg Caster Base Set (2 Sided)

Section Width: 36″, 48″

T-Leg Depth: 13″, 16″, 19″, 22″

Lower Spanner and Top Stabilizer Standard Finish: PLT, Optional Catalog Colors

Leg Standard Finish: PLT, Optional Catalog Colors

Black Plastic Cap: XH5

Suffix Key
PLT – Platinum
XH5 – Black Plastic Cap
 ISLAND
Caster T-Leg Depth
(Both Sides)
 Max. Uprite Height
13″ 78″
16″ 96″
19″ 96″
22″ 96″

Uprite

Product Details

  • 3/16” thick face channel
  • 1” slotted on center for maximum flexibility
  • Use for Wall and Island Sections
  • Steel welded construction
  • Includes side flanges to retain Back material, leveling leg for uneven floors
  • Includes Top Caps on Uprites 36”-66”H

uprite diagram

View product details

Product Options and Numbers

Example Part #:   U   42    PLT



Uprite: U, UH

U Height: 30”, 36”, 42”, 48”, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

UH Height: 72”, 78”, 84”, 90”, 96”, 108”, 120”

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
U – Uprite
UH – Heavy Duty Uprite

T-Leg Uprite End Trim

Product Details

One-piece trim snaps into first and last Uprite or Extension Uprite in a run

View product details

Product Options and Numbers

Example Part #:   CD412   8    PLT



T-Leg Uprite End Trim: CD412

Height: 48″, 54”, 60”, 66”, 72”, 78”, 84”, 90”, 96”, 102”, 108”, 114”, 120”

Standard Finish:  PLT, Optional Catalog Colors

T-Leg Uprite End Trim
Part Number
 Uprite Height
CD4127 48″
CD4123 54″
CD4128 60″
CD4124 66″
CD4122 72″
CD41212 78″
CD4121 84″
CD41216 90″
CD41211 96″
CD41225 102″
CD41221 108″
CD41215 114″
CD41213 120″
Suffix Key
PLT – Platinum

Recommended Products
