Cube Saver® Uprite Frames

Part Number: CSU

Cube Saver® Uprite Frames

Part Number: CSU

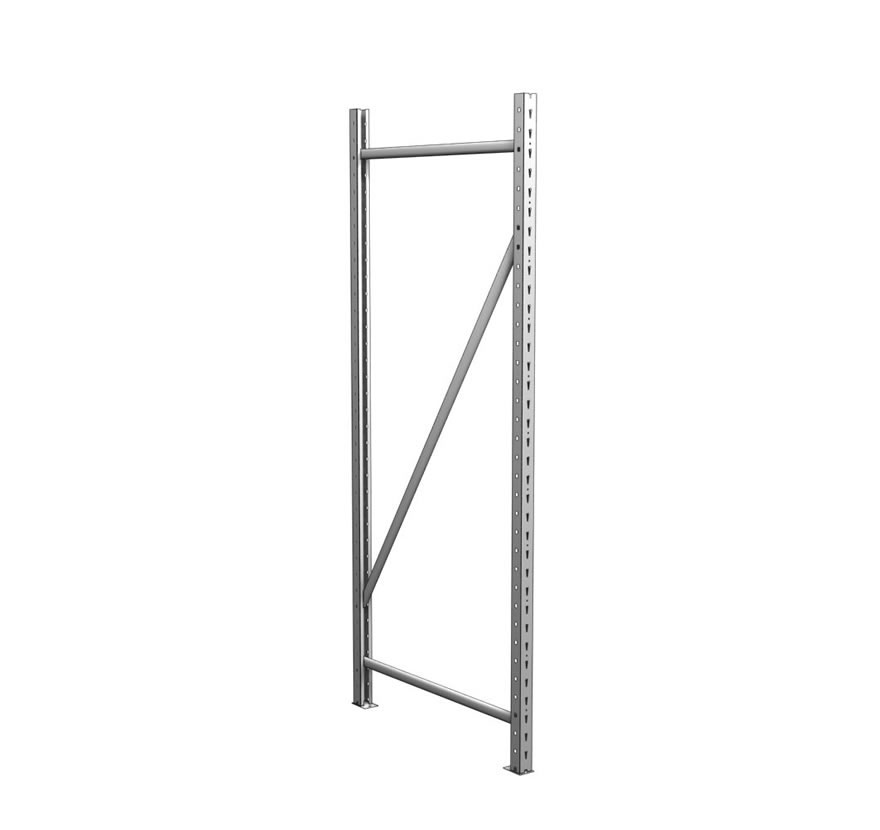

Industrial Shelving Cube Saver Uprite Frames Lozier
  • Industrial Shelving Cube Saver Uprite Frames Lozier
  • Industrial Shelving Widespan Uprite Frame Detail

Roll over image to zoom in.

Contact to Order
Download PDF Print Email Installation Instructions

Product Details

  • Uprite post slotted on face, allows shelf adjustment of 2″ on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6″ on center on face of Uprite aid beam placement
  • Each Uprite Includes 1 Top Cap
  • Requires one Frame for each section, plus one at end of each run
  • One-piece Uprite Frames for 72″ – 120″ (for taller Uprites contact Product Management)
  • Welded Footplate for anchoring: 1/2″ hole
  • May require Back-to-Back Connectors
  • Evenly distributed load of 10,000 lbs (per Uprite Frame at 48″ max. vertical Beam spacing)

Product Options and Numbers

Example Part #:   CSU   12   072   PLT



Cube Saver® Uprite: CSU

Section Depth: 12″, 18″, 24″, 30″

Height: 072″, 084″, 096″, 108″, 120″

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
