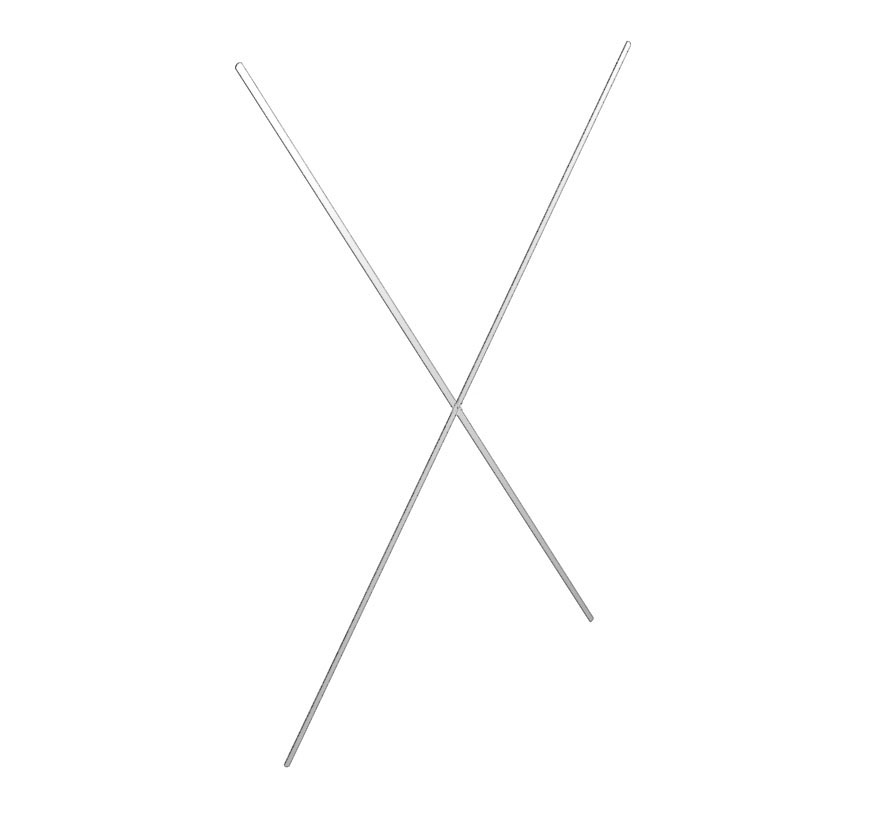

S-Series Storage Crossbrace

Part Number: SSX

S-Series Storage Crossbrace

Part Number: SSX

Product Details

  • S-Series Storage Sections must be stabilized with either Crossbraces or Back Panels
  • Crossbraces (or Back Panels) are required on end sections of each run and every fourth section in between for stabilization
  • See diagram below for minimum recommended placement of Crossbraces per run
  • Back-to-back runs can share Crossbraces if Uprites are securely connected with S-Series Storage Screws (#SS2221)
  • If section height is over 96″, the part number below includes two sets of Crossbraces for the section (one lower and one upper Crossbrace)

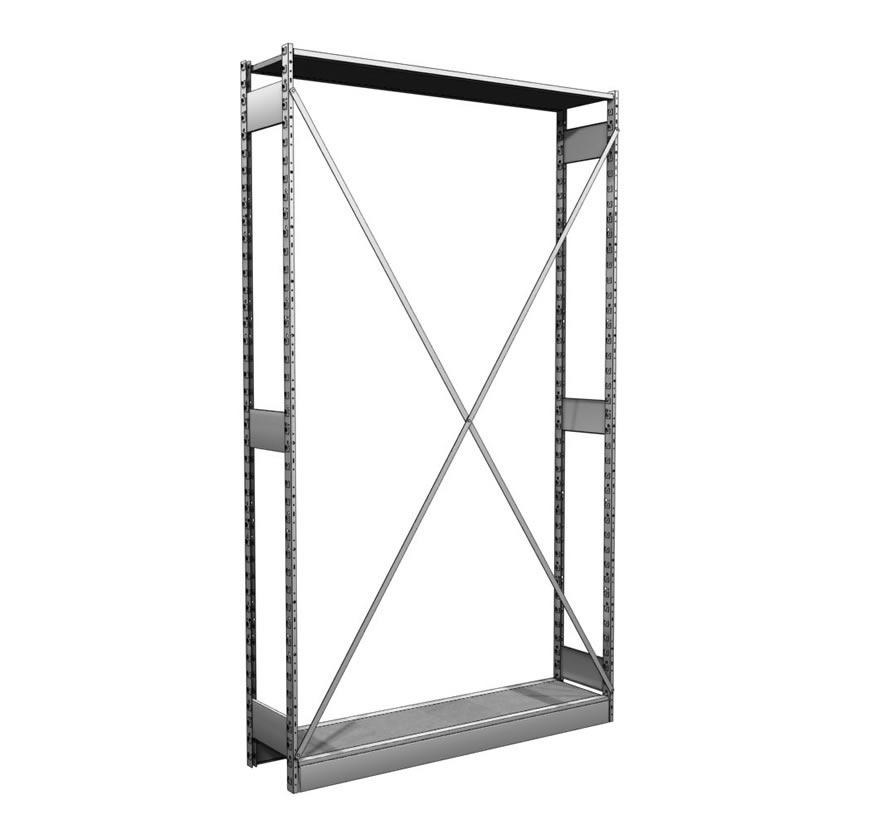

MINIMUM BRACING REQUIREMENTS DIAGRAM

crossbrace diagram

Industrial-Shelving-S-Series-Storage-Shelving-Crossbraces-Lozier

Product Options and Numbers

Example Part #:   SSX   4   48   R   GLV



S-Series Crossbrace: SSX

Section Width: 3′, 4′

Section Height: 36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″, 144″

Bracing Type: R, H

Standard Finish: GLV

Suffix Key
R – Regular Duty Crossbrace
H – Heavy Duty Crossbrace
GLV – Galvanized
