Widespan Shelf Assembly

The Widespan Shelf Assembly is available in two types: Particleboard and Wiregrid.

Widespan Shelf Assembly

The Widespan Shelf Assembly is available in two types: Particleboard and Wiregrid.

Product Details

  • Available in two types: Particleboard and Wire Grid
  • Available in Regular and Heavy Duty
  • Load capacity per pair of Beams with appropriate Shelf Supports and uniformly distributed load:
    • Regular Duty: 1,600-3,000 lbs
    • Heavy Duty: 3,000 lbs max

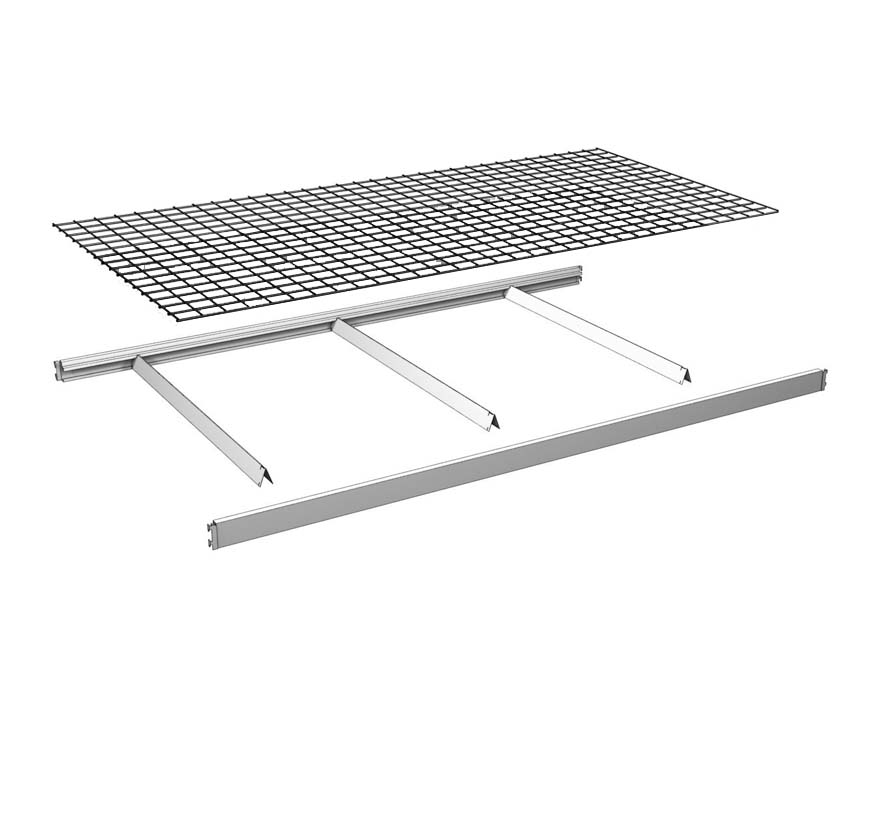

Widespan-Shelf-Assembly-Labeled-Lozier



INCLUDES:

A – Widespan Beam (2 included)
B – Widespan Shelf: Particleboard or Wire Grid (1 included)
C – Widespan Shelf Support (See load chart below for quantity)

 WIDESPAN SHELF CAPACITY (Uniformly Distributed Load, lbs)
Section Depth  Section Width
(Beam Length)
# of Regular Duty Shelf Supports With Regular Duty Beams # of Heavy Duty Shelf Supports with Heavy Duty Beams
2 3 4
Up to 36″ D     48″ 1,600 2,400 3,000 3,000
60″ 1,600 2,400 2,400 3,000
72″ 1,600 2,000 2,400 3,000
84″ 1,600 1,800 2,000 3,000
96″ 1,600 1,600 1,600 3,000
42″ D

48″ 1,370 2,055 2,740 3,000
60″ 1,370 2,055 2,400 3,000
72″ 1,370 2,000 2,200 3,000
84″ 1,370 1,800 1,600 3,000
96″ 1,370 1,600 1,600 3,000
Up to 48″ D
48″ 1,200 1,800 2,400 3,000
60″ 1,200 1,800 2,400 3,000
72″ 1,200 1,800 2,000 3,000
84″ 1,200 1,700 1,800 3,000
96″ 1,200 1,600 1,600 3,000



Product Options and Numbers

Widespan Shelf Assembly



Shelf Type : Particleboard or Wiregrid

Section Depth: 18”, 24”, 30”, 36”, 42”, 48”

Section Width: 48”, 60”, 72”, 84”, 96”

Number of Shelf Supports: 2, 3, 4, (see above Load Chart)

Beam & Shelf Support Style: RD, HD

Beam Standard Finish: PLT, Optional Catalog Colors

Shelf Support Standard Finish: PLT, Optional Catalog Colors

Shelf Standard Finish: N/A, S04, ZNC



Suffix Key
RD -Regular Duty
HD -Heavy Duty
PLT -Platinum
N/A -No Finish
S04 -Seal Coated
ZNC -Zinc Wire Grid
