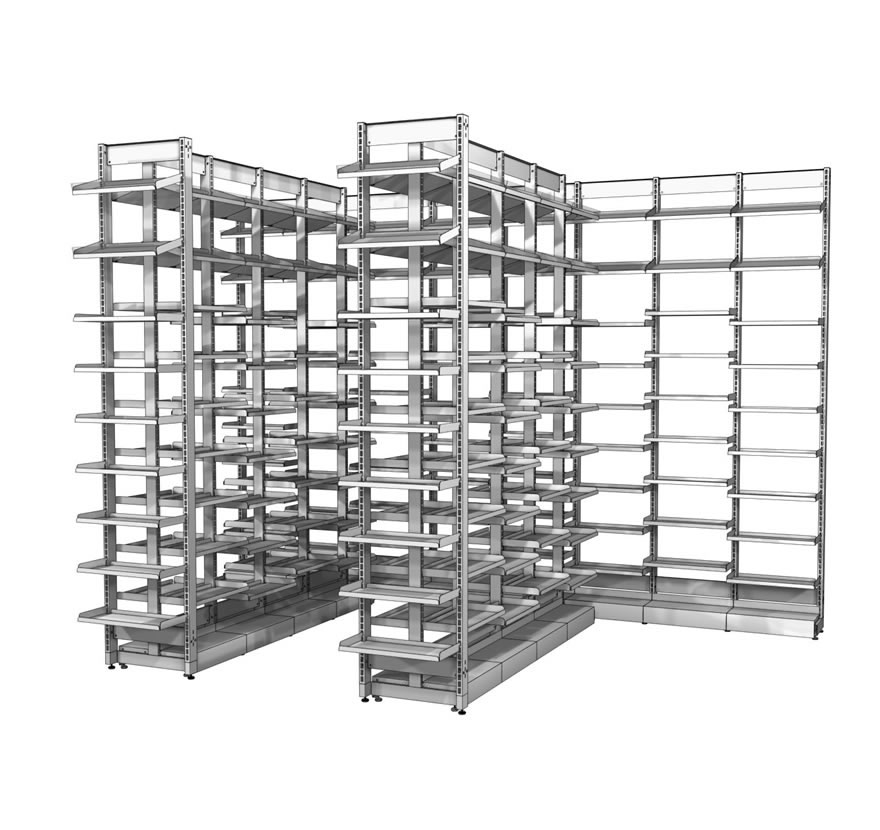

Flex Rx Storage System

Flex Rx features an open back system for better visibility. Shelves install in two positions – flat or 17° downslant – and have a full lip for repositioning shelves with merchandise. Uprite has 1″ slot spacing for flexible reconfigurations.

Flex Rx Storage System

Flex Rx features an open back system for better visibility. Shelves install in two positions – flat or 17° downslant – and have a full lip for repositioning shelves with merchandise. Uprite has 1″ slot spacing for flexible reconfigurations.

Product Details

  • 1” slot spacing

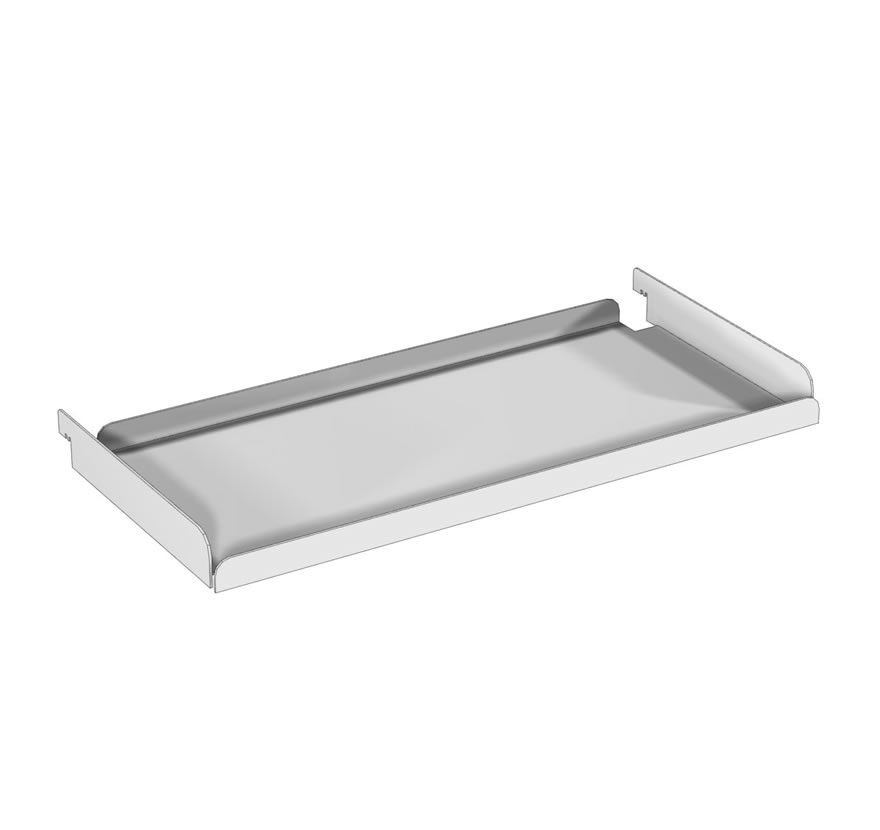

  • Shelves install in two positions: flat and 17° downslant
  • Shelf features an upturned lip on all sides for easy repositioning of Shelves with merchandise
  • Has open back system for better visibility



SIZE INFORMATION

  • Shelf depth: 7 1/4”
  • Height: 84”
  • Overall length without End Frame equals sum of section widths plus 1” to account for Uprite width
  • Add 8 1/2” for each End Frame with Shelves
  • Add 3/4” for each wood End Panel
  • Overall depth: Wall section: 8 1/2” Island section: 15”

How to Order

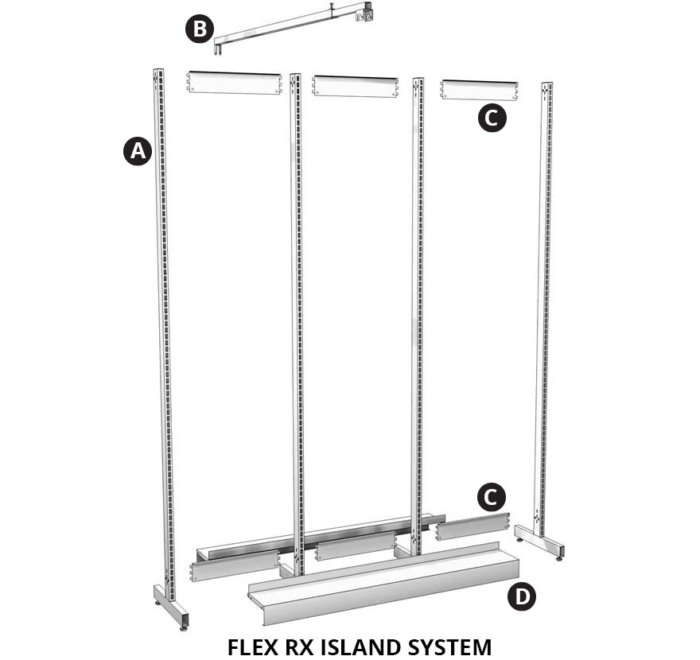

Pharmacy-Shelving-Flex-RX-Sections-Island-Exploded3-Lozier

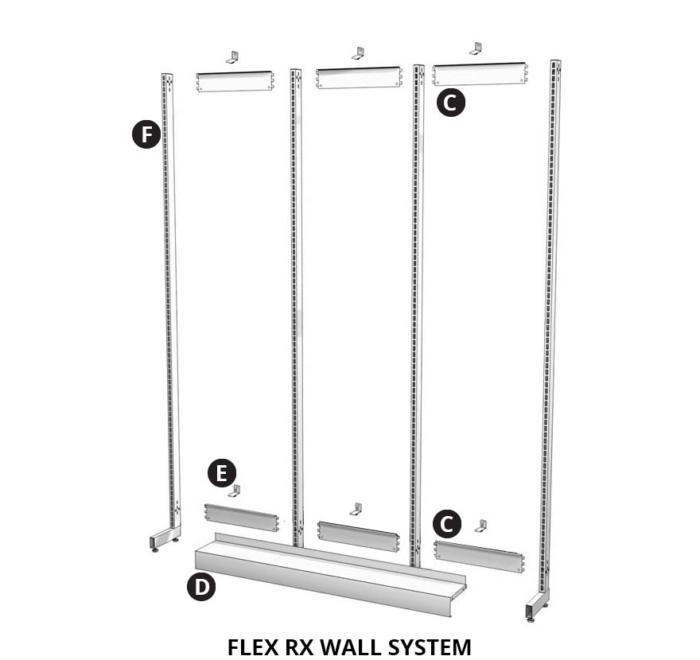

Pharmacy-Shelving-Flex-RX-Sections-Wall-Exploded3-Lozier

COMPONENTS (ORDER SEPARATELY):

A – Flex Rx Storage System Uprite (island sections require T-Uprites: 1 per section + 1 at end)
B – Flex Rx Storage System Overhead Brace (island sections require 1 every other uprite)
C – Flex Rx Storage System Stretcher (2 required per section)
D – Flex RX Storage System Base Shelf (optional)
E – Flex Rx Storage System Wall Mount Clip (wall sections require 2 per section)
F – Flex Rx Storage System Uprite (wall sections require L-Uprites: 1 per section + 1 at end)

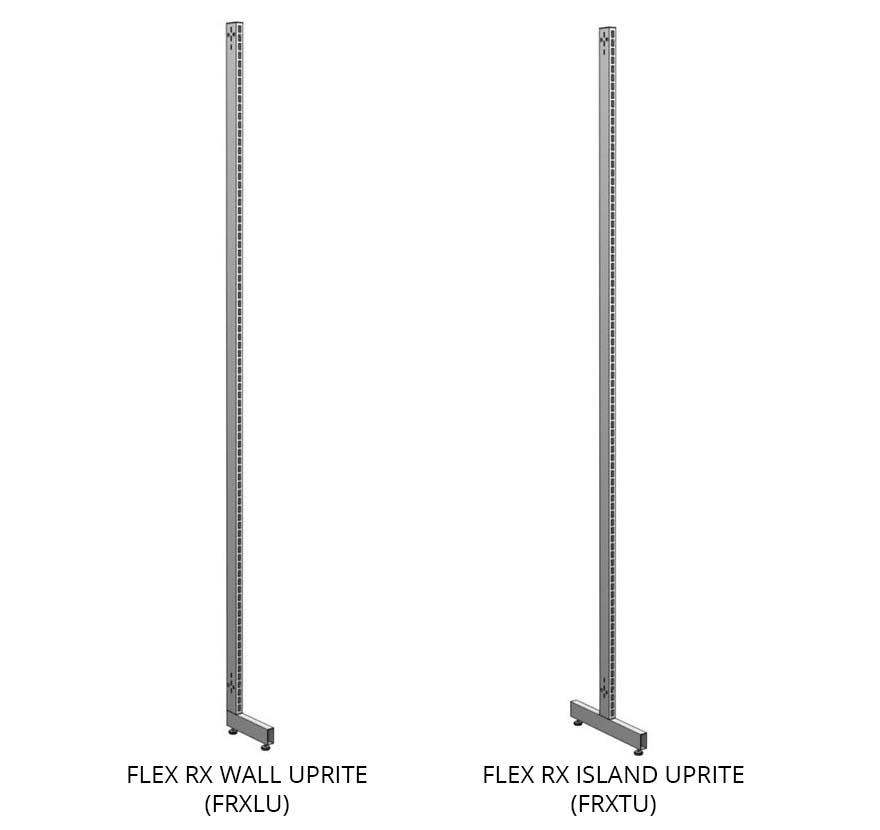

Flex Rx Storage System Uprite

Product Details

  • Order T-Uprites for island sections and L-Uprites for wall sections
  • 1” x 2” tubing
  • T-Uprite leg depth: 15”
  • L-Uprite leg depth: 8 1/2”
  • Slotted on 1” centers
  • Leveling legs included
  • Accepts only Flex Rx brackets
  • If floor anchors are needed, use Uprite Anchor Plate (DC1241) or Base Bracket Anchor Plate (DC1242)
View product details

Product Options and Numbers

Example Part #:   FRX   LU   84   09   WHT



Flex Rx System: FRX

Uprite style: LU, TU

Height: 84″

Depth:  9″ (LU only), 16″ (TU only)

Standard Finish:  WHT

Suffix Key
LU – L Uprite (for wall sections)
TU – T Uprite (for island sections)
WHT – White

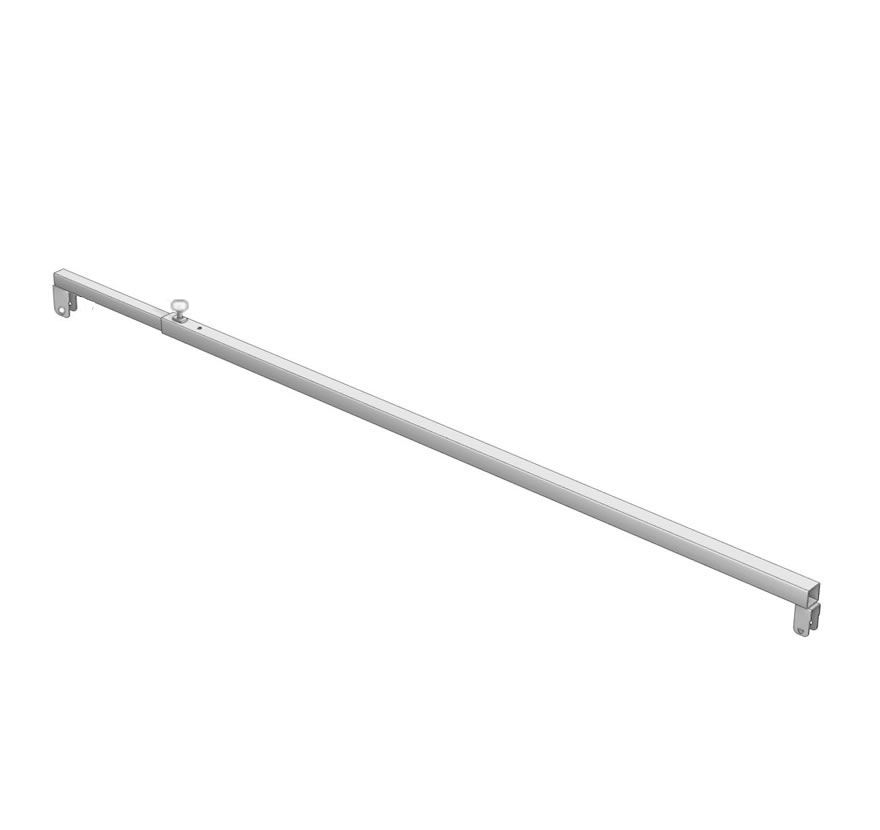

Flex Rx Storage System Overhead Brace

Product Details

  • Tubular supports snap into top of Uprite or over Stretcher
  • Adjusts 48” – 72”L
  • Required at every other Uprite
  • Should be braced to Wall Sections if possible


RECOMMENDED LOCATIONS FOR OVERHEAD BRACES:

Overhead Brace Diagram

Save

View product details

Product Options and Numbers

Example Part #:   FRX   OB4872S   WHT



Flex Rx System: FRX

Overhead Brace:  OB4872S, OB4872

Standard Finish:  WHT

Suffix Key
OB4872S – Uprite to Stretcher Overhead Brace
OB4872 – Uprite to Uprite Overhead Brace
WHT – White

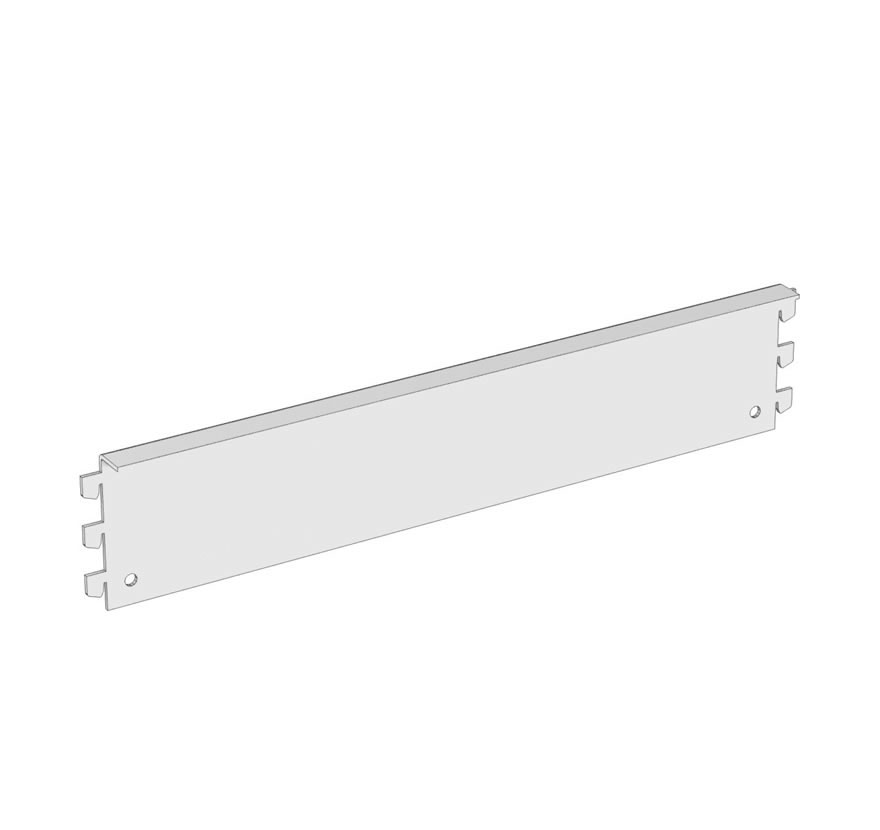

Flex Rx Storage System Stretchers

Product Details

  • Placed at top and bottom of each section to join Uprites
  • Snap in design
View product details

Product Options and Numbers

Example Part #:   FRXST   16   WHT



Flex Rx Stretcher: FRXST

Width:  16″, 32″, 36″, 48″

Standard Finish:  WHT

Suffix Key
WHT – White

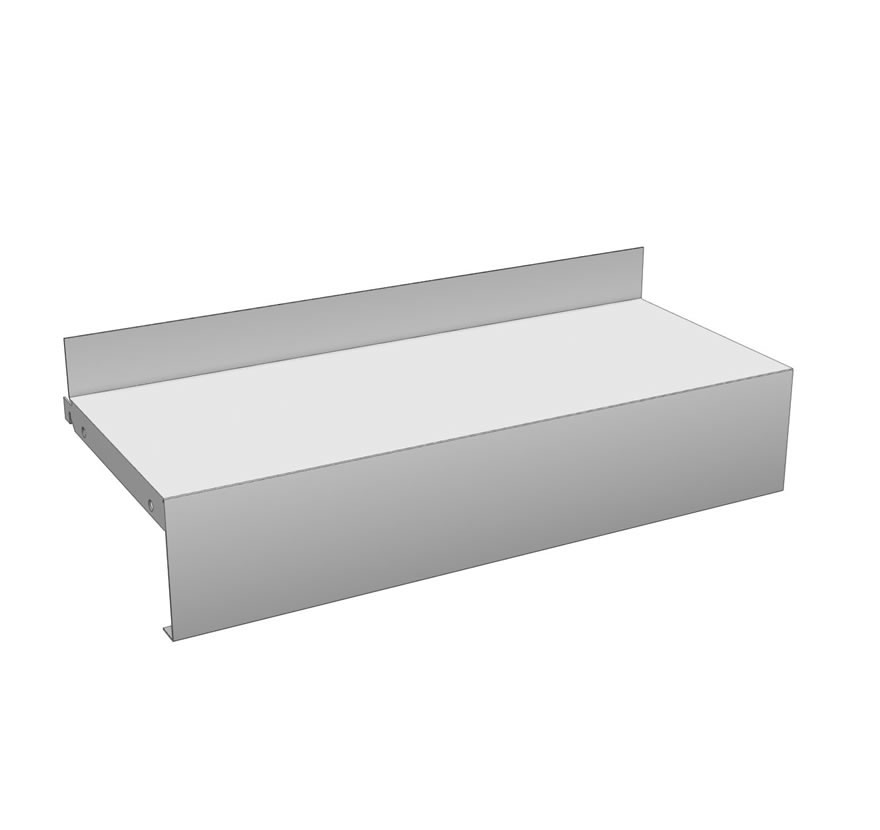

Flex Rx Storage System Base Shelf

Product Details

  • Base height: 3 1/4”
  • Actual Depth of Base Shelf is 6 3/8”
  • Integrated Base Shelf and Kick Plate
  • Base Shelf can span multiple sections to reduce cost:
    • Example: one 48” Base Shelf can be used with three 16” sections
View product details

Product Options and Numbers

Example Part #:   FRXBS   16   07   WHT



Flex Rx Base Shelf: FRXBS

Width: 16″, 32″, 36″, 48″

Depth: 07

Standard Finish:  WHT

Suffix Key
WHT – White

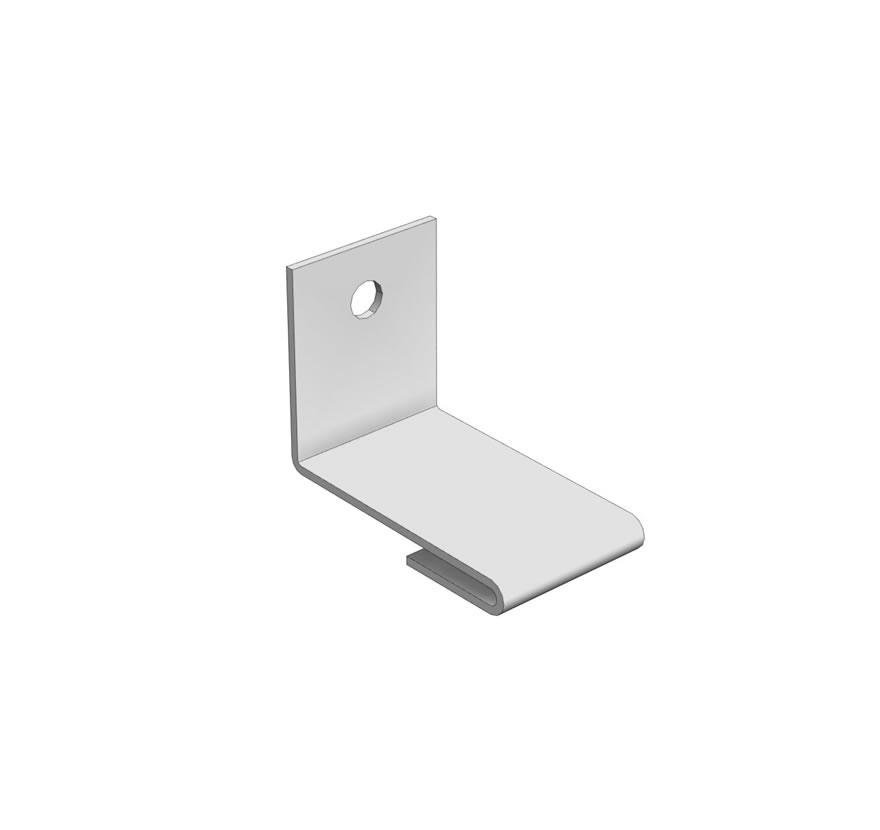

Flex Rx Storage System Wall Mount Clip

Product Details

  • Attaches Wall Units to building wall
  • Hooks onto Stretcher
  • Two required per section
  • Fasteners not included
View product details

Product Options and Numbers

Part #:   FRX   WMC   GLV



Flex Rx System: FRX

Wall Mount Clip:  WMC

Standard Finish:  GLV

Suffix Key
GLV – Galvanized
