Four Way Displayer

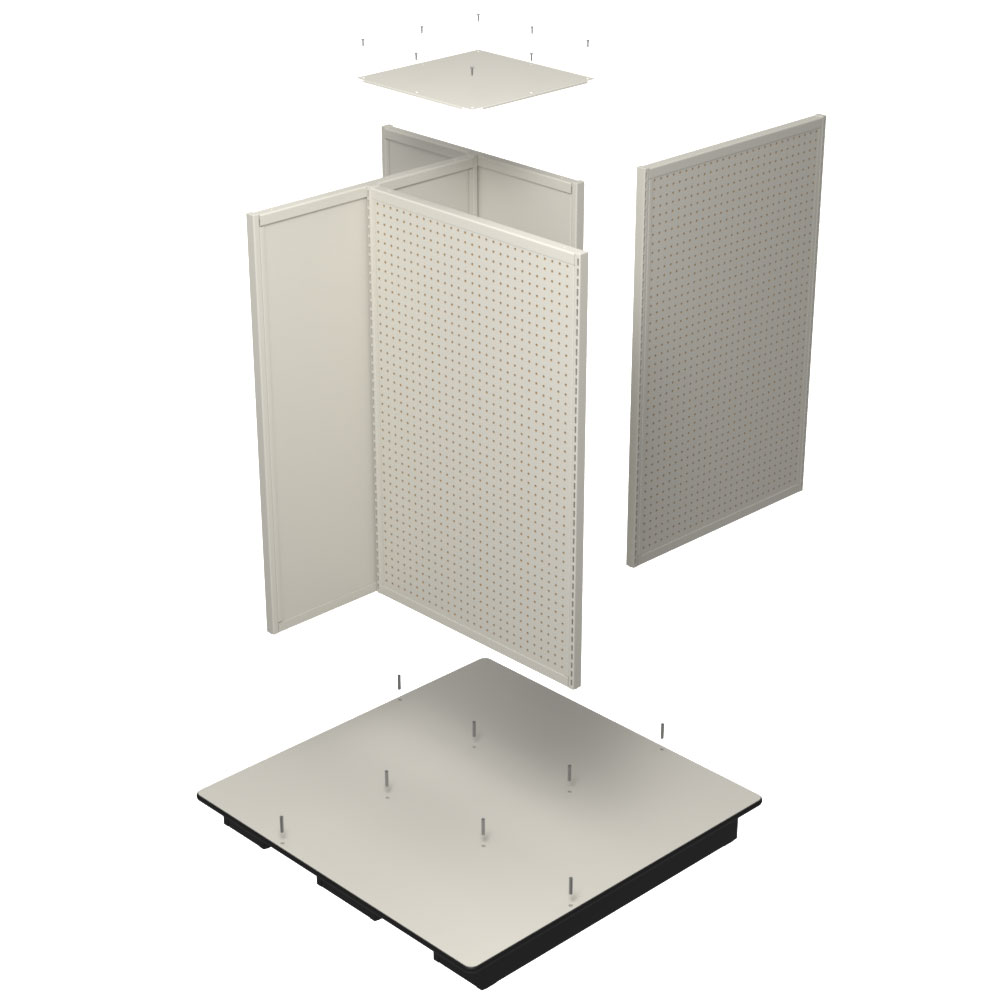

Four Way Displayer – Components
Four Way Displayer
Part Number: FWD

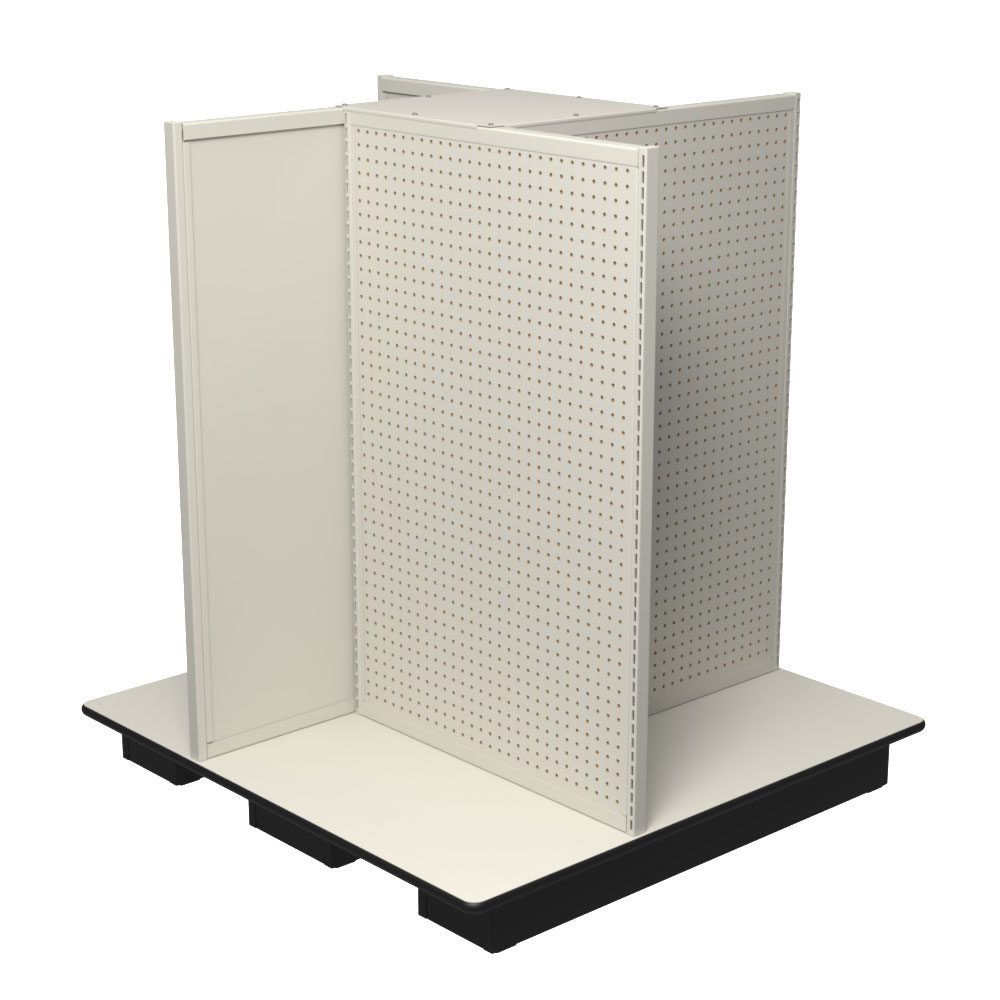

Four Way Displayer with pallet-jack-accessible wood base
Product Details:
- Wood Base with Pallet Jack Access
- Wood Base edged with black T-Molding
- Slotted Steel Frames accept all Lozier Shelves and Accessories
- Evenly distributed load of 300 lbs per Panel, 1,000 lbs total unit load capacity
- Order Shelves separately, see size chart below
- Order four respective width Panels for base size shown on chart (available heights 54″ or 60″)
- Order one Base per unit (includes top cover)
Offset
Panel
Panel
Width
Base
Dimensions
Max. Shelf
Depth
Y
24″
38″ x 38″
10″
Y
30″
47″ x 47″
13″
Y
36″
56″ x 56″
16″
Four Way Display Panel
Example Part #: FWDP5424PM.29T
Four Way Display Panel: FWDP
Height: 54″, 60″
Panel Width: 24″, 30″, 36″
Ext Panel: P (Peg)
Int Panel: M (Mtk)
Frame Standard Finish: 29T, Optional Catalog Colors
Four-Way Pallet Jack Base
Example Part #: FWDBP47.2FP
Four Way Display Base Pallet Jack: FWDBP
Size (Sq.): 38″, 47″, 56″
Frame Standard Finish: 2FP, 2HY Optional Catalog Colors
Codes
29T
PLT Exterior, PLT Interior, PLT Frame
2HY
MA1 Top, PLT Top Cover, CHR Base
2FP
LAX Top, PLT Top Cover, CHR Base
CHR
Charcoal Black
VB2
Black T-Molding
MA1
Platinum Melamine
LAX
Platinum Laminate
PLT
Platinum
