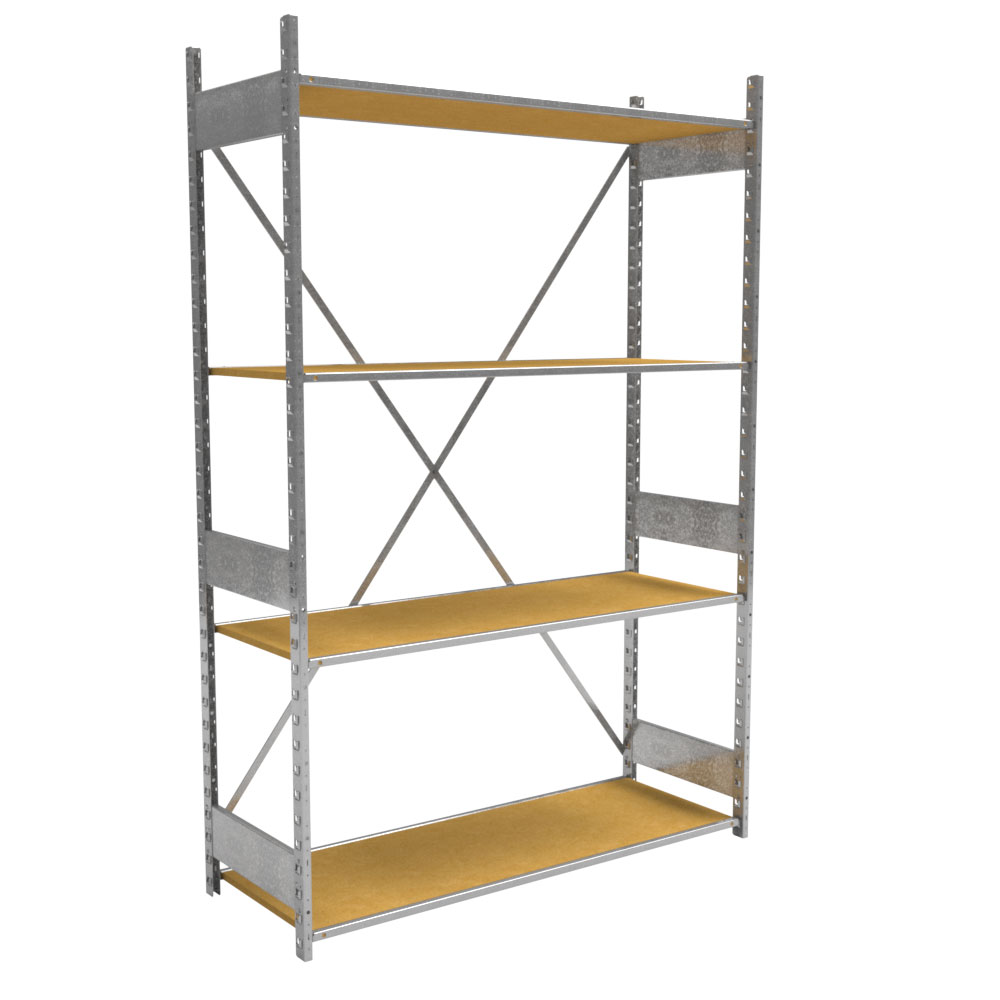

S-Series Storage

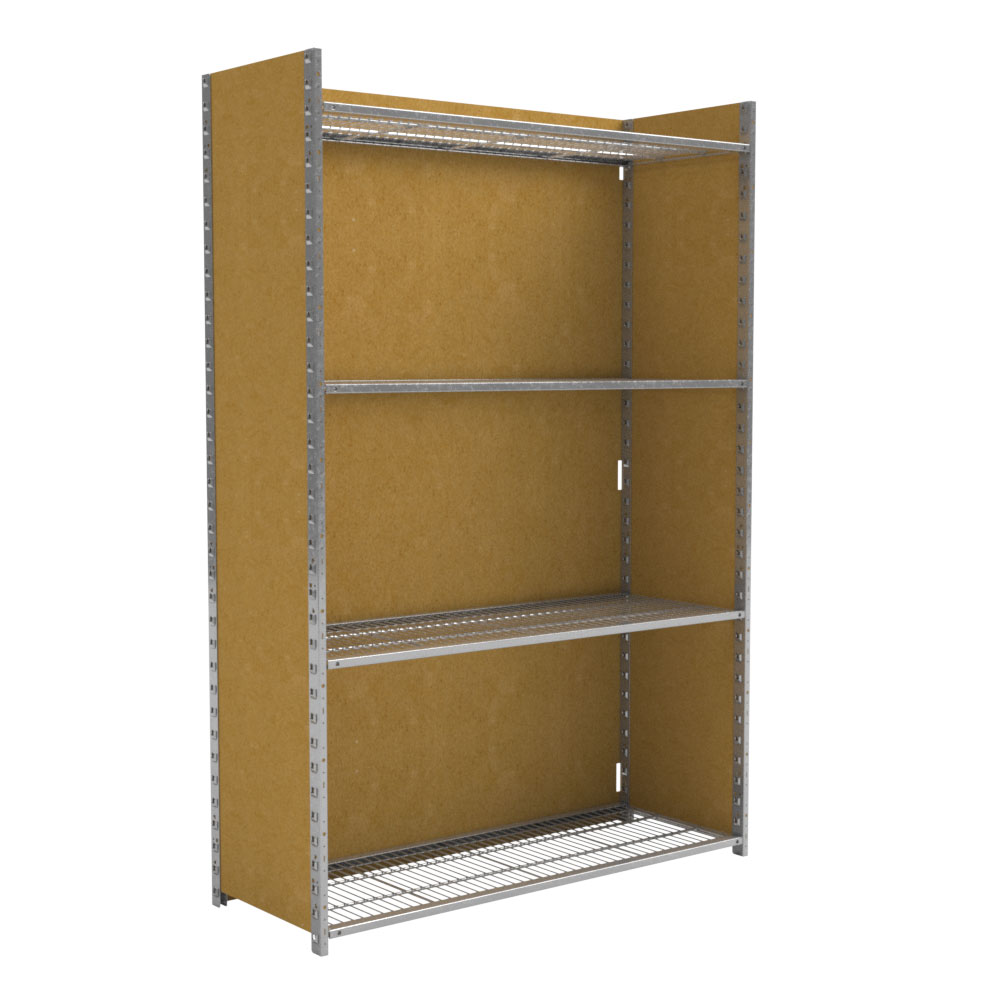

S-Series Storage – Closed Unit

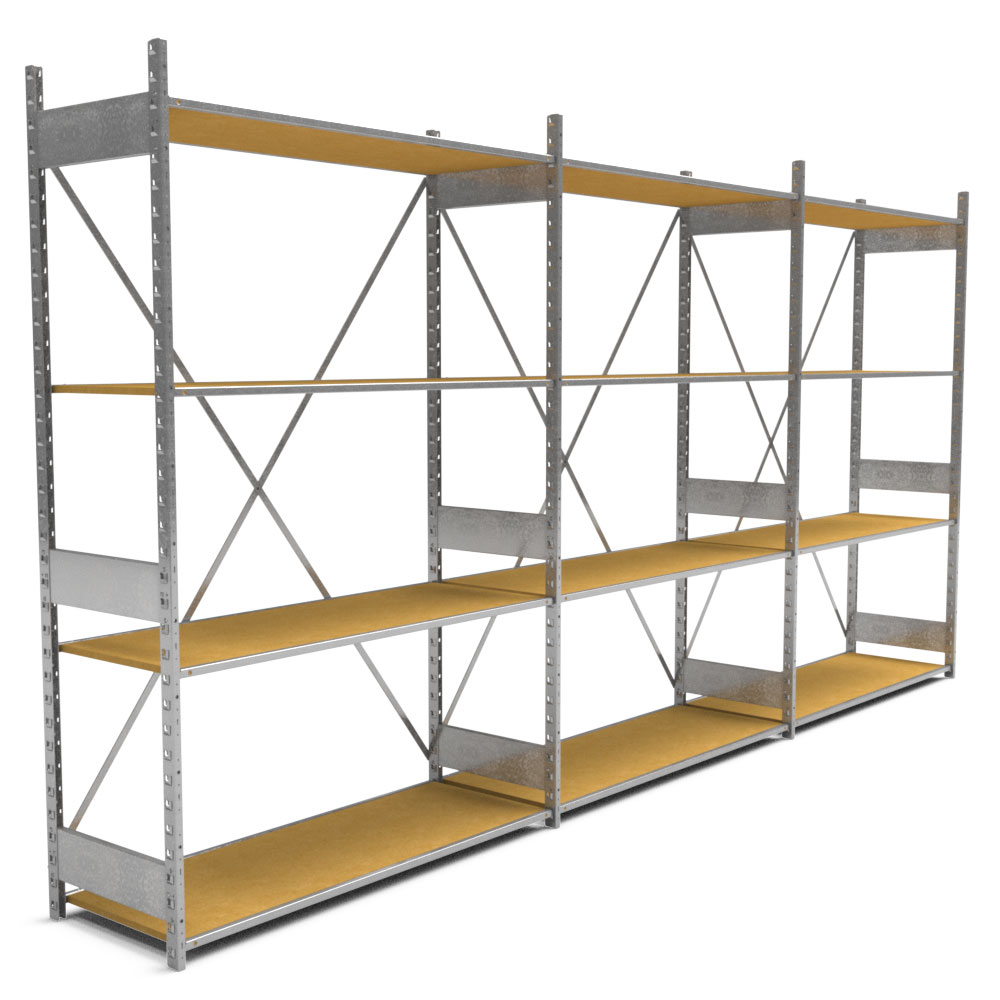

S-Series Storage – Run
Product Details
- Integrated wood and steel construction for strength and economy
- Pre-assembled all steel Uprites, one-piece Shelves, and Crossbraces for easy installation (Open Uprite Pat. # 6,085,918)
- Particleboard Shelves are reinforced with steel channels front and back
- Standard Finish: GLV (Galvanized) unless otherwise noted
Size Information
- Clear opening between posts: nominal shelf width minus 1 1/4”
- Overall length of continuous run: the sum of the nominal section widths plus 1 1/4” to account for end posts
- Overall depth equals the nominal depth
- Vertical clearance between shelves equals the center-to-center shelf spacing minus 3/4”
- Vertical adjustment 2” on centers
Downloads
Capacity Per Shelving Section
How to Order
S-SERIES STORAGE UPRITE (OPEN)
S-Series Storage Uprite Assemblies are galvanized metal and come in two styles, open and closed.

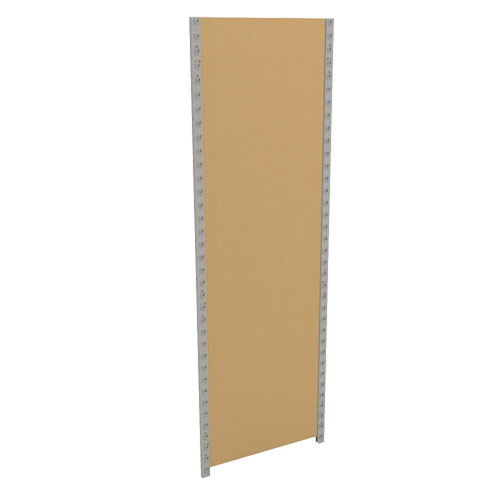

S-SERIES STORAGE UPRITE (CLOSED)
S-Series Storage Uprite Assemblies are galvanized metal and come in two styles, open and closed.
S-SERIES STORAGE CROSSBRACE
S-Series Storage Crossbraces are used to stabilize the S-Series Storage Shelving
S-SERIES STORAGE SHELF (PARTICLEBOARD)
S-Series Storage Shelves are available in three versions: Regular Duty Particleboard, Heavy Duty Particleboard, and Wire Grid.

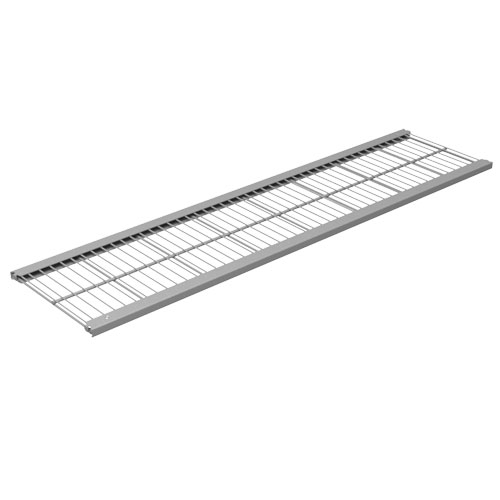

S-SERIES STORAGE SHELF (WIRE GRID)
S-Series Storage Shelves are available in three versions: Regular Duty Particleboard, Heavy Duty Particleboard, and Wire Grid.
S-SERIES STORAGE BACK PANEL
S-Series Back Panel can be used to stabilize S-Series Shelving. Use on back of section to create a closed or “closet” section.
Components (order Separately)
Stabilization Requirements Diagram

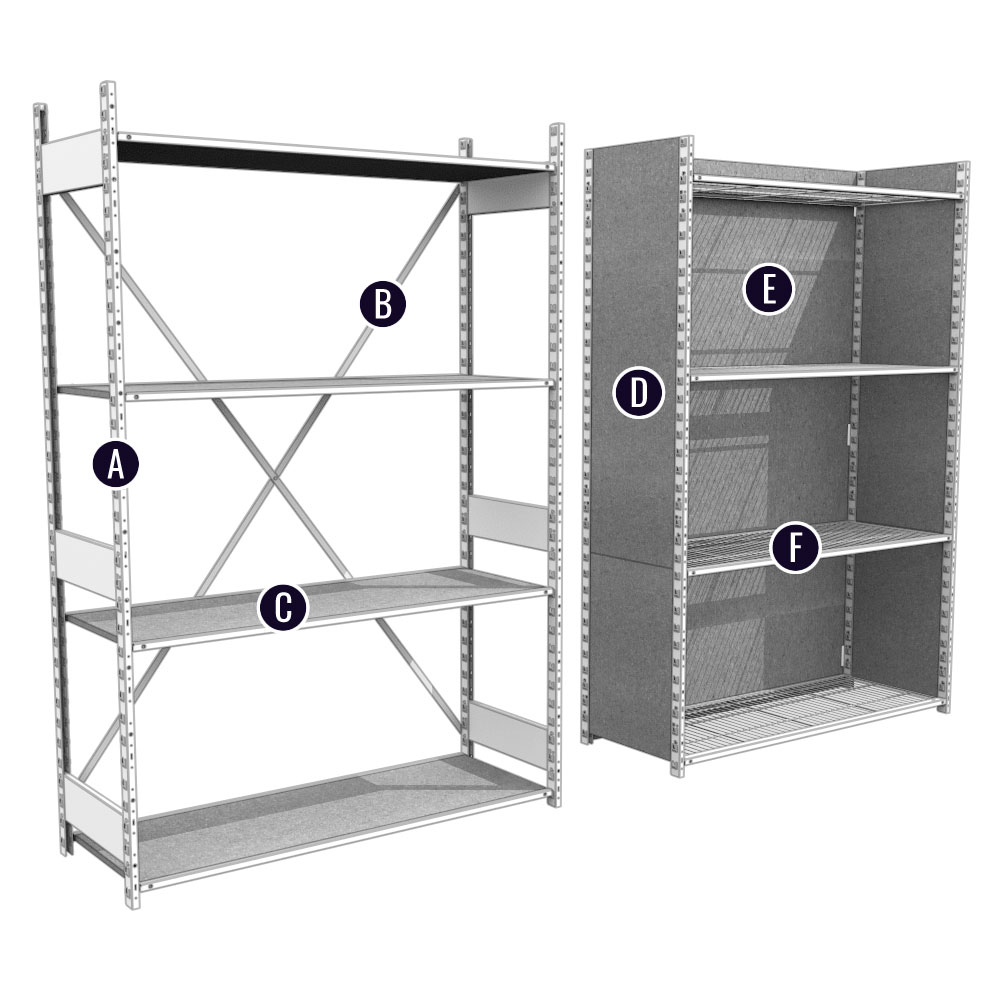

S-Series Storage Components
Order Separately
S-Series Storage Accessories
Order Separately
